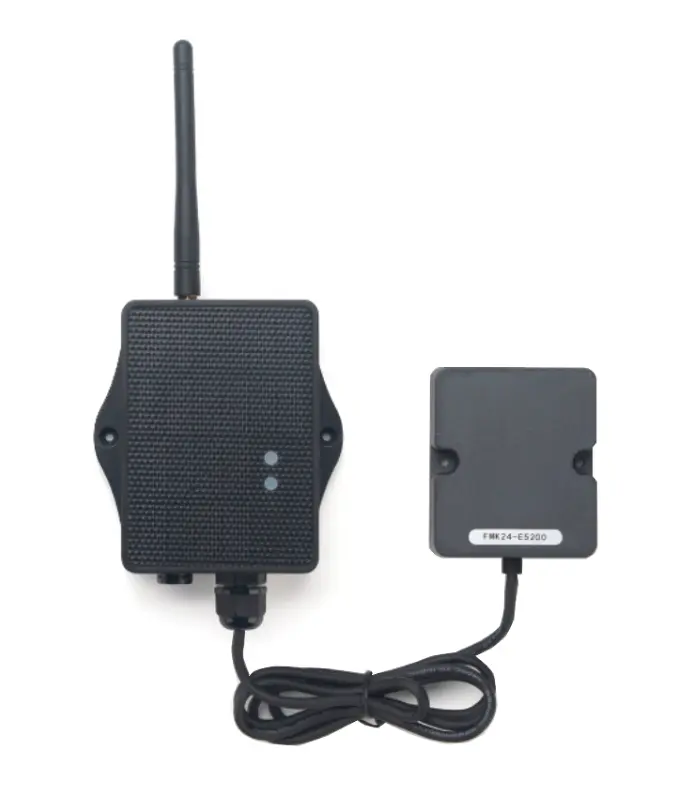

Dragino MDS200-LS Solar LoRaWAN Microwave Radar Distance Sensor

https://www.aiotkart.com/web/image/product.template/17721/image_1920?unique=7d7f462

Dragino MDS200-LS is an EOL solar-powered LoRaWAN® microwave radar distance sensor designed for remote distance, level and object detection applications. It uses 24 GHz FMCW microwave radar technology to measure distances from 0.5 m to 20 m with ±0.1 m accuracy and 0.01 m resolution, while supporting reliable sensing in environments affected by condensation, water or heavy dust. The MDS200-LS supports LoRaWAN 1.0.3 Class A communication, configurable distance alarms, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 frequency support, it has been used for liquid-level monitoring, parking management, object presence detection, smart waste monitoring, sewer applications and industrial automation. Dragino currently lists the MDS200-LB/LS series as End of Life.

₹ 20,800.00 20800.0 INR ₹ 20,800.00

₹ 20,800.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 24GHz FMCW Microwave Radar technology
  • Measurement range: 0.5m to 20m
  • Accuracy: ±0.1m
  • Resolution: 0.01m
  • Dual-distance detection (nearest and second object)
  • Configurable alarm uplink mode
  • Measurement angle: 78° horizontal × 23° vertical
  • Reliable in condensation and dusty environments
  • Ultra-low power consumption
  • Integrated solar panel + 3000mAh Li-ion battery (MDS200-LS)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Periodic uplink transmission
  • Battery level monitoring
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Designed for long-term outdoor deployment

Radar Probe Specifications

  • Measuring Method: FMCW
  • Frequency: 24.000 ~ 24.500 GHz
  • Measurement Output Power: 6 dBm
  • Measurement Range: 0.5 ~ 20 m
  • Accuracy: ±0.1 m
  • Resolution: 0.01 m
  • Measurement Angle: 78° (H) × 23° (V)

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (MDS200-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Designed for autonomous long-term operation
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino MDS200-LS LoRaWAN® Microwave Radar Sensor is ideal for:

  • Water tank and liquid level monitoring
  • Bottom water level monitoring
  • Sewer monitoring systems
  • Horizontal distance measurement
  • Parking management systems
  • Smart waste bin monitoring
  • Object proximity and presence detection
  • Robotics and obstacle avoidance
  • Industrial automation
  • Smart city infrastructure projects

The MDS200-LS measures distances from 0.5 meters to 20 meters with ±0.1m accuracy.

Microwave radar performs reliably in humid, condensation-heavy, and dusty environments where ultrasonic or LiDAR sensors may fail or provide unstable readings.

The MDS200-LB uses an 8500mAh Li-SOCl₂ battery, while the MDS200-LS includes a solar panel with a 3000mAh rechargeable Li-ion battery for maintenance-free outdoor operation.
