Dragino TS01-LB LoRaWAN Tilting Sensor

Price:

₹ 8,689.00
Dragino TS01-LB LoRaWAN Tilting Sensor
  2. Shop
  3. Dragino TS01-LB LoRaWAN Tilting Sensor
Dragino DR-TS1 Water Turbidity Sensor
Dragino DR-TS1 Water Turbidity Sensor
₹ 37,600.00
₹ 37,600.00
Dragino MDS200-LS Solar LoRaWAN Microwave Radar Distance Sensor
Dragino MDS200-LS Solar LoRaWAN Microwave Radar Distance Sensor
₹ 20,800.00
₹ 20,800.00

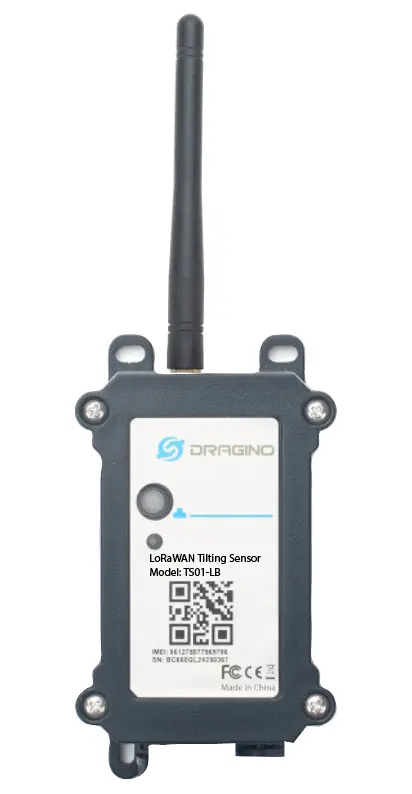

Dragino TS01-LB LoRaWAN Tilting Sensor

https://www.aiotkart.com/web/image/product.template/17785/image_1920?unique=228441d

Dragino TS01-LB is an outdoor LoRaWAN® tilting sensor designed for remote angle and tilt monitoring of trees, buildings and large-scale equipment. It measures pitch and roll angles and transmits the data to an IoT platform through a LoRaWAN network, enabling continuous structural and equipment-position monitoring. The TS01-LB supports LoRaWAN 1.0.3 Class A communication, configurable angle alarms, datalog functionality, battery-level monitoring, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term tilt and angle monitoring deployments in India.

₹ 8,689.00 8689.0 INR ₹ 8,689.00

₹ 8,689.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports IN865 band
  • Measures pitch and roll angle
  • Angle accuracy up to ±0.3°
  • Angle alarm support
  • Datalog feature for local data storage
  • Ultra-low power consumption (5uA sleep mode)
  • 8500mAh Li/SOCl2 battery (TS01-LB)
  • Solar panel + 3000mAh Li-ion battery (TS01-LS)
  • BLE v5.1 for remote configuration
  • Wireless OTA firmware updates
  • Periodic uplink & configurable downlink
  • Battery level monitoring

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to +85°C

Angle Measurement

  • Measures Pitch and Roll
  • Accuracy: ±0.3°

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz (HF), 410 ~ 528 MHz (LF)
  • Supports IN865, EU868, US915, AU915, AS923, etc.
  • Maximum RF Output: +22 dBm
  • RX Sensitivity: -139 dBm
  • Excellent interference immunity

Battery (TS01-LB)

  • 8500mAh Li/SOCl2
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm

The Dragino TS01-LB LoRaWAN® Tilting Sensor is suitable for:

  • Industrial automation and equipment tilt monitoring
  • Commercial infrastructure safety monitoring
  • Water systems and dam structure monitoring
  • Cold chain equipment stability monitoring
  • Manufacturing machinery alignment monitoring
  • Smart utilities and power infrastructure tilt detection
  • Bridge, tower, and large structure monitoring
  • Campuses and institutional infrastructure safety projects
  • Tree and environmental tilt detection

You can purchase the genuine Dragino TS01-LB LoRaWAN® Tilting Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India shipping and bulk supply support.

Yes, the TS01-LB supports IN865 frequency band and LoRaWAN® 1.0.3 Class A, making it suitable for private and public LoRaWAN® deployments across India.

The TS01-LB operates on an 8500mAh Li/SOCl2 battery for long-term standalone use, while the TS01-LS includes a solar panel with a 3000mAh Li-ion rechargeable battery for renewable outdoor deployments.

Documents

User Manual
Download

TS01-LB_Datasheet

Download

TS01-LB_Firmware

Download
