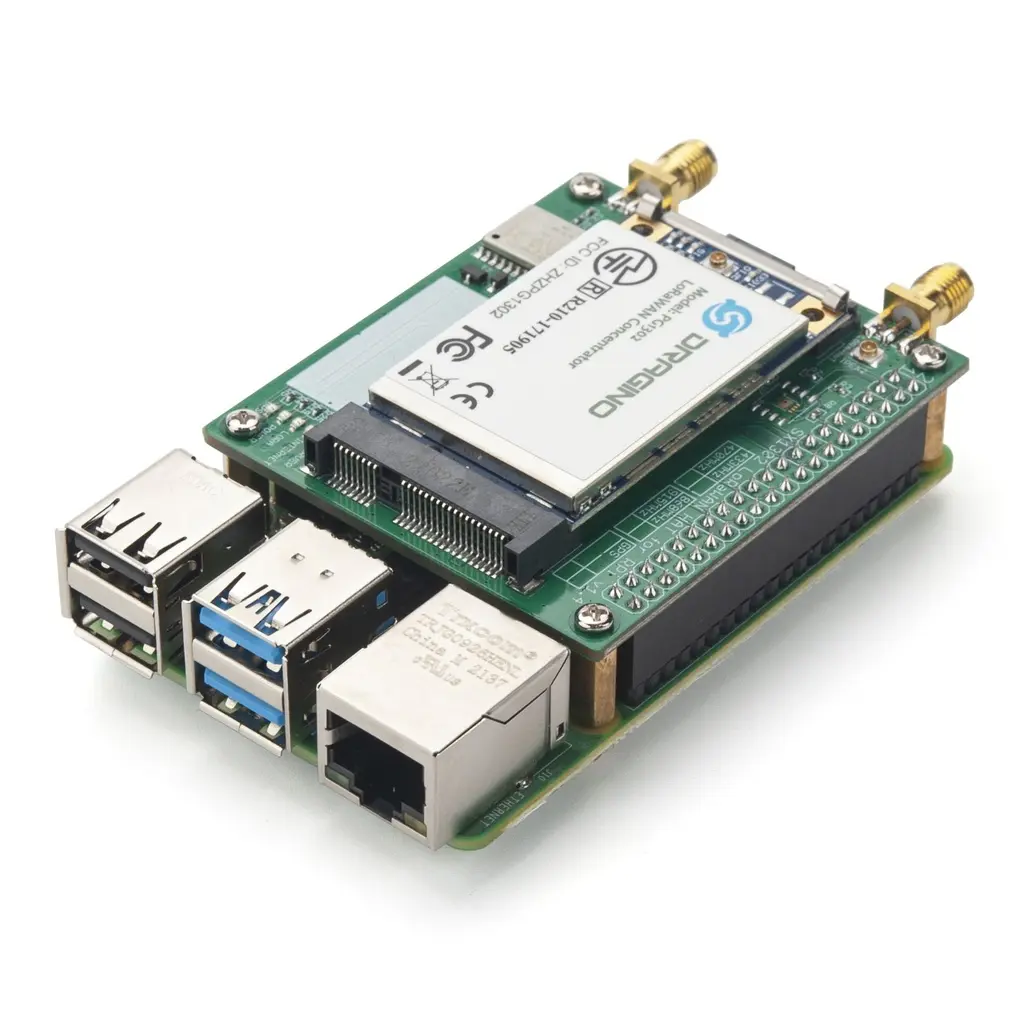

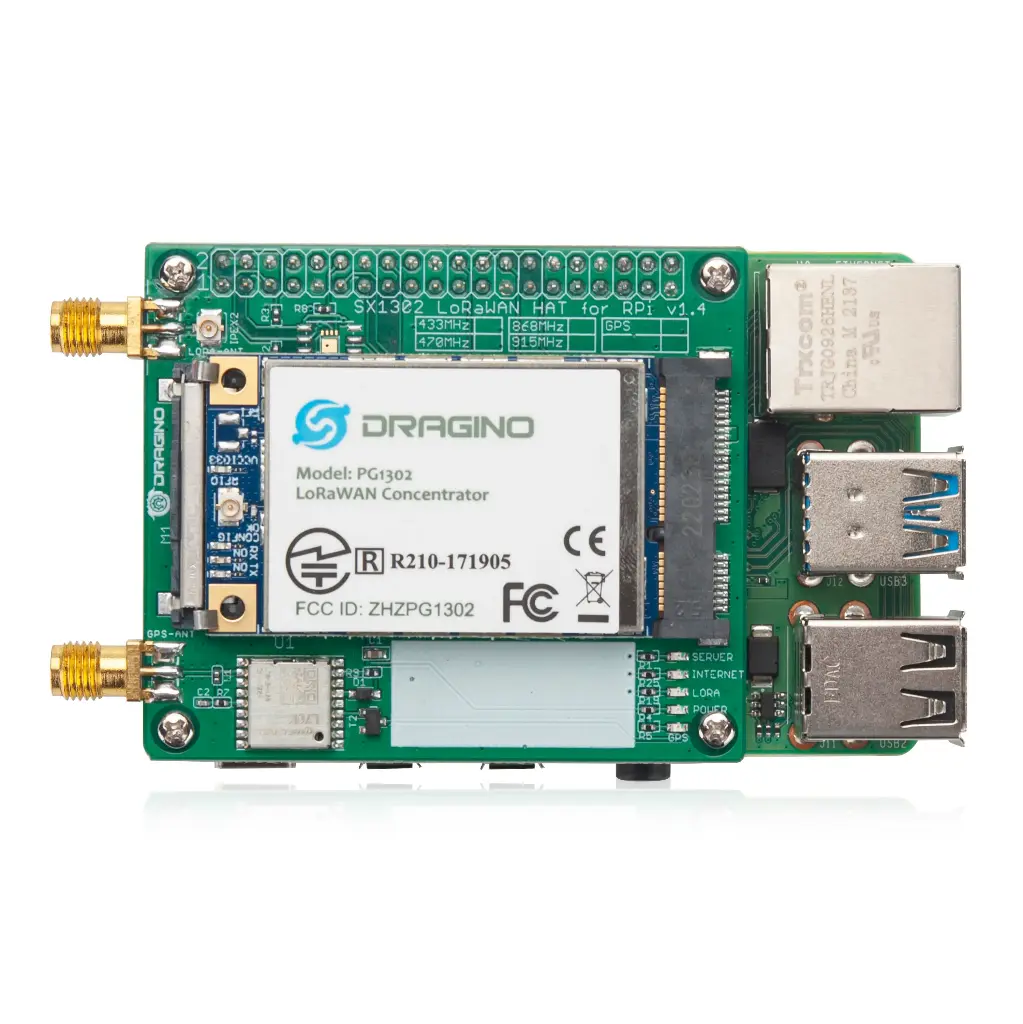

Dragino PG1302-PI LoRaWAN Concentrator for Raspberry Pi

https://www.aiotkart.com/web/image/product.template/17726/image_1920?unique=9778250

Dragino PG1302-PI is a multi-channel LoRaWAN® concentrator designed for building Raspberry Pi-based LoRaWAN gateways and high-density IoT networks. Based on the Semtech SX1302 solution, it can simultaneously receive multiple LoRa packets using different spreading factors and channels, with sensitivity up to -140 dBm. The PG1302-PI package includes the PG1302 concentrator, LoRa antenna and Raspberry Pi converter board, and supports Raspberry Pi 3B, 3B+ and 4 through an SPI interface. With regional frequency options including IN865, it is suitable for smart metering, industrial IoT, infrastructure monitoring and custom LoRaWAN gateway development in India.

₹ 16,500.00 16500.0 INR ₹ 16,500.00

₹ 16,500.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • Multi-channel LoRaWAN® concentrator
  • Based on Semtech SX1302 solution
  • Simultaneous multi-SF, multi-channel packet reception
  • Up to -140dBm high sensitivity
  • Compatible with Raspberry Pi 3B/3B+/4
  • Supports up to 5000 nodes per km²
  • SPI interface for LoRa communication
  • Mini-PCIe interface design
  • Supports 3.3V and 5V systems
  • Pre-built OS support with Web UI configuration
  • Suitable for smart metering and large IoT networks

Core Solution

  • Semtech SX1302 LoRaWAN® concentrator chipset

Interfaces

  • SPI Interface for LoRa
  • 1 x I-PEX connector for LoRa antenna
  • Mini-PCIe Interface
  • Converter board for Raspberry Pi integration

Electrical

  • Power Input: 5V, 1A
  • Supports 3.3V and 5V systems

Performance

  • Sensitivity: Up to -140 dBm
  • Multi-channel LoRa packet reception
  • Supports high node density environments

Environmental

  • Operating Temperature: -40°C to +80°C

Physical (PG1302-PI Version)

  • Device Size: 18 × 8 × 4 cm
  • Weight: 150g

The Dragino PG1302-RPI Multi-Channel LoRaWAN® Concentrator is suitable for:

  • Industrial automation LoRaWAN® gateways
  • Commercial infrastructure IoT networks
  • Smart water systems and metering
  • Cold chain monitoring networks
  • Manufacturing data aggregation gateways
  • Smart utilities and energy monitoring networks
  • Smart city and infrastructure deployments
  • Campuses and institutional LoRaWAN® network setup
  • High-density IoT deployments in industrial zones

You can purchase the genuine Dragino PG1302-RPI Multi-Channel LoRaWAN® Concentrator from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and enterprise supply support.

Yes, the PG1302-RPI is fully compatible with Raspberry Pi 3B/3B+/4 and can be used to build LoRaWAN® gateways supporting Indian frequency bands such as IN865 for private and public LPWAN deployments.

The PG1302 can support high-density deployments with up to 5000 LoRaWAN® nodes per km² in moderately interfered environments, making it suitable for smart metering and industrial IoT networks.

Documents

User Manual
Download

PG1302_Datasheet

Download
