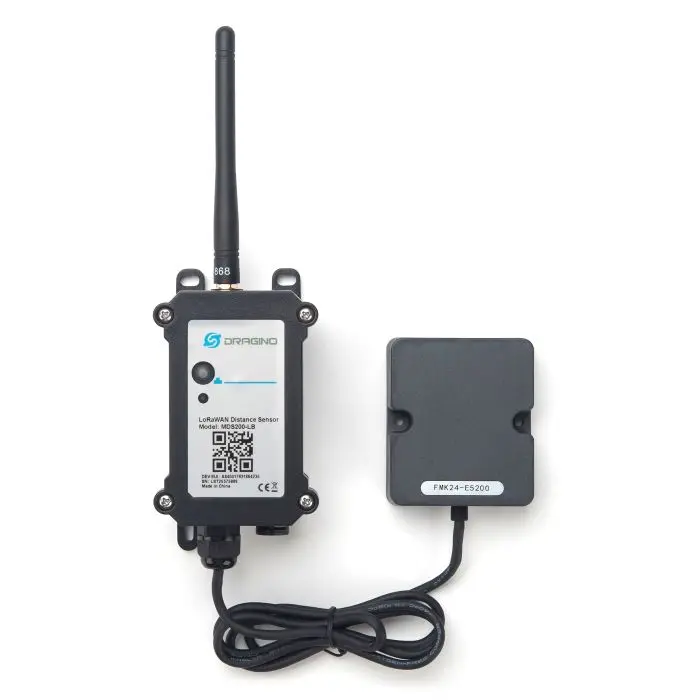

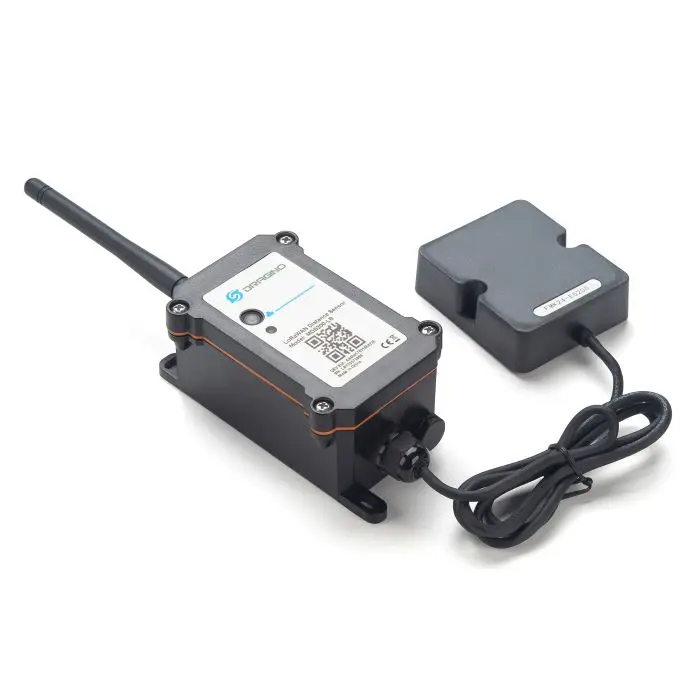

Dragino MDS200-LB LoRaWAN Microwave Radar Distance Sensor

https://www.aiotkart.com/web/image/product.template/17720/image_1920?unique=f205b94

Dragino MDS200-LB is an EOL LoRaWAN® microwave radar distance sensor designed for distance, level and object detection applications. It uses 24GHz FMCW microwave radar technology to measure distances from 0.5 m to 20 m with ±0.1 m accuracy and 0.01 m resolution, while maintaining reliable sensing in environments affected by condensation, water or heavy dust. The MDS200-LB supports LoRaWAN 1.0.3 Class A communication, configurable distance alarms, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 support, it has been used for liquid-level monitoring, parking systems, object presence detection, smart waste management, sewer monitoring and industrial automation applications. This model has been designated End of Life by Dragino.

₹ 19,600.00 19600.0 INR ₹ 19,600.00

₹ 19,600.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 24GHz FMCW Microwave Radar technology
  • Measurement range: 0.5m to 20m
  • Accuracy: ±0.1m
  • Resolution: 0.01m
  • Dual-distance detection (nearest and second object)
  • Configurable alarm uplink mode
  • Measurement angle: 78° horizontal × 23° vertical
  • Reliable in condensation and dusty environments
  • Ultra-low power consumption
  • 8500mAh Li-SOCl₂ battery (MDS200-LB variant)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Periodic uplink transmission
  • Battery level monitoring
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Designed for long-term outdoor deployment

Radar Probe Specifications

  • Measuring Method: FMCW
  • Frequency: 24.000 ~ 24.500 GHz
  • Measurement Output Power: 6 dBm
  • Measurement Range: 0.5 ~ 20 m
  • Accuracy: ±0.1 m
  • Resolution: 0.01 m
  • Measurement Angle: 78° (H) × 23° (V)

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (MDS200-LB)

  • Battery Type: Li/SOCl₂ (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino MDS200-LB LoRaWAN® Microwave Radar Sensor is suitable for:

  • Water tank and liquid level monitoring
  • Bottom water level monitoring
  • Sewer monitoring systems
  • Horizontal distance measurement
  • Parking management systems
  • Smart waste bin monitoring
  • Object proximity and presence detection
  • Robotics and obstacle avoidance
  • Industrial automation
  • Smart city infrastructure projects

The MDS200-LB measures distances from 0.5 meters to 20 meters with ±0.1m accuracy.

Microwave radar performs reliably in humid, dusty, and condensation-heavy environments where ultrasonic or LiDAR sensors may provide inaccurate readings.

The 8500mAh Li-SOCl₂ battery is designed to support up to 5 years of operation depending on transmission interval and configuration.
