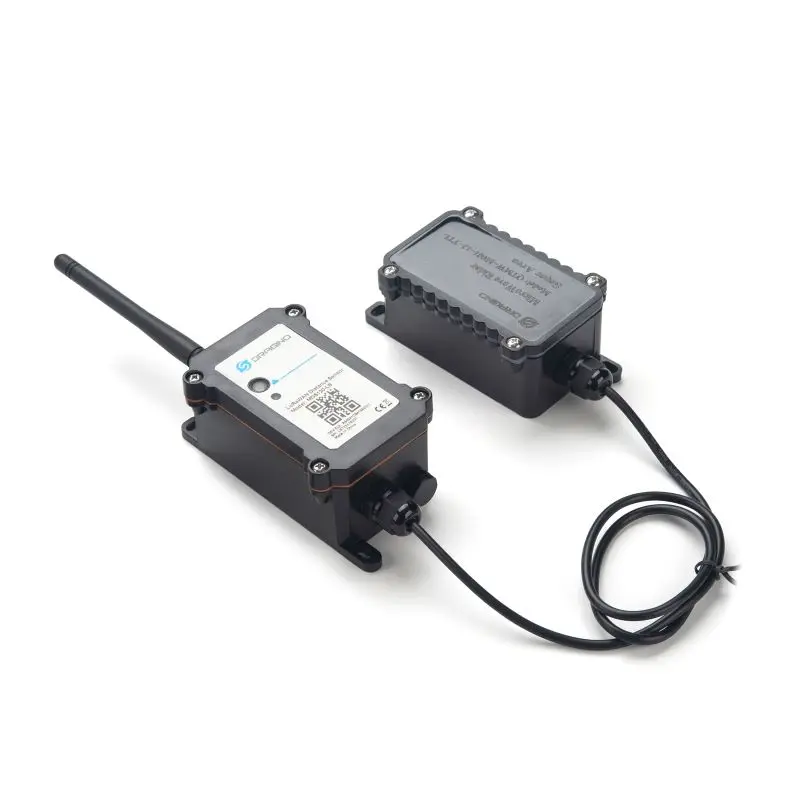

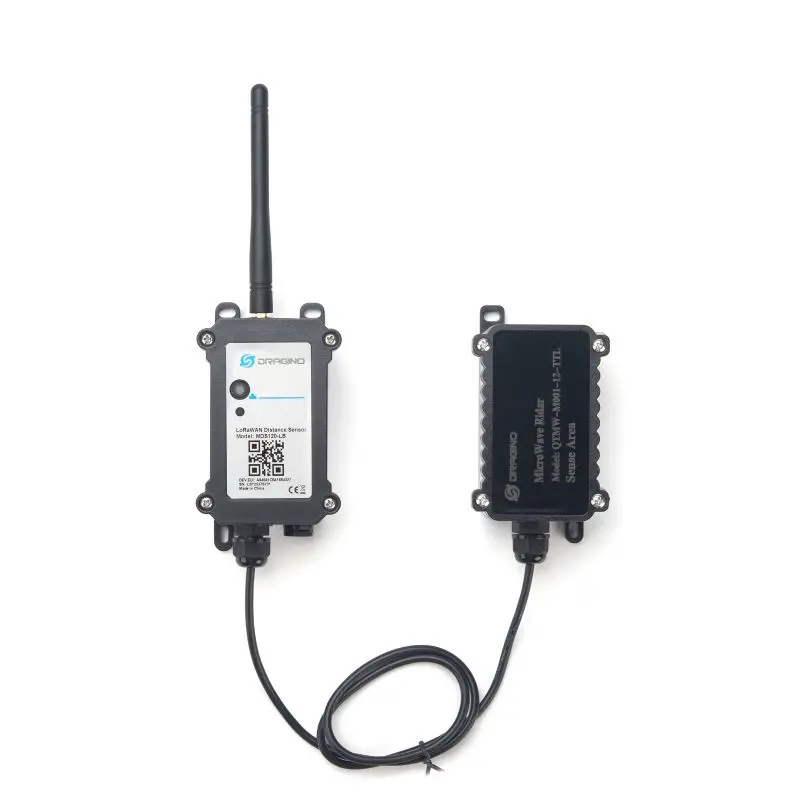

Dragino MDS120-LB LoRaWAN Microwave Radar Distance Sensor

https://www.aiotkart.com/web/image/product.template/17718/image_1920?unique=5360581

Dragino MDS120-LB is a LoRaWAN® microwave radar distance sensor designed for reliable distance, level and object detection in outdoor and industrial IoT applications. It uses 60GHz FMCW radar technology to measure distances from 15 cm to 1200 cm with 1 cm resolution and an accuracy of ±(2 cm + S × 0.3%), where S is the measured value. Unlike ultrasonic or LiDAR sensing, microwave radar can provide reliable measurements in condensation and dusty environments, making the MDS120-LB suitable for liquid-level monitoring, parking systems, object presence detection, smart waste management, sewer monitoring and automation. It supports LoRaWAN 1.0.3 Class A, Bluetooth 5.1 configuration, wireless OTA firmware updates, an 8500mAh Li-SOCl2 battery and IN865 frequency support for deployments in India.

₹ 19,000.00 19000.0 INR ₹ 19,000.00

₹ 19,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 60GHz FMCW Microwave Radar distance detection
  • Measurement range: 15cm to 1200cm
  • Accuracy: ±(2cm + S × 0.3%)
  • Resolution: 1cm
  • Measurement angle: 25° horizontal, 23° vertical
  • Reliable in condensation and dusty environments
  • Ultra-low power consumption
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Periodic uplink transmission
  • Battery level monitoring
  • 8500mAh Li-SOCl₂ battery (MDS120-LB variant)
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865  band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Long-term outdoor deployment capability

Radar Probe Specifications

  • Measuring Method: FMCW
  • Frequency: 60 GHz
  • Measurement Range: 15 – 1200 cm
  • Accuracy: ±(2cm + S × 0.3%)
  • Resolution: 1 cm
  • Measurement Angle: 25° (H) × 23° (V)
  • Suitable for condensation and dusty environments

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications

Battery (MDS120-LB):

  • Type: Li/SOCl₂ (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption:

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino MDS120-LB LoRaWAN® Microwave Radar Sensor is widely used in India for:

  • Industrial automation and process monitoring
  • Commercial infrastructure monitoring systems
  • Water systems and liquid level monitoring
  • Cold chain storage environments
  • Manufacturing plants and dusty facilities
  • Utility and smart city infrastructure
  • Sewer and bottom water level monitoring
  • Parking management systems
  • Campuses, warehouses, and institutional infrastructure

You can buy the Dragino MDS120-LB LoRaWAN® Microwave Radar Sensor directly from AIoTkart®, an Authorized Dragino Distributor in India offering genuine products with nationwide delivery and enterprise support.

Microwave radar technology is more reliable in condensation, humid, or dusty environments. The MDS120-LB maintains accurate distance measurement even when water droplets or dust are present on the sensor surface, making it ideal for industrial and sewer applications.

The MDS120-LB measures distances from 15 cm to 1200 cm with ±(2cm + S × 0.3%) accuracy, suitable for liquid level monitoring and infrastructure distance measurement.

Documents

User Manual
Download

MDS120-LB_Datasheet

Download

MDS120-LB_Firmware

Download
