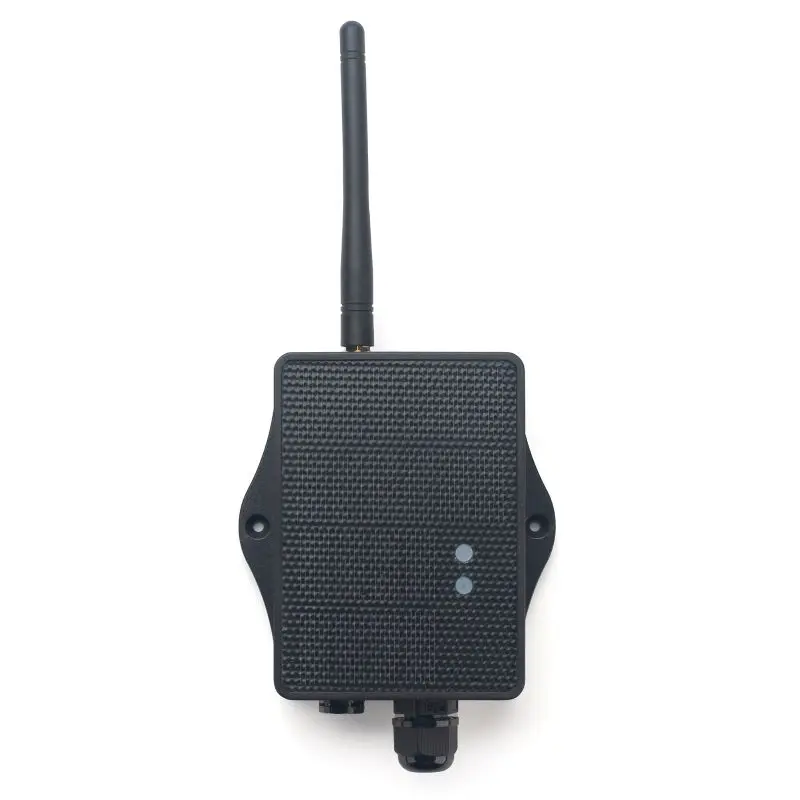

Dragino RS485-LS Waterproof RS485/UART to LoRaWAN Converter

https://www.aiotkart.com/web/image/product.template/17756/image_1920?unique=fbbbaea

Dragino RS485-LS is a solar-powered waterproof RS485/UART to LoRaWAN® Converter designed to connect existing RS485, Modbus and UART sensors to long-range LoRaWAN networks for remote IoT monitoring. It supports multiple RS485 devices through configurable polling rules, Modbus protocol, 3.3V/5V UART sensors, interrupt uplinks and controllable sensor power outputs for flexible field integration. The RS485-LS operates on LoRaWAN 1.0.3 Class A and supports Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP67 enclosure, integrated solar panel, 3000mAh rechargeable Li-ion battery and IN865 frequency option, it is suitable for industrial automation, smart metering, agriculture, smart buildings and outdoor monitoring deployments in India.

₹ 7,000.00 7000.0 INR ₹ 7,000.00

₹ 7,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • RS485 / UART to LoRaWAN® Converter
  • LoRaWAN® 1.0.3 Class A compliant
  • Solar panel with 3000mAh Li-ion battery
  • IP67 waterproof enclosure
  • Supports Modbus protocol
  • Configurable uplink rules for multiple RS485 devices
  • Supports 3.3V and 5V UART sensors
  • Controllable 3.3V and 5V sensor power outputs
  • Interrupt uplink support
  • Remote configuration via LoRaWAN® downlink
  • Bluetooth v5.1 configuration support
  • Wireless OTA firmware upgrade
  • AT command configuration
  • Pre-loaded unique LoRaWAN® OTAA keys

Electrical

  • Supply Voltage: Built-in Battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to +85°C

I/O Interfaces

  • Battery controllable output (2.6V ~ 3.6V)
  • +5V controllable output
  • 1 x RS485 Interface
  • 1 x UART Interface (3.3V or 5V)
  • 1 x Interrupt / Digital IN/OUT
  • 1 x I2C Interface
  • 1 x One-Wire Interface

LoRaWAN® RF Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Regional Bands: IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Battery (RS485-LS)

  • Solar Powered
  • 3000mAh Li-ion Rechargeable Battery
  • Designed for multi-year outdoor operation

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa TX: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Device Size: 9.7 x 6.5 x 4.7 cm
  • Device Weight: 150 g
  • Package Size: 14.0 x 8 x 5 cm
  • Package Weight: 180 g

Package Includes

  • 1 x RS485-LS RS485/UART to LoRaWAN® Converter

The Dragino RS485-LS RS485 to LoRaWAN® Converter is suitable for:

  • Industrial automation and manufacturing systems
  • Commercial infrastructure monitoring
  • Water systems and pump control integration
  • Cold chain monitoring with Modbus sensors
  • Smart metering and utility management
  • Smart agriculture field instrumentation
  • Smart city infrastructure projects
  • Campuses and institutional IoT deployments

You can purchase the genuine Dragino RS485-LS RS485 to LoRaWAN® Converter from AIoTkart®, the authorized Dragino distributor in India with nationwide shipping and project support.

Yes, the RS485-LS supports Modbus protocol and can interface multiple RS485 devices, enabling industrial Modbus sensors to transmit data over LoRaWAN® networks across India.

The RS485-LS is solar-powered with a 3000mAh Li-ion battery for long-term outdoor deployments, while the RS485-LB uses an 8500mAh primary Li/SOCl2 battery.
