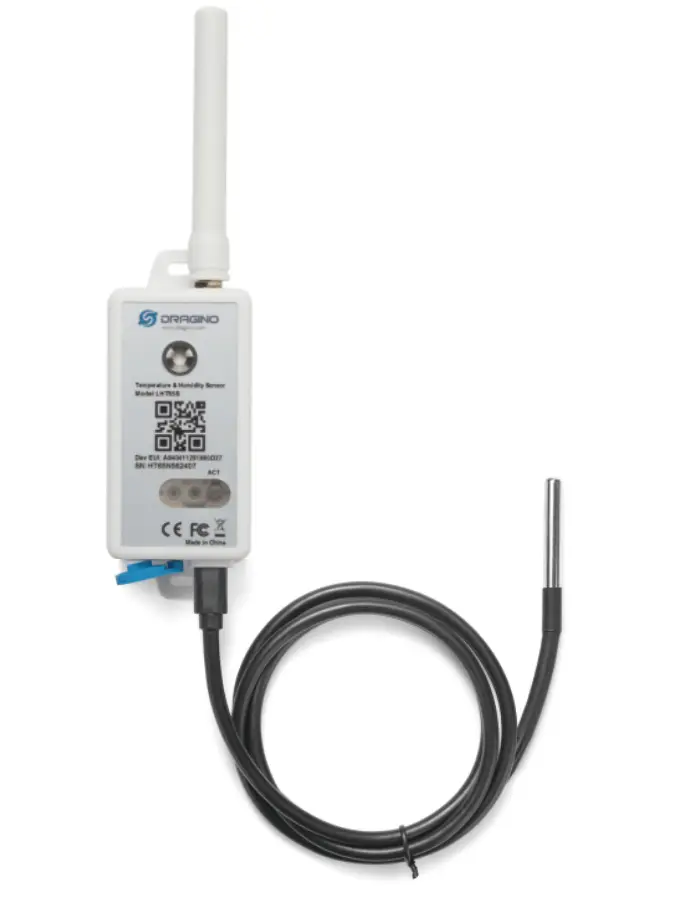

Dragino LHT65S-NE117 is a LoRaWAN® temperature and humidity sensor designed for applications that require accurate remote environmental and external temperature monitoring. It combines built-in temperature and humidity sensing with an external probe based on the TI TMP117A high-accuracy temperature sensor, providing approximately 0.1°C accuracy for precision temperature measurement. The LHT65S-NE117 supports LoRaWAN v1.0.3 Class A communication, remote parameter configuration and long-term operation through its built-in 2400mAh battery. With multiple LoRaWAN frequency options including IN865, it is suitable for cold-chain monitoring, laboratories, healthcare storage, industrial environments and other precision temperature and humidity monitoring applications in India.

₹ 6,500.00 6500.0 INR ₹ 6,500.00

₹ 6,500.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Built-in temperature and humidity sensor
  • High-accuracy external probe with TI TMP117A (NIST traceable)
  • ±0.1°C precision in normal temperature range
  • Ultra-long-range LoRa communication
  • Low power consumption with high interference immunity
  • Built-in 2400mAh battery (up to 10 years*)
  • Datalog feature for offline data storage
  • Remote configuration via LoRaWAN® downlink
  • AT command support for parameter setup
  • Firmware upgradeable via program port
  • Tri-color LED status indicator
  • Works with standard LoRaWAN® gateways

Built-in Temperature Sensor

  • Resolution: 0.01 °C
  • Accuracy: ±0.3 °C (typical)
  • Long-term drift: < 0.02 °C/year
  • Operating range: -40 °C to 80 °C

Built-in Humidity Sensor

  • Resolution: 0.04 %RH
  • Accuracy: ±3 %RH (typical)
  • Long-term drift: < 0.25 RH/year
  • Operating range: 0 to 96 %RH

External Temperature Sensor (NE117 Probe)

  • Silica gel cable
  • Accuracy:
    • ±0.1 °C (–20 °C to 50 °C)
    • ±0.2 °C (–40 °C to 100 °C)
    • ±0.3 °C (–55 °C to 150 °C)

LoRaWAN® & Communication

  • Protocol: LoRaWAN® Class A
  • Frequency Bands: IN865
  • Long-range LPWAN communication

Power

  • 2400mAh built-in non-chargeable battery
  • Up to 10 years battery life (based on transmission interval)

Mechanical

  • Device Size: 9.5 × 4 × 2.8 cm (including antenna)
  • Device Weight: 105 g
  • Package Size: 14.5 × 8 × 5 cm
  • Package Weight: 170 g

Package Includes

  • 1 × LHT65S-NE117 Temperature & Humidity Sensor
  • 1 × External Temperature & Humidity Probe (1m)
  • 1 × External LoRa Antenna

The Dragino LHT65S-NE117 LoRaWAN® Temperature & Humidity Sensor is suitable for:

  • Industrial automation and process monitoring
  • Commercial building management systems
  • Water systems and pump stations
  • Cold chain temperature validation
  • Manufacturing plant environmental control
  • Utilities and smart metering infrastructure
  • Public infrastructure and smart city deployments
  • Campuses, hospitals, and institutional facilities
  • Long-range irrigation systems

You can purchase the genuine Dragino LHT65S-NE117 LoRaWAN® Temperature & Humidity Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide shipping and bulk supply support.

Yes, the LHT65S-NE117 features a TI TMP117A NIST traceable external probe with up to ±0.1°C accuracy, making it ideal for precision industrial IoT, cold chain, and laboratory-grade monitoring applications.

The LHT65S-NE117 supports a datalog function that stores sensor readings locally when network coverage is unavailable, ensuring no data loss during communication interruptions.
