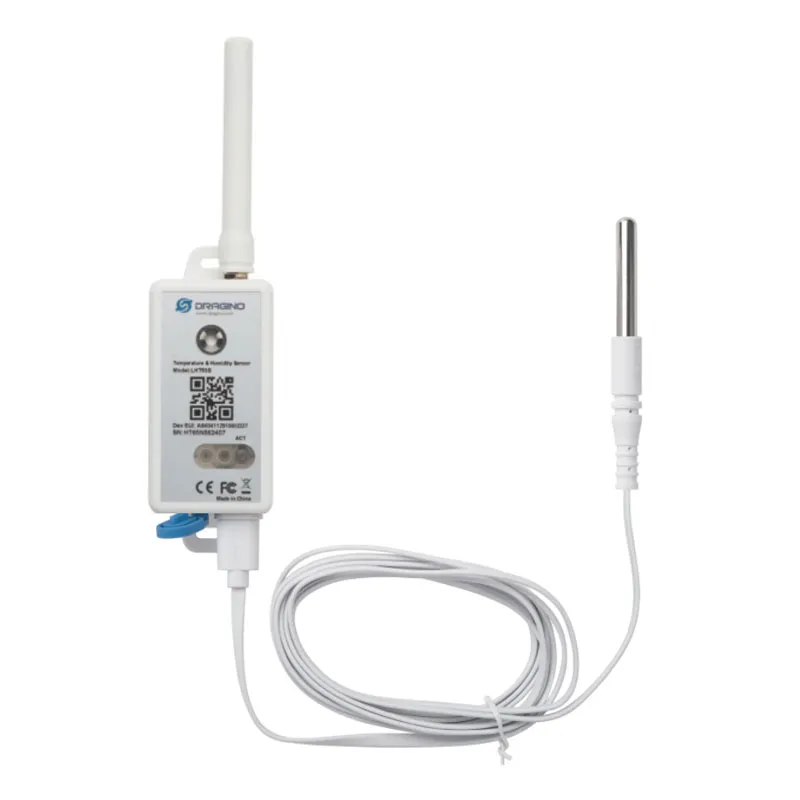

Dragino LHT65S-E3 LoRaWAN Temperature & Humidity Sensor

https://www.aiotkart.com/web/image/product.template/17705/image_1920?unique=e7af373

Dragino LHT65S-E3 is a LoRaWAN® temperature and humidity sensor designed for remote environmental and multi-point temperature monitoring in industrial, commercial, building automation and IoT applications. It combines built-in temperature and humidity sensing with an E3 external DS18B20 temperature probe with a 2-meter cable, enabling both ambient conditions and external temperature to be monitored from a single device. The LHT65S supports LoRaWAN v1.0.3 Class A communication, datalog functionality, remote configuration through LoRaWAN downlinks and a built-in 2400mAh non-rechargeable battery designed for long-term operation. With an IN865 frequency option available, the LHT65S-E3 is suitable for temperature and humidity monitoring deployments in India.

₹ 5,000.00 5000.0 INR ₹ 5,000.00

₹ 5,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Built-in temperature and humidity sensor
  • External temperature sensor support
  • Ultra-long-range LoRa communication
  • High interference immunity with low power consumption
  • Built-in 2400mAh battery (up to 10 years*)
  • Datalog feature for offline data storage
  • Remote configuration via LoRaWAN® downlink
  • AT command support for parameter changes
  • Firmware upgradeable via program port
  • Tri-color LED status indication
  • Compatible with standard LoRaWAN® gateways

Built-in Temperature Sensor

  • Resolution: 0.01 °C
  • Accuracy: ±0.3 °C (typical)
  • Long-term drift: < 0.02 °C/year
  • Operating range: -40 °C to 80 °C

Built-in Humidity Sensor

  • Resolution: 0.04 %RH
  • Accuracy: ±3 %RH (typical)
  • Long-term drift: < 0.25 RH/year
  • Operating range: 0 to 96 %RH

External Temperature Sensor

  • Resolution: 0.0625 °C
  • Accuracy:
    • ±0.5 °C (-10 °C to +85 °C)
    • ±2 °C (-55 °C to +125 °C)
  • Operating range: -55 °C to 125 °C

LoRaWAN® & Communication

  • Protocol: LoRaWAN® Class A
  • Frequency Bands: IN865
  • Long-range LPWAN communication

Power

  • 2400mAh built-in non-chargeable battery
  • Up to 10 years battery life (based on transmission interval)

Mechanical

  • Device Size: 9.5 × 4 × 2.8 cm (including antenna)
  • Device Weight: 105 g
  • Package Size: 14.5 × 8 × 5 cm
  • Package Weight: 170 g

Package Includes

  • 1 × LHT65S-E3 LoRaWAN® Temperature & Humidity Sensor
  • 1 × External Temperature & Humidity Probe
  • 1 × External LoRa Antenna

The Dragino LHT65S-E3 LoRaWAN® Temperature & Humidity Sensor is suitable for:

  • Industrial automation and process monitoring
  • Commercial building automation systems
  • Water systems and pump rooms
  • Cold chain temperature monitoring
  • Manufacturing plant environmental control
  • Utilities and smart metering infrastructure
  • Smart cities and public infrastructure
  • Campuses, hospitals, and institutional facilities
  • Long-range irrigation systems

You can buy the genuine Dragino LHT65S-E3 LoRaWAN® Temperature & Humidity Sensor directly from AIoTkart®, an Authorized Dragino Distributor in India offering PAN-India delivery and bulk supply support.

Yes, the LHT65S-E3 is fully compatible with LoRaWAN® v1.0.3 Class A protocol and can operate with standard LoRaWAN® gateways configured for supported frequency bands such as EU868 and others applicable for India deployments.

Yes, the sensor supports a datalog feature that records readings when network coverage is unavailable, ensuring no temperature or humidity data is lost during communication downtime.

Documents

User Manual
Download

LHT65S-E3_Datasheet

Download

LHT65S-E3_Firmware

Download
