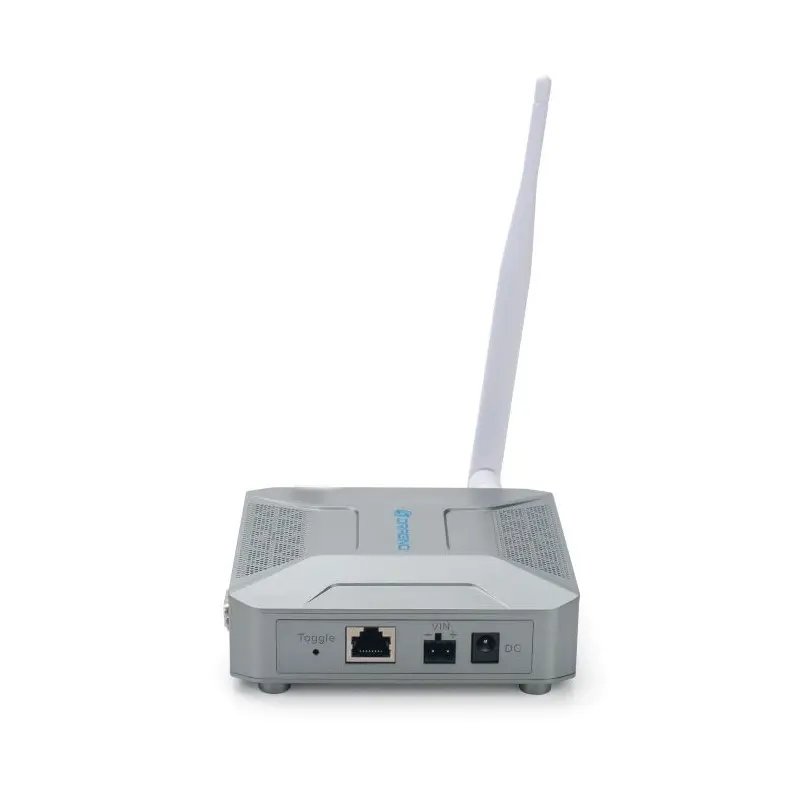

Dragino MS48-LR LoRaWAN to Modbus Gateway

https://www.aiotkart.com/web/image/product.template/17723/image_1920?unique=5245b65

Dragino MS48-LR is an open-source LoRaWAN® to Modbus Gateway designed to connect LoRaWAN sensor networks with Modbus RTU and Modbus TCP systems used in PLC and industrial automation applications. It includes a built-in ChirpStack LoRaWAN server and Node-RED application server, allowing LoRaWAN sensor data to be decoded, mapped to Modbus registers and accessed by PLCs or other Modbus devices. The MS48-LR supports RS485 and RS232 interfaces, Ethernet and WiFi connectivity, remote management, auto-provisioning and configurable LoRaWAN regional parameters. With an IN865 frequency option available, it is suitable for industrial IoT, smart metering, smart buildings, agriculture and factory automation deployments in India.

₹ 24,080.00 24080.0 INR ₹ 24,080.00

₹ 24,080.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • Industrial LoRaWAN® to Modbus Gateway
  • Built-in LoRaWAN® Network Server (ChirpStack)
  • Integrated IoT Application Server with Node-RED
  • Multi-channel LoRaWAN® wireless support
  • 10 programmable parallel demodulation paths
  • Ethernet, & WiFi connectivity
  • RS485 and RS232 interface for PLC integration
  • Open-source Debian operating system
  • Remote management via Web GUI & SSH
  • Auto-provisioning for batch deployment
  • Customizable LoRaWAN® regional frequency bands
  • Supports Semtech UDP, Basic Station & MQTT bridge

Hardware System

  • CPU: Quad-core Cortex-A7 1.2GHz
  • RAM: 512MB
  • Storage: 4GB eMMC

Network Interfaces

  • 1 × 10/100M RJ45 Ethernet Port
  • WiFi 802.11 b/g/n
  • Optional 4G LTE Module (Quectel EC25)
  • Standard SIM Slot
  • 2 × 4G Antennas

Industrial Interfaces

  • 1 × RS485
  • 1 × RS232
  • 1 × USB 2.0 Host
  • 1 × Mini-PCIe Connector

LoRaWAN® Performance

  • Sensitivity up to -140 dBm (SX1250 front-end)
  • 49 LoRa demodulators + 1 (G)FSK demodulator emulation
  • 10 programmable parallel demodulation paths
  • Dynamic Data Rate (DDR) adaptation
  • Dual TX/RX radio front-end
  • Antenna diversity / dual-band operation
  • Operates with negative SNR (CCR up to 9dB)

Operating Conditions

  • Operating Temperature: -20°C to 70°C
  • Storage Temperature: -20°C to 70°C
  • Power Input: 12V DC, 2A

The Dragino MS48-LR LoRaWAN® Gateway is suitable for large-scale Industrial IoT and commercial automation deployments across India, including:

  • Industrial automation and PLC integration
  • Manufacturing plants and process industries
  • Commercial infrastructure monitoring
  • Smart buildings and campuses
  • Water monitoring and utility systems
  • Cold chain monitoring networks
  • Smart metering deployments
  • Agriculture and agri-automation
  • Logistics and supply chain visibility
  • Institutional infrastructure and smart city projects

You can buy the genuine Dragino MS48-LR LoRaWAN® Gateway in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India shipping, bulk pricing, and technical deployment support.

Yes. The MS48-LR is designed specifically to bridge LoRaWAN® devices with PLC systems using RS485 or RS232 Modbus interfaces, making it ideal for industrial automation and factory deployments in India.

Yes, the gateway supports an optional 4G LTE module (Quectel EC25), enabling deployment in remote industrial sites, utilities, water systems, and infrastructure projects without wired internet access.
