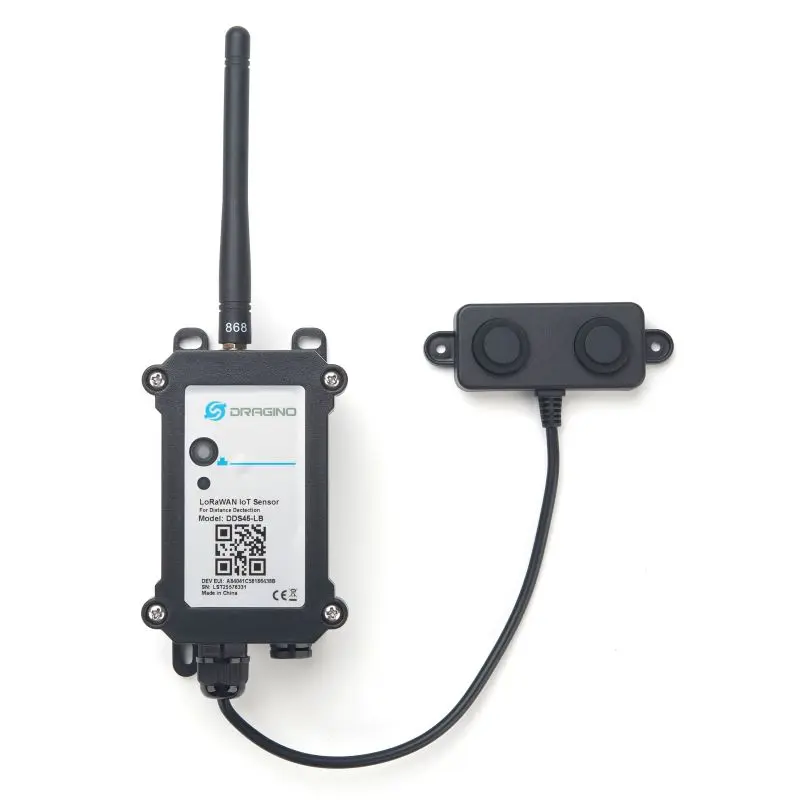

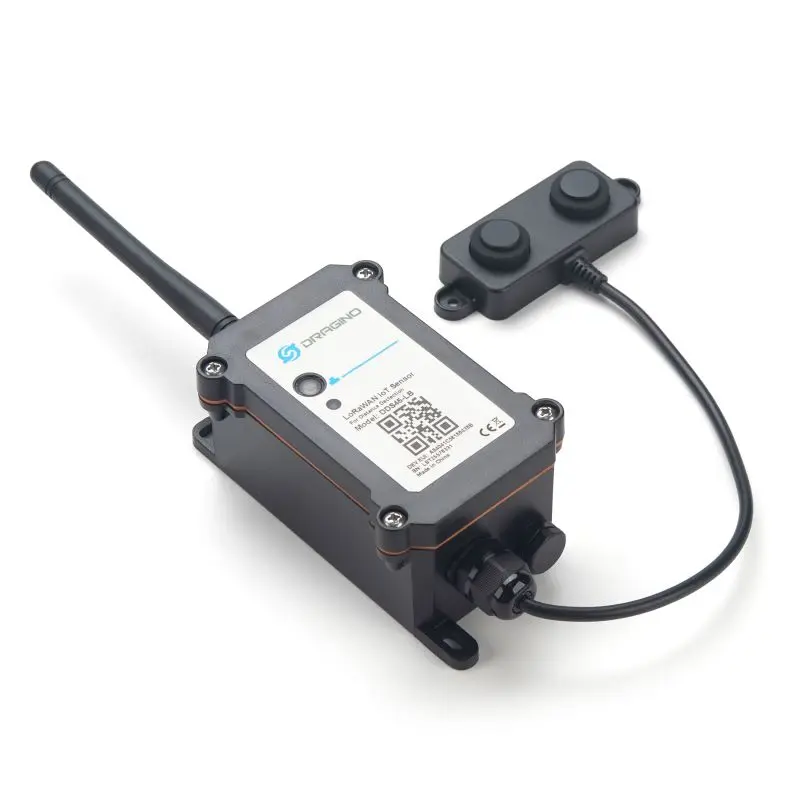

Dragino DDS45-LB LoRaWAN Ultrasonic Distance Sensor

https://www.aiotkart.com/web/image/product.template/17653/image_1920?unique=5b20d0e

Dragino DDS45-LB is a LoRaWAN® ultrasonic distance sensor designed for remote distance, level and object detection applications. It uses ultrasonic sensing with internal temperature compensation to measure flat-object distances from 30 mm to 4500 mm, with an accuracy of ±(1 cm + S × 0.3%) and a 60° measurement angle. The DDS45-LB supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP66 waterproof enclosure, 8500mAh Li-SOCl2 battery and IN865 frequency option, it is suitable for liquid-level monitoring, parking systems, smart waste management, sewer monitoring, object detection and industrial IoT deployments in India.

₹ 8,600.00 8600.0 INR ₹ 8,600.00

₹ 8,600.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Ultrasonic distance detection technology
  • Measurement range: 30 mm – 4500 mm (flat object)
  • Accuracy: ±(1cm + S × 0.3%)
  • 60° measurement angle
  • Built-in temperature compensation
  • Ultra-low power consumption design
  • IP66 waterproof industrial enclosure
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration support
  • Periodic uplink & configurable downlink
  • 8500mAh Li-SOCl₂ battery (DDS45-LB variant)
  • Solar + 3000mAh Li-ion option (DDS45-LS variant)
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865  band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to +85°C
  • Enclosure Rating: IP66
  • Dimensions: 150 × 120 × 55 mm
  • Weight: 220 g
  • Cable Length: 25 cm

Distance Measurement

  • Technology: Ultrasonic
  • Range: 30 mm – 4500 mm
  • Accuracy: ±(1cm + S × 0.3%)
  • Measurement Angle: 60°
  • Temperature Compensation: Internal

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications

Battery (DDS45-LB):

  • Type: Li/SOCl₂ (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption:

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino DDS45-LB LoRaWAN® Distance Sensor is widely used across India in:

  • Industrial automation and process monitoring
  • Commercial infrastructure monitoring systems
  • Water systems and tank level monitoring
  • Cold chain storage level detection
  • Manufacturing plants and smart factories
  • Utility monitoring and smart city deployments
  • Sewer and bottom water level monitoring
  • Parking management systems
  • Intelligent waste management systems
  • Campuses, warehouses, and institutional infrastructure

You can buy the Dragino DDS45-LB LoRaWAN® Ultrasonic Distance Detection Sensor directly from AIoTkart®, an Authorized Dragino Distributor in India offering genuine products with PAN-India delivery and bulk project support.

Yes, the DDS45-LB supports IN865 frequency band, making it fully compatible with LoRaWAN® networks deployed across India for industrial, commercial, and smart city applications.

Yes, with its IP66 enclosure, ultrasonic measurement range up to 4.5 meters, and long battery life, the DDS45-LB is ideal for outdoor tank level monitoring, sewer monitoring, and infrastructure water systems.

Documents

User Manual
 Download

DDS45-LB_Datasheet

Download

DDS45-LB_Firmware

Download
