Dragino D22-LS Solar Dual-Probe LoRaWAN Temperature Sensor

Price:

₹ 8,200.00
Dragino D22-LS Solar Dual-Probe LoRaWAN Temperature Sensor
  2. Shop
  3. Dragino D22-LS Solar Dual-Probe LoRaWAN Temperature Sensor
Dragino D20S-LS Solar LoRaWAN Soil & Road Temperature Sensor
Dragino D20S-LS Solar LoRaWAN Soil & Road Temperature Sensor
₹ 7,700.00
₹ 7,700.00
Dragino DDS45-LB LoRaWAN Ultrasonic Distance Sensor
Dragino DDS45-LB LoRaWAN Ultrasonic Distance Sensor
₹ 8,600.00
₹ 8,600.00

Dragino D22-LS Solar Dual-Probe LoRaWAN Temperature Sensor

https://www.aiotkart.com/web/image/product.template/17646/image_1920?unique=46397a3

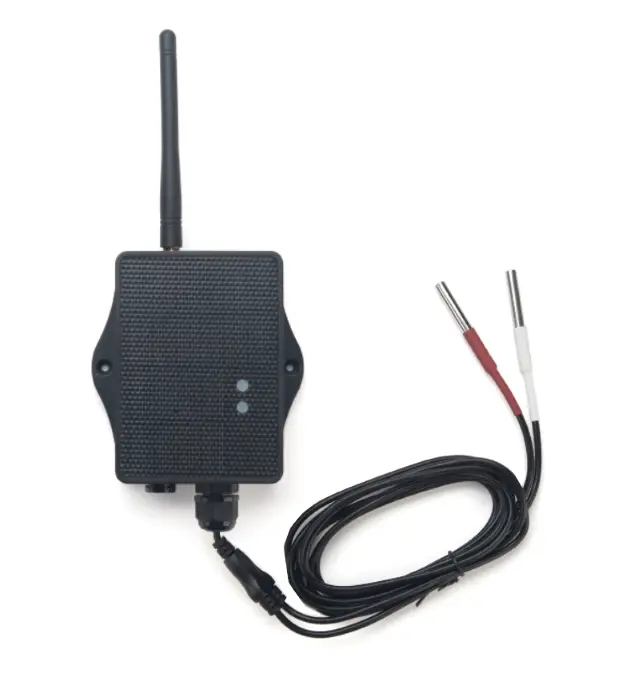

Dragino D22-LS is a solar-powered dual-probe LoRaWAN® temperature sensor designed for simultaneous temperature monitoring at two measurement points in outdoor, industrial and remote IoT applications. It uses two Dallas DS18B20 temperature sensors with a measurement range of -55°C to 125°C and accuracy of ±0.5°C under typical conditions. The D22-LS supports LoRaWAN 1.0.3 Class A communication, configurable temperature alarms, datalog storage, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Built with an IP66 waterproof enclosure and powered by a solar panel with a 3000mAh rechargeable Li-ion battery, it is suitable for cold-chain, industrial equipment, utilities, infrastructure and multi-point temperature monitoring deployments in India, with IN865 frequency support available.

₹ 8,200.00 8200.0 INR ₹ 8,200.00

₹ 8,200.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 2 × DS18B20 temperature probes
  • Measurement range: -55°C to +125°C
  • Accuracy ±0.5°C (max ±2.0°C)
  • Solar panel + 3000mAh Li-ion rechargeable battery
  • Ultra-low power consumption
  • IP66 waterproof outdoor enclosure
  • Temperature alarm functionality
  • Datalog feature for offline data storage
  • Bluetooth v5.1 configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Periodic uplink transmission

Common Electrical Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

Temperature Sensors

  • Sensor Model: 2 × Dallas DS18B20
  • Measurement Range: -55°C to +125°C
  • Accuracy: ±0.5°C (max ±2.0°C)

LoRa Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands:  IN865
  • Frequency Range (HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Power (D22-LS Variant)

  • Solar panel + 3000mAh Li-ion rechargeable battery
  • Designed for long-term outdoor operation
  • Up to 5 years operational lifespan (depending on reporting interval)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Mechanical

  • Enclosure Rating: IP66 Waterproof
  • Device Size: 120 × 55 × 200 mm
  • Device Weight: 372 g

The Dragino D22-LS Two Probes LoRaWAN® Temperature Sensor is suitable for:

  • Dual-zone cold storage monitoring
  • Industrial process inlet/outlet temperature tracking
  • Agricultural and greenhouse monitoring
  • Water treatment and utility systems
  • Remote solar-powered installations
  • Warehouses and logistics centers
  • Environmental and infrastructure monitoring

The dual-probe design allows simultaneous monitoring of two independent temperature points, ideal for systems requiring comparative or multi-zone measurement.

The D22-LS is solar-powered with a 3000mAh Li-ion rechargeable battery, while the D22-LB uses an 8500mAh Li/SOCI2 non-rechargeable battery.

Yes, it comes with an IP66-rated waterproof enclosure designed for harsh outdoor and industrial conditions.

Yes, the device supports the IN865 band, making it compatible with LoRaWAN® networks deployed across India.

Documents

User Manual
 Download

D22-LS_Datasheet

Download

D22-LS_Firmware

Download
