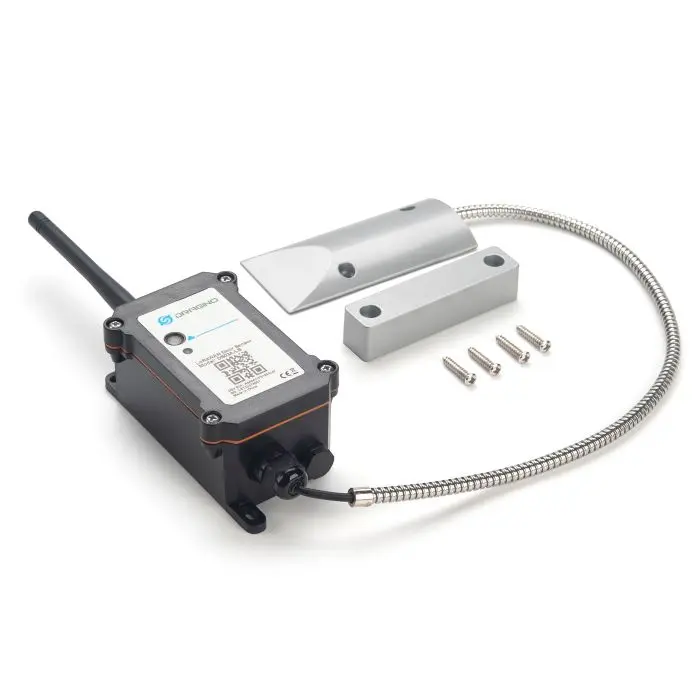

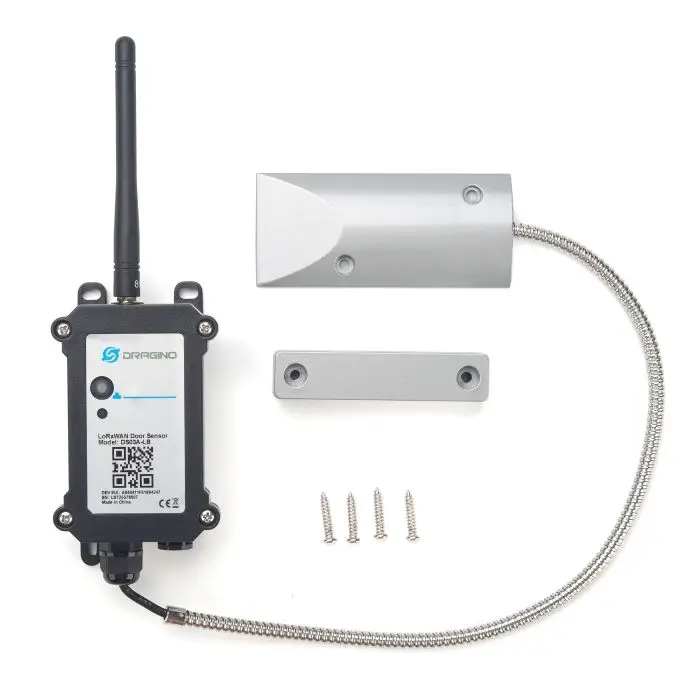

Dragino DS03A-LB Outdoor LoRaWAN Open/Close Door Sensor

https://www.aiotkart.com/web/image/product.template/17674/image_1920?unique=7ee256d

Dragino DS03A-LB is an outdoor LoRaWAN® door sensor designed for wireless open/close monitoring, security systems and building or industrial automation applications. It detects door status and can report open/close events, opening counts and the duration of the last open event to an IoT platform through LoRaWAN. The DS03A-LB supports LoRaWAN 1.0.3 Class A communication, configurable open-duration alarms, datalog storage, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Designed for outdoor deployment with a weatherproof enclosure and an 8500mAh Li-SOCl2 battery, it is suitable for long-term door and access monitoring applications in India, with an IN865 frequency option available.

₹ 7,200.00 7200.0 INR ₹ 7,200.00

₹ 7,200.00

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Outdoor weatherproof industrial enclosure
  • Door open/close detection with statistics
  • Reports open duration and open counts
  • Configurable open duration alarm feature
  • Datalog function for offline data storage
  • Periodic uplink (default every 2 hours) + event-based reporting
  • BLE v5.1 configuration support
  • Wireless OTA firmware updates
  • Downlink support for remote configuration
  • Ultra-low power consumption design
  • Supports IN865  band
  • Wall mountable design
  • Long-life 8500mAh Li/SOCl2 battery (DS03A-LB)

Common DC Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Battery (DS03A-LB)

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Variants

  • DS03A-LB: 8500mAh Li/SOCl2 battery powered
  • DS03A-LS: Solar panel + 3000mAh Li-ion battery

Package Includes

  • 1 x DS03A-LB Door Sensor

The Dragino DS03A-LB LoRaWAN® Outdoor Door Sensor is ideal for:

  • Industrial automation and factory access monitoring
  • Commercial infrastructure and warehouse security
  • Water treatment plants and utility control rooms
  • Cold chain storage facility monitoring
  • Manufacturing unit equipment room access tracking
  • Infrastructure and smart city security projects
  • Campuses, institutions, and large facility monitoring
  • Remote outdoor gate and cabinet monitoring

You can purchase the genuine Dragino DS03A-LB LoRaWAN® Outdoor Door Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide delivery and industrial deployment support.

Yes, the DS03A-LB is designed for outdoor use with a weatherproof enclosure and industrial-grade battery. It supports the IN865 band, making it suitable for LoRaWAN® deployments across India.

The DS03A-LB uses an 8500mAh Li/SOCl2 battery for long-term operation, while the DS03A-LS variant includes a solar panel with a 3000mAh Li-ion rechargeable battery for extended outdoor deployments.
