Dragino CPL03-LS Outdoor Solar LoRaWAN Open/Close Dry Contact Sensor

Price:

₹ 7,040.00
Dragino CPL03-LS Outdoor Solar LoRaWAN Open/Close Dry Contact Sensor
  2. Shop
  3. Dragino CPL03-LS Outdoor Solar LoRaWAN Open/Close Dry Contact Sensor
Dragino CPL03-LB Outdoor LoRaWAN Open/Close Dry Contact Sensor
Dragino CPL03-LB Outdoor LoRaWAN Open/Close Dry Contact Sensor
₹ 6,240.00
₹ 6,240.00
Dragino CS01-LB LoRaWAN 4-Channel Current Sensor Converter (Without Current Sensor)
Dragino CS01-LB LoRaWAN 4-Channel Current Sensor Converter (Without Current Sensor)
₹ 9,600.00
₹ 9,600.00

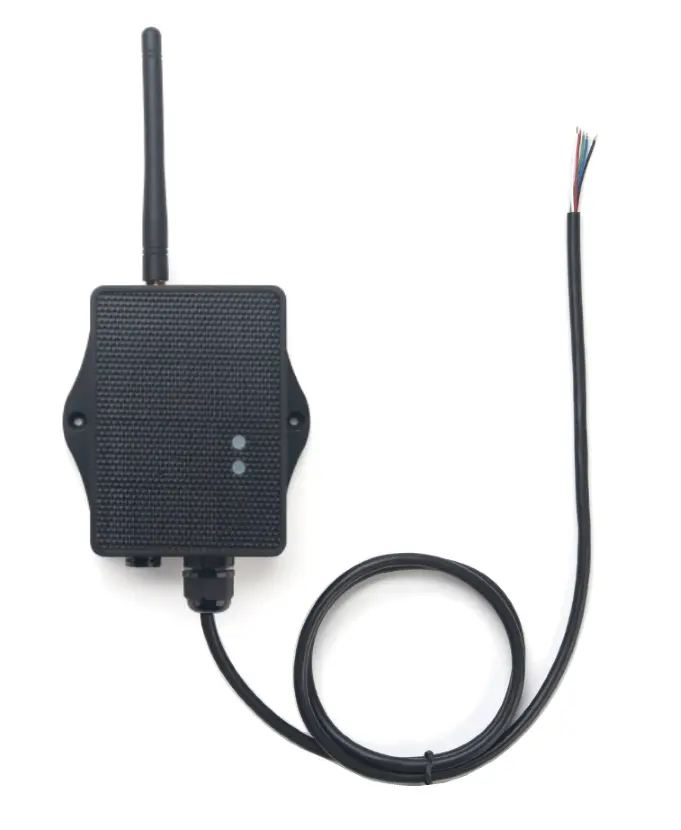

Dragino CPL03-LS Outdoor Solar LoRaWAN Open/Close Dry Contact Sensor

https://www.aiotkart.com/web/image/product.template/17638/image_1920?unique=574fa1b

Dragino CPL03-LS is an outdoor solar-powered LoRaWAN® dry contact sensor designed for remote open/close monitoring, alarm systems and industrial IoT applications. It detects dry contact status, open and close events, open counts and the duration of the last open event, with support for configurable open alarms and datalog storage when LoRaWAN connectivity is unavailable. The CPL03-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Designed for long-term outdoor deployment, it features an IP67 weatherproof enclosure, solar panel and 3000mAh rechargeable Li-ion battery. With an IN865 frequency option available, it is suitable for building automation, industrial monitoring, utility infrastructure and outdoor security applications in India.

₹ 7,040.00 7040.0 INR ₹ 7,040.00

₹ 7,040.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Solar panel with 3000mAh Li-ion battery
  • IP67 weatherproof outdoor enclosure
  • Detects dry contact open/close status
  • Records open counts and last open duration
  • Instant open alarm notification support
  • Periodic and event-based uplink
  • Datalog feature for network outage recovery
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Ultra-low power consumption
  • Pre-loaded unique LoRaWAN® OTAA keys
  • Band support IN865

Electrical

  • Supply Voltage: Built-in Battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to +85°C

LoRaWAN® RF Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Regional Bands: IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Battery (CPL03-LS)

  • Solar Panel Powered
  • 3000mAh Li-ion Rechargeable Battery
  • Designed for long-term outdoor use (up to 5 years depending on conditions)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa TX: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Protection Rating: IP67
  • Dimensions: 195 x 125 x 55 mm
  • Weight: 420g

Package Includes

  • 1 x CPL03-LS Outdoor LoRaWAN® Contact Sensor

The Dragino CPL03-LS Outdoor LoRaWAN® Dry Contact Sensor is suitable for:

  • Industrial automation and remote equipment monitoring
  • Commercial infrastructure access and door monitoring
  • Water system valve and pump status detection
  • Cold chain storage door monitoring
  • Manufacturing plant process control
  • Utility cabinets and electrical panel monitoring
  • Smart infrastructure and municipal deployments
  • Campuses and institutional security systems

You can purchase the genuine Dragino CPL03-LS Outdoor LoRaWAN® Contact Sensor from AIoTkart®, the authorized Dragino distributor in India offering nationwide delivery and project support.

Yes, the CPL03-LS supports LoRaWAN® 1.0.3 Class A and multiple regional bands including IN865, making it ideal for industrial and commercial LoRaWAN® networks across India.

The CPL03-LS is solar-powered with a 3000mAh Li-ion battery, while the CPL03-LB uses a primary 8500mAh Li/SOCl2 battery. The LS model is suitable for long-term outdoor installations where solar charging is preferred.

Documents

User Manual
 Download

CPL03-LS_Datasheet

Download

CPL03-LS_Firmware

Download
