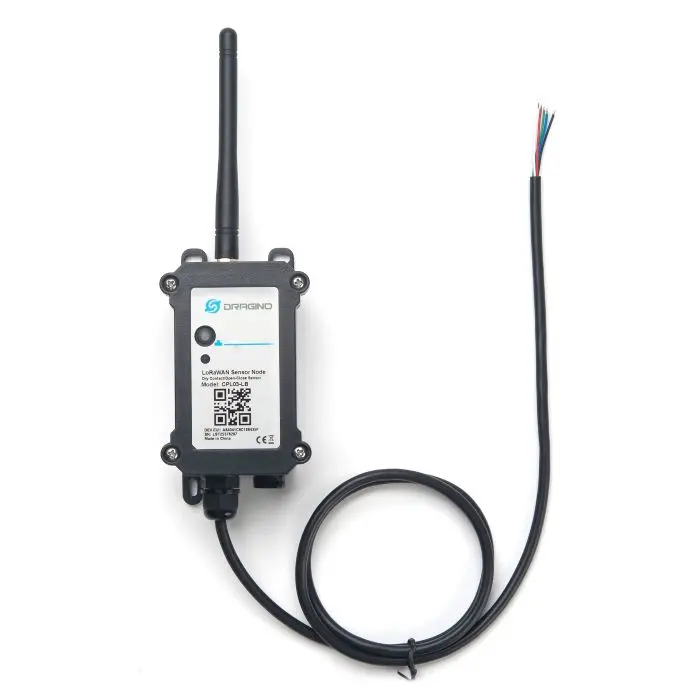

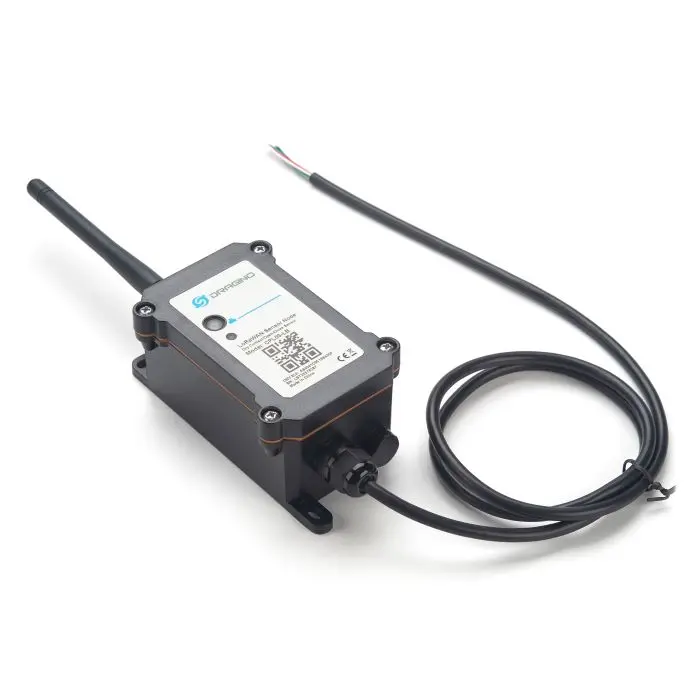

Dragino CPL03-LB Outdoor LoRaWAN Open/Close Dry Contact Sensor

https://www.aiotkart.com/web/image/product.template/17637/image_1920?unique=dcf6b1a

Dragino CPL03-LB is an outdoor LoRaWAN® dry contact sensor designed for remote open/close monitoring, alarm systems and industrial IoT applications. It detects dry contact status, open and close events, open counts and the duration of the last open event, and can transmit data periodically or whenever contact activity occurs. The CPL03-LB supports LoRaWAN 1.0.3 Class A communication, configurable open alarms, datalog storage, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP67 weatherproof enclosure, ultra-low-power design, 8500mAh Li-SOCl2 battery and IN865 frequency option, it is suitable for building automation, industrial monitoring, utility infrastructure and outdoor security applications in India.

₹ 6,240.00 6240.0 INR ₹ 6,240.00

₹ 6,240.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Outdoor IP67 weatherproof enclosure
  • Detects dry contact open/close status
  • Tracks open counts and last open duration
  • Instant open alarm notification support
  • Periodic uplink and event-based transmission
  • Datalog feature for network outage backup
  • BLE v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Ultra-low power consumption design
  • 8500mAh Li/SOCl2 battery (CPL03-LB)
  • Solar + Li-ion battery option (CPL03-LS)
  • Pre-loaded unique LoRaWAN® OTAA keys

Electrical

  • Supply Voltage: Built-in Battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to +85°C

LoRaWAN® RF Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Regional Bands: IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Battery (CPL03-LB)

  • Type: Li/SOCl2 (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa TX: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Protection Rating: IP67
  • Dimensions: 195 x 125 x 55 mm
  • Weight: 420g

Package Includes

  • 1 x CPL03-LB or CPL03-LS Outdoor LoRaWAN® Contact Sensor

The Dragino CPL03-LB Outdoor LoRaWAN® Dry Contact Sensor is suitable for:

  • Industrial automation and remote equipment monitoring
  • Commercial infrastructure access monitoring
  • Water systems valve and pump status monitoring
  • Cold chain door open/close tracking
  • Manufacturing plant process monitoring
  • Utility cabinets and power distribution panels
  • Smart infrastructure and municipal systems
  • Campuses and institutional security systems

You can buy the genuine Dragino CPL03-LB Outdoor LoRaWAN® Contact Sensor in India from AIoTkart®, the authorized Dragino distributor offering nationwide delivery and industrial project support.

Yes, the CPL03-LB supports LoRaWAN® 1.0.3 Class A and multiple regional bands including IN865, making it suitable for industrial and commercial LoRaWAN® deployments across India.

The CPL03-LB uses an 8500mAh Li/SOCl2 battery designed for ultra-low power consumption and can operate up to 5 years depending on uplink frequency and network conditions.
