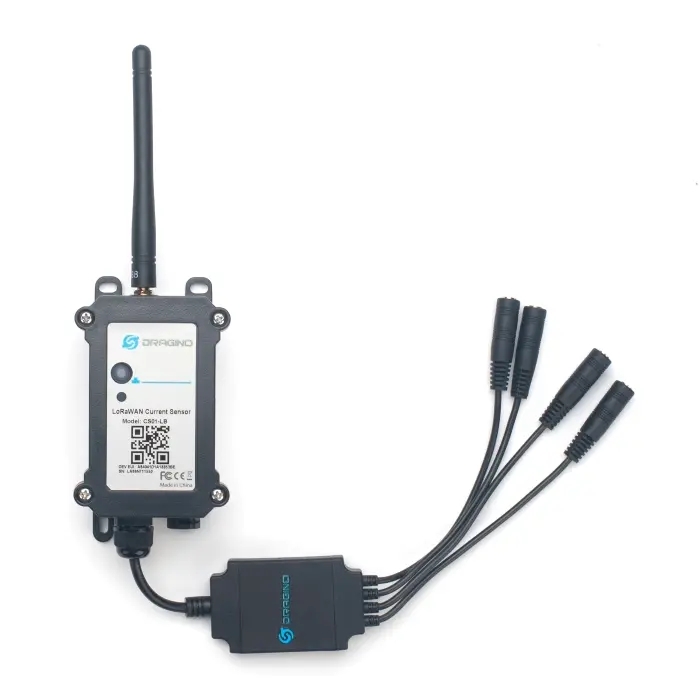

Dragino CS01-LB LoRaWAN 4-Channel Current Sensor Converter (Without Current Sensor)

https://www.aiotkart.com/web/image/product.template/17639/image_1920?unique=2bbbd90

Dragino CS01-LB is a LoRaWAN® 4-channel current sensor converter designed for machine status monitoring, electrical current measurement and power consumption trend analysis in industrial and commercial IoT applications. It supports up to four detachable external current sensors with selectable ratios including 100A/50mA, 300A/50mA and 600A/50mA, allowing the same converter to be adapted to different electrical monitoring requirements. The CS01-LB supports LoRaWAN 1.0.3 Class A communication, configurable current alarms, BLE setup, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with an IN865 frequency option, it is suitable for long-term wireless current monitoring deployments in India.


₹ 9,600.00 9600.0 INR ₹ 9,600.00

₹ 9,600.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 4-channel current sensor converter
  • Supports up to 4 detachable current sensors
  • Compatible with 100A/50mA, 300A/50mA, 600A/50mA CTs
  • Real-time machine running status monitoring
  • Power consumption trend analysis
  • Current threshold alarm support
  • Ultra-low power consumption design
  • BLE configuration support
  • Wireless OTA firmware update
  • Downlink configuration via LoRaWAN®
  • 8500mAh Li-SOCI2 battery for long-term deployment

Model: Dragino CS01-LB

Product Type: LoRaWAN® 4-Channel Current Sensor Converter

Frequency Band (India): IN865 (862–1020 MHz supported)

LoRa Output Power: Up to +22 dBm

RX Sensitivity: Down to -139 dBm

Protocol: LoRaWAN® 1.0.3 Class A

Electrical

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to 85°C

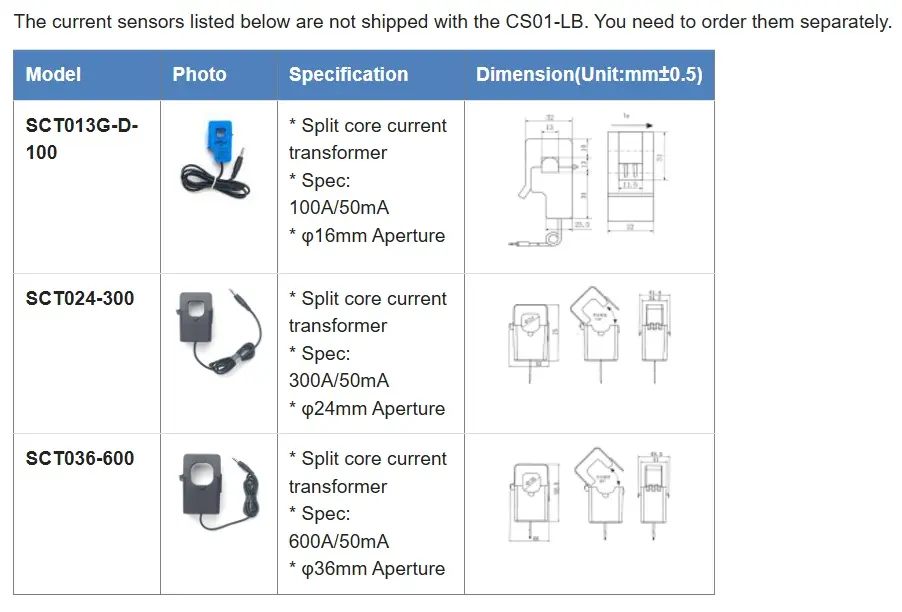

Supported Current Transformers

  • SCT013G-D-100: 100A/50mA, φ16mm aperture
  • SCT024-300: 300A/50mA, φ24mm aperture
  • SCT036-600: 600A/50mA, φ36mm aperture
  • Maximum Channels: 4 current sensors
  • Detachable & replaceable CT sensors

Battery & Power

  • Battery Type: Li/SOCI2 (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm

The Dragino CS01-LB LoRaWAN® Current Sensor Converter is suitable for:

  • Industrial automation machine monitoring
  • Commercial building energy monitoring
  • Water system pump motor monitoring
  • Cold chain facility power tracking
  • Manufacturing equipment current analysis
  • Utility-level electrical infrastructure monitoring
  • Smart campuses & institutional energy management
  • Solar inverter and EV charging station monitoring

You can purchase the Dragino CS01-LB LoRaWAN® Current Sensor Converter from AIoTkart®, an Authorized Dragino Distributor in India offering genuine products with nationwide delivery.

Yes, the CS01-LB supports LoRaWAN® 1.0.3 Class A and operates on the IN865 band, making it suitable for private and public LoRaWAN® networks used for Industrial IoT and building energy monitoring projects in India.

The CS01-LB supports up to four detachable split-core current transformers, allowing multi-line current monitoring from a single LoRaWAN® device.

Documents

User Manual
 Download

CS01-LB_Datasheet

Download
