Akvodrops AD-WWM DN80 Woltman Water Meter with Pulse Output

Price:

₹ 14,736.00
Akvodrops AD-WWM DN80 Woltman Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-WWM DN80 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN65 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN65 Woltman Water Meter with Pulse Output
₹ 14,102.00
₹ 14,102.00
Akvodrops AD-WWM DN100 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN100 Woltman Water Meter with Pulse Output
₹ 15,578.00
₹ 15,578.00

Akvodrops AD-WWM DN80 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17968/image_1920?unique=0bed08b

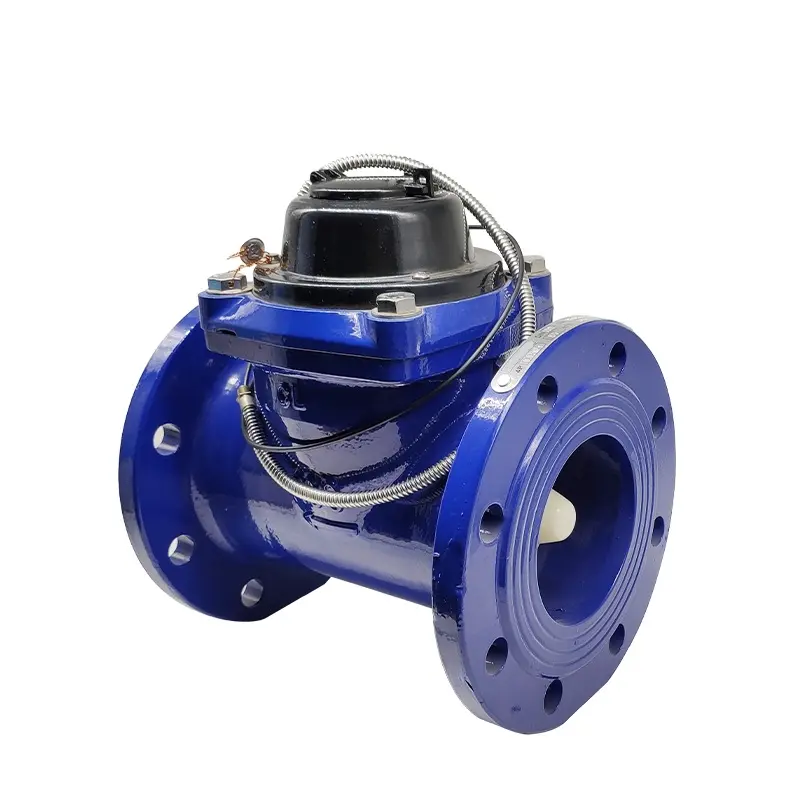

The Akvodrops AD-WWM DN80 is a Woltman-type mechanical water meter with pulse output designed for accurate bulk cold-water measurement in 80 mm pipelines. It features a dry-dial register, magnetic-drive transmission, cast-iron body and flanged connection, making it suitable for commercial buildings, industries, utilities and large water-distribution systems.

The DN80 model also supports a reed-switch pulse output for integration with compatible pulse counters, data loggers and IoT monitoring systems. For AD-WWM sizes DN80 to DN200, the current Akvodrops datasheet specifies selectable pulse positions of 100 or 1000 litres per pulse.


₹ 14,736.00 14736.0 INR ₹ 14,736.00

₹ 14,736.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN80 is designed for measuring bulk cold-water consumption in 80 mm pipelines. It is suitable for commercial buildings, industries, municipal networks, utilities and other high-flow water-distribution applications.

The AD-WWM DN80 supports a reed-switch pulse output. Akvodrops specifies 100 L/pulse or 1000 L/pulse options for meter sizes from DN80 through DN200.

Yes. The pulse output can be connected to a compatible pulse counter or communication device for remote water monitoring. Akvodrops lists cellular, Wi-Fi and LoRaWAN data collection as optional integrations. These communication technologies are not built into the base mechanical DN80 water meter itself.

Documents

Akvodrops WATER METER (AD-WWM).pdf
