Akvodrops AD-WWM DN65 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17970/image_1920?unique=ec57661

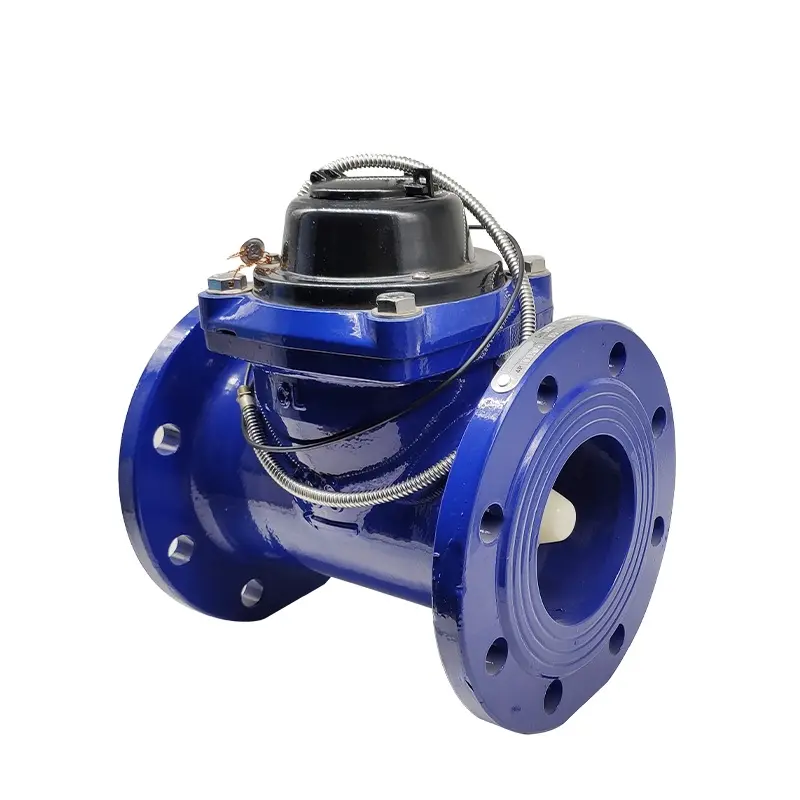

The Akvodrops AD-WWM DN65 is a Woltman-type mechanical water meter with pulse output designed for bulk cold-water measurement in 65 mm pipelines. It uses a dry-dial mechanical register with magnetic transmission, a cast-iron body and flanged connections for reliable water-consumption measurement in commercial buildings, industries, utilities and water-distribution systems.

The DN65 model also supports a reed-switch pulse output, allowing the mechanical meter reading to be integrated with compatible data loggers, pulse counters and IoT monitoring systems. For the DN50–DN65 sizes, the AD-WWM datasheet lists configurable pulse positions of 10, 100 or 1000 litres per pulse.

₹ 14,102.00 14102.0 INR ₹ 14,102.00

₹ 14,102.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN65 is designed to measure bulk cold-water consumption in 65 mm pipelines. It is suitable for commercial buildings, industries, utilities, residential developments and water-distribution applications.

Yes. The DN65 model supports a reed-switch pulse output. The Akvodrops datasheet lists 10, 100 and 1000 litres per pulse as the available pulse positions for DN50–DN65 models.

Yes. Its pulse output can be connected to a compatible pulse counter or communication device for remote monitoring. Akvodrops lists cellular, Wi-Fi and LoRaWAN data collection as optional integrations; these communication technologies are not built into the base mechanical water meter itself.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
