Akvodrops AD-WWM DN100 Woltman Water Meter with Pulse Output

Price:

₹ 15,578.00
Akvodrops AD-WWM DN100 Woltman Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-WWM DN100 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN80 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN80 Woltman Water Meter with Pulse Output
₹ 14,736.00
₹ 14,736.00
Akvodrops AD-WWM DN125 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN125 Woltman Water Meter with Pulse Output
₹ 20,814.00
₹ 20,814.00

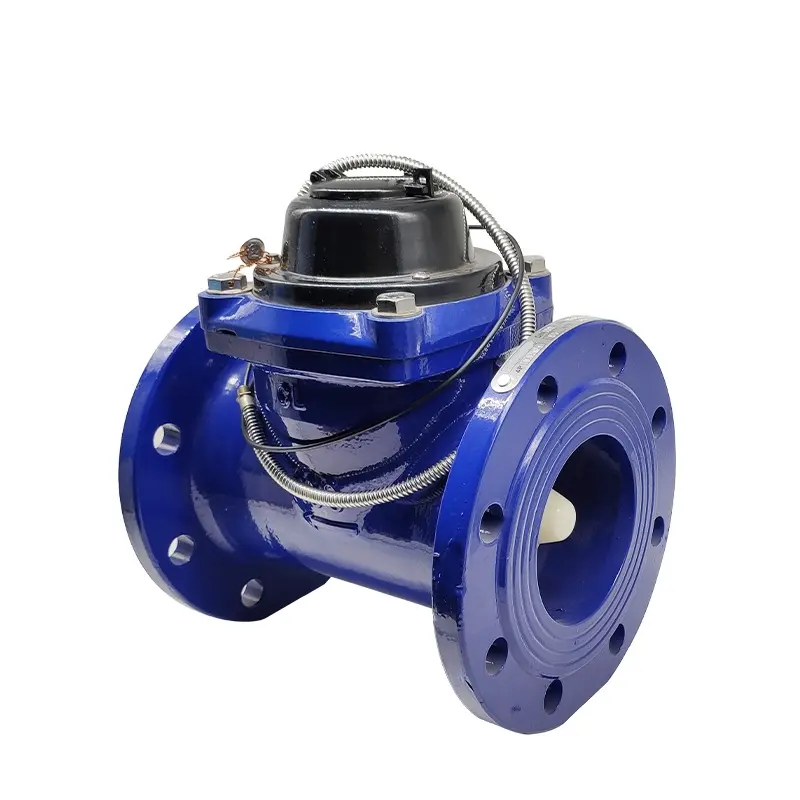

Akvodrops AD-WWM DN100 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17969/image_1920?unique=db5ef81

The Akvodrops AD-WWM DN100 is a Woltman-type mechanical water meter with pulse output designed for accurate bulk cold-water measurement in 100 mm pipelines. It features a dry-dial register, magnetic-drive transmission, cast-iron body and flanged connection, making it suitable for commercial buildings, industrial facilities, utility networks and large water-distribution systems.

The DN100 model includes a reed-switch pulse output that can be connected to compatible pulse counters, data loggers or IoT monitoring devices for remote water-consumption monitoring. For AD-WWM sizes from DN80 to DN200, Akvodrops specifies pulse options of 100 or 1000 litres per pulse. Optional cellular, Wi-Fi or LoRaWAN data collection requires compatible external communication hardware.


₹ 15,578.00 15578.0 INR ₹ 15,578.00

₹ 15,578.00

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN100 is designed for measuring bulk cold-water flow and consumption in 100 mm pipelines. It is suitable for industrial facilities, commercial buildings, municipal networks, utilities and other applications requiring large-pipeline water metering.

The DN100 model supports a reed-switch pulse output. Akvodrops specifies 100 L/pulse and 1000 L/pulse options for AD-WWM sizes from DN80 through DN200.

Yes. Its reed-switch pulse output can be connected to a compatible pulse counter, logger or IoT communication device. Akvodrops lists cellular, Wi-Fi and LoRaWAN data collection as optional integrations. These communication technologies are not built into the base mechanical water meter unless additional hardware is supplied.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
