Akvodrops AD-WWM DN50 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17966/image_1920?unique=2416de5

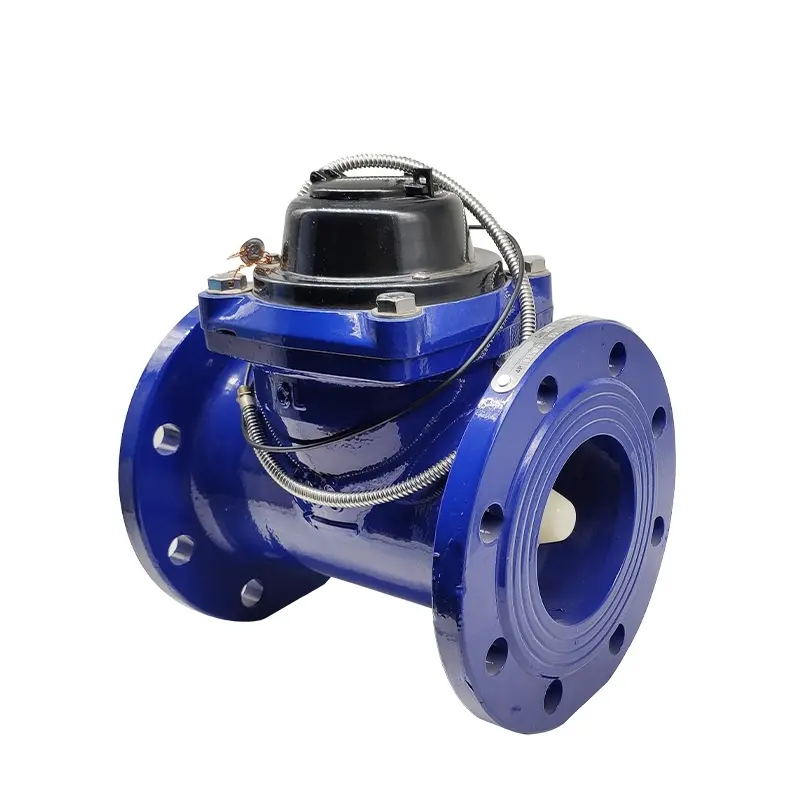

The Akvodrops AD-WWM DN50 is a Woltman-type mechanical water meter with pulse output designed for accurate measurement of bulk cold-water consumption in commercial buildings, residential complexes, industries and water-distribution networks. The DN50 meter combines a robust cast-iron body, flanged inline connection, dry-dial register and magnetic transmission for reliable mechanical water measurement with low pressure loss.

The AD-WWM also supports reed-switch pulse output, allowing mechanical water-consumption data to be connected to compatible remote monitoring, data-logging or IoT systems. For the DN50 size, the Akvodrops documentation lists configurable pulse positions of 10, 100 or 1000 litres per pulse, depending on the required configuration.


₹ 12,294.00 12294.0 INR ₹ 12,294.00

₹ 12,294.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN50 is designed for measuring bulk cold-water flow and consumption in 50mm pipelines. Typical applications include commercial buildings, industries, residential complexes and water-distribution systems.

Yes. The DN50 AD-WWM supports a reed-switch pulse output for integration with compatible monitoring and data-acquisition systems. Akvodrops lists 10, 100 and 1000 litres per pulse as available pulse positions for the DN50–DN65 meter sizes.

Yes. The mechanical meter's pulse output can be interfaced with a compatible pulse-counting device or IoT converter. Akvodrops documentation lists optional Cellular, Wi-Fi and LoRaWAN IoT data collection for the AD-WWM family. The water meter itself should not be described as a LoRaWAN or cellular meter unless the appropriate communication hardware is included.

Documents

Akvodrops WATER METER (AD-WWM).pdf
