Akvodrops AD-WWM DN300 Woltman Water Meter with Pulse Output

Price:

₹ 98,936.00
Akvodrops AD-WWM DN300 Woltman Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-WWM DN300 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output
₹ 64,290.00
₹ 64,290.00
Dragino PS-LB-NA M20 LoRaWAN Analog Sensor Interface (Without Sensor)
Dragino PS-LB-NA M20 LoRaWAN Analog Sensor Interface (Without Sensor)
₹ 6,645.00
₹ 6,645.00

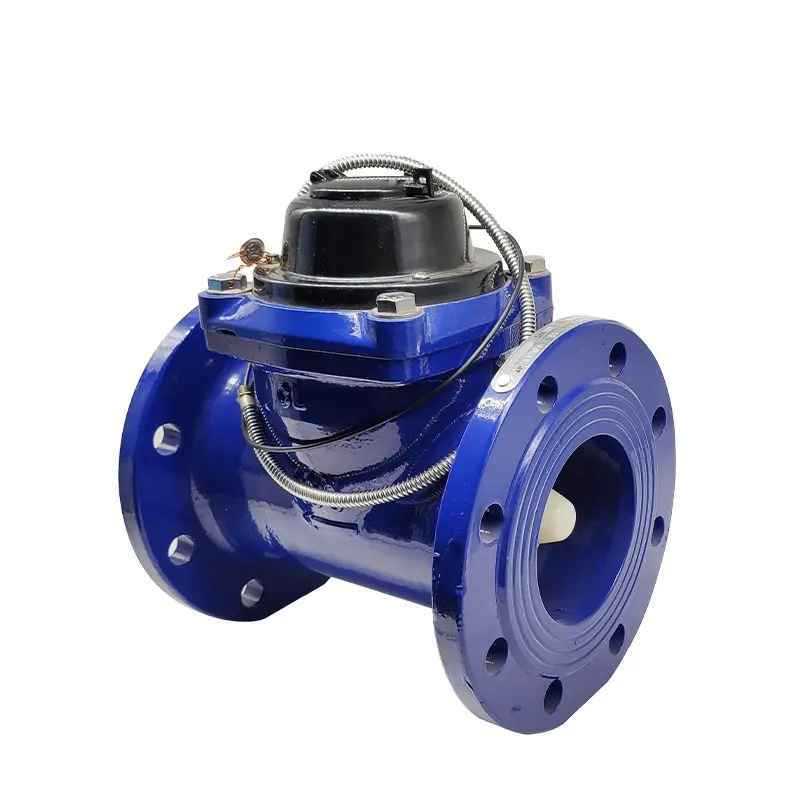

Akvodrops AD-WWM DN300 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17975/image_1920?unique=0153d65

The Akvodrops AD-WWM DN300 is a Woltman-type mechanical water meter with pulse output designed for bulk cold-water measurement in 300 mm pipelines. It uses a dry-dial register with magnetic transmission, a cast-iron body and flanged pipeline connections for reliable water-consumption measurement in large industrial facilities, municipal networks, utilities and bulk water-distribution systems.

The DN300 version supports a reed-switch pulse output of 1000 litres per pulse, allowing the mechanical meter to be connected to compatible pulse counters, data loggers and remote monitoring systems. Cellular, Wi-Fi and LoRaWAN data collection are optional integrations requiring additional communication hardware; they are not built into the base mechanical meter.


₹ 98,936.00 98936.0 INR ₹ 98,936.00

₹ 98,936.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN300 is designed for measuring bulk cold-water flow and consumption in 300 mm pipelines. It is suitable for municipal networks, industries, utilities and other high-flow water-distribution applications.

The DN300 model supports a reed-switch pulse output of 1000 litres per pulse. Akvodrops specifies 1000 L/pulse for DN250–DN300.

Yes. Its reed-switch pulse output can be connected to a compatible pulse counter, data logger or IoT communication device. Akvodrops lists Cellular, Wi-Fi and LoRaWAN data collection as optional integrations, so additional communication hardware is required.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
