Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output

Price:

₹ 64,290.00
Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output
₹ 31,694.00
₹ 31,694.00
Akvodrops AD-WWM DN300 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN300 Woltman Water Meter with Pulse Output
₹ 98,936.00
₹ 98,936.00

Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17974/image_1920?unique=3e7d7df

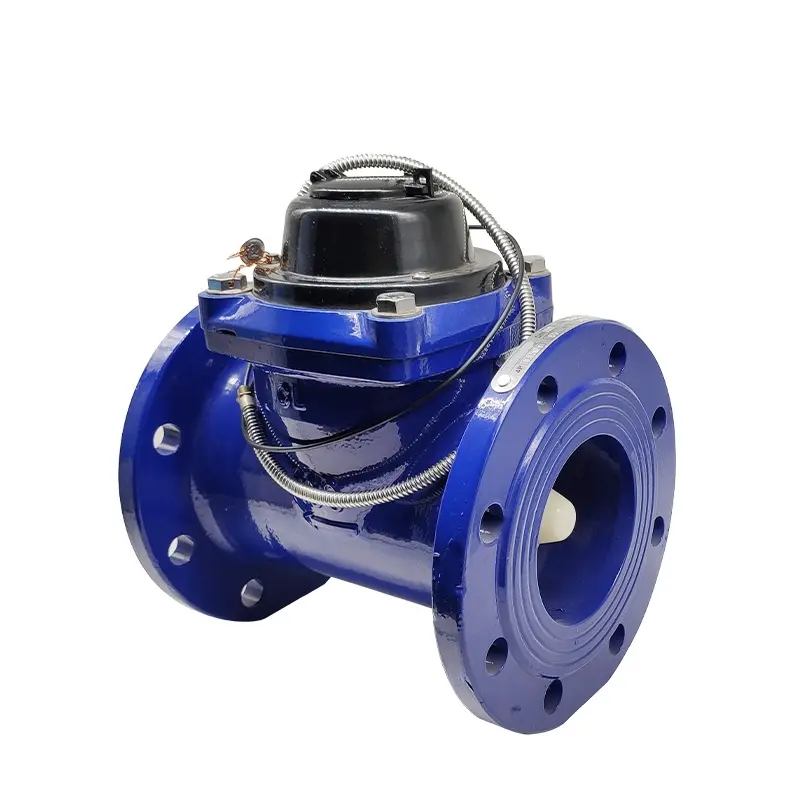

The Akvodrops AD-WWM DN250 is a Woltman-type mechanical water meter with pulse output designed for bulk cold-water measurement in 250 mm pipelines. It features a dry-dial register with magnetic transmission, cast-iron body and flanged connection, making it suitable for large industrial facilities, municipal water networks, utilities and bulk water-distribution systems. The modular register design also allows maintenance without dismantling the complete pipeline meter.

The DN250 version supports a reed-switch pulse output of 1000 litres per pulse, allowing the mechanical meter to be connected to compatible pulse counters, data loggers or IoT monitoring equipment. Cellular, Wi-Fi and LoRaWAN data collection are optional integrations and require compatible external hardware; they are not built into the base mechanical meter.


₹ 64,290.00 64290.0 INR ₹ 64,290.00

₹ 64,290.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN250 is designed to measure bulk cold-water flow and consumption in 250 mm pipelines. It is suitable for municipal networks, industrial facilities, utilities and other large water-distribution applications.

The DN250 model supports a reed-switch pulse output of 1000 litres per pulse. Akvodrops specifies 1000 L/pulse for DN250–DN300, unlike the smaller DN80–DN200 models that offer 100 or 1000 L/pulse.

Yes. The reed-switch pulse signal can be connected to a compatible pulse counter, data logger or IoT communication device. Akvodrops lists Cellular, Wi-Fi and LoRaWAN data collection as optional integrations, meaning additional communication hardware is required.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
