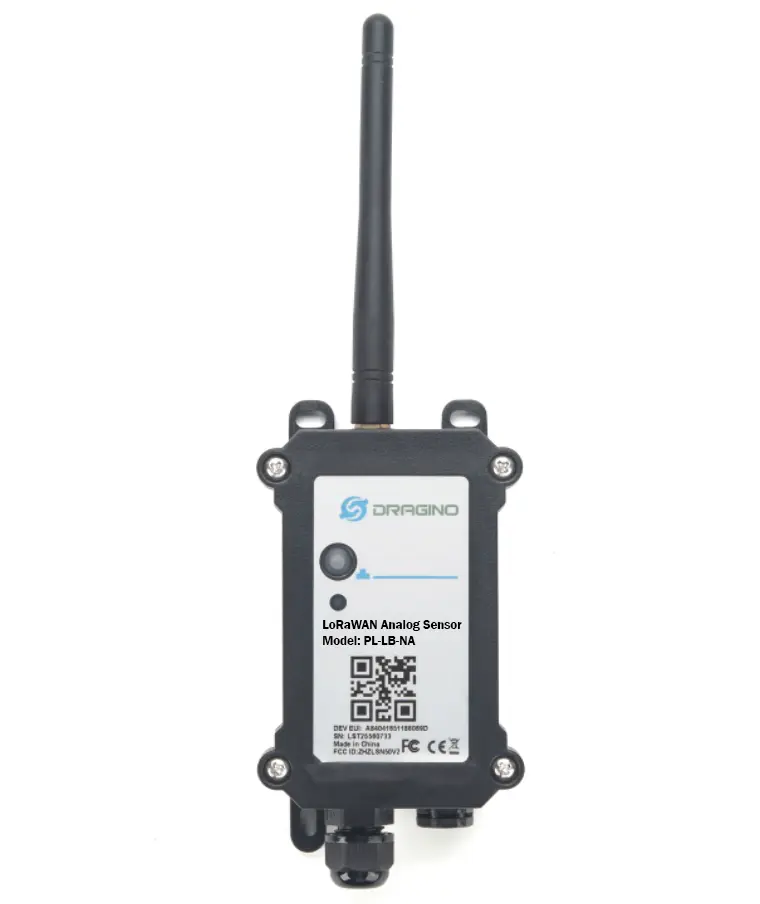

Dragino PS-LB-NA M20 LoRaWAN Analog Sensor Interface (Without Sensor)

https://www.aiotkart.com/web/image/product.template/17949/image_1920?unique=07e7aa9

Dragino PS-LB-NA M20 is a battery-powered LoRaWAN® analog sensor interface designed to connect conventional industrial analog sensors to long-range IoT networks. It provides one 0–20mA current input and one 0–30V voltage input, together with controllable 5V and 12V outputs for powering compatible external sensors. This variant features an M20 connector cable-entry hole and supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration, periodic uplinks and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, the PS-LB-NA M20 is suitable for integrating pressure, level, flow, temperature and other industrial analog sensors into LoRaWAN monitoring systems in India.

₹ 6,645.00 6645.0 INR ₹ 6,645.00

₹ 6,645.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 1 × 0~20mA analog current input
  • 1 × 0~30V analog voltage input
  • 5V and 12V output for external sensor power
  • Converts analog signals to LoRaWAN® data
  • Ultra-low power consumption
  • 8500mAh Li/SOCl2 battery for long-term use
  • Battery level monitoring
  • BLE v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Periodic uplink with configurable interval
  • Band support IN865 (India)

Micro Controller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Power Supply

  • Supply Voltage: 2.5V ~ 3.6V
  • Battery Type: Li/SOCl2 (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Operating Temperature: -40°C to 85°C

Analog Input Specifications

Current Input (DC):

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input:

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

LoRa Specifications

  • Frequency Range (Band 1 HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity
  • Supported Bands: IN865

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm
  • 82mA @ 14dBm

Package Includes

  • 1 × PS-LB-NA-M20 LoRaWAN® Analog Sensor

The Dragino PS-LB-NA-M20 LoRaWAN® Analog Sensor is suitable for:

  • Industrial automation and process control
  • Commercial infrastructure equipment monitoring
  • Water system pressure and tank level transmitters
  • Cold chain environmental monitoring transmitters
  • Manufacturing plant signal monitoring
  • Utility SCADA analog integration
  • Infrastructure monitoring projects
  • Campuses and institutional facilities

It enables reliable integration of 4–20mA and 0–30V industrial sensors into LoRaWAN®-based Industrial IoT systems across India.

You can purchase the Dragino PS-LB-NA-M20 LoRaWAN® Analog Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide delivery and industrial support.

Yes, it supports 0–20mA current input and 0–30V voltage input, making it compatible with standard industrial pressure, level, and flow transmitters.

Yes, with its 8500mAh battery, ultra-low power consumption, and IN865 band support, it is designed for long-term Industrial LoRaWAN® deployments across India.
