Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output

Price:

₹ 31,694.00
Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN150 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN150 Woltman Water Meter with Pulse Output
₹ 25,586.00
₹ 25,586.00
Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN250 Woltman Water Meter with Pulse Output
₹ 64,290.00
₹ 64,290.00

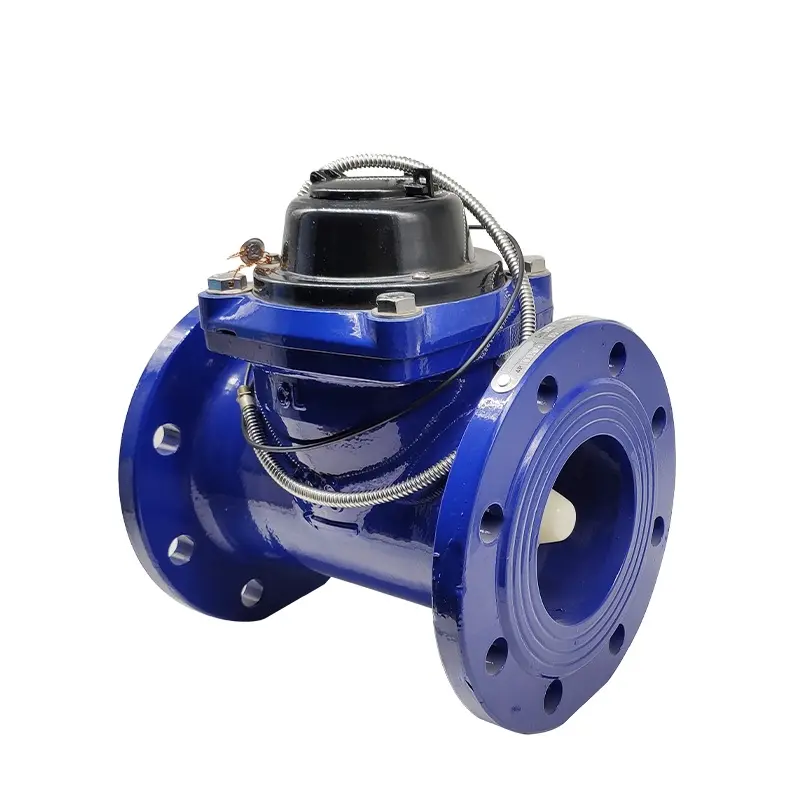

Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17973/image_1920?unique=4d0084f

The Akvodrops AD-WWM DN200 is a Woltman-type mechanical water meter with pulse output designed for bulk cold-water measurement in 200 mm pipelines. It combines a dry-dial register, magnetic-drive transmission, cast-iron body and flanged connection for reliable water-consumption measurement in industrial facilities, commercial infrastructure, utilities and large water-distribution networks. Akvodrops specifies the AD-WWM family for cold-water applications with a Class B accuracy classification.

The DN200 model includes a reed-switch pulse output for connection to compatible pulse counters, data loggers and remote monitoring systems. For AD-WWM sizes from DN80 to DN200, the manufacturer specifies selectable pulse positions of 100 or 1000 litres per pulse. Cellular, Wi-Fi and LoRaWAN monitoring are optional integrations and require compatible external data-acquisition hardware.


₹ 31,694.00 31694.0 INR ₹ 31,694.00

₹ 31,694.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN200 is designed to measure bulk cold-water flow and consumption in 200 mm pipelines. It is suitable for industries, utilities, municipal distribution systems, large commercial facilities and other high-flow water-monitoring applications.

The DN200 supports a reed-switch pulse output. Akvodrops specifies 100 L/pulse or 1000 L/pulse for AD-WWM sizes from DN80 through DN200.

Yes. Its pulse output can be connected to a compatible pulse counter, data logger or IoT communication device. Akvodrops lists cellular, Wi-Fi and LoRaWAN data collection as optional integrations; these wireless technologies are not built into the base mechanical water meter.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
