Akvodrops AD-WWM DN150 Woltman Water Meter with Pulse Output

Price:

₹ 25,586.00
Akvodrops AD-WWM DN150 Woltman Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-WWM DN150 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN125 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN125 Woltman Water Meter with Pulse Output
₹ 20,814.00
₹ 20,814.00
Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output
Akvodrops AD-WWM DN200 Woltman Water Meter with Pulse Output
₹ 31,694.00
₹ 31,694.00

Akvodrops AD-WWM DN150 Woltman Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17972/image_1920?unique=ba9f3c8

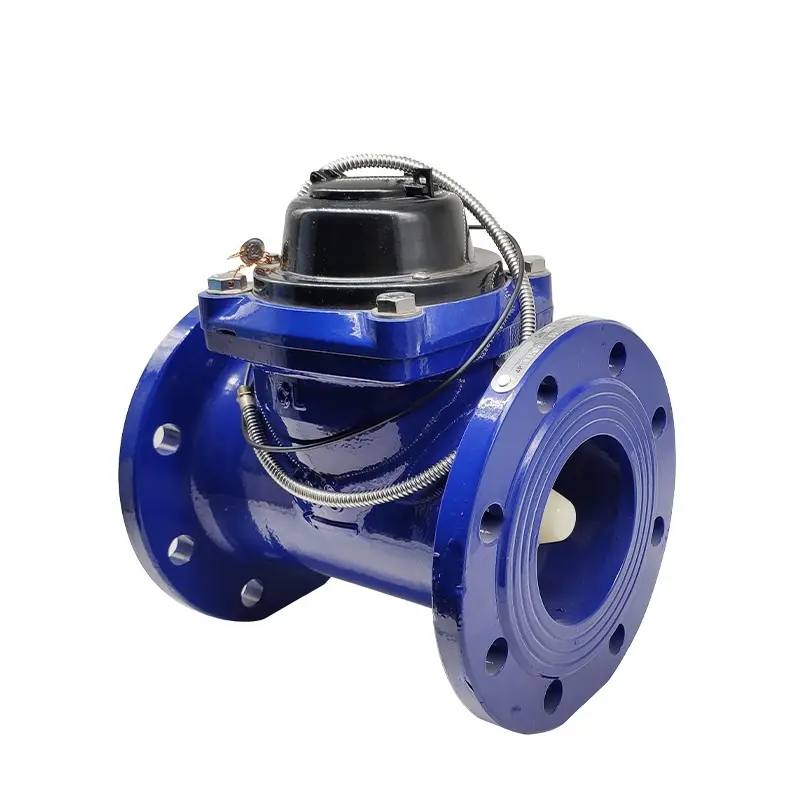

The Akvodrops AD-WWM DN150 is a Woltman-type mechanical water meter with pulse output designed for bulk cold-water measurement in 150 mm pipelines. It combines a dry-dial register, magnetic-drive transmission, cast-iron body and flanged connection for reliable water-consumption measurement in industrial facilities, commercial buildings, utility networks and large water-distribution systems.

The DN150 model also supports a reed-switch pulse output for connection to compatible pulse counters, data loggers and remote IoT monitoring equipment. For AD-WWM sizes from DN80 to DN200, Akvodrops specifies 100 or 1000 litres per pulse. Cellular, Wi-Fi and LoRaWAN data collection are optional and require compatible external communication hardware.


₹ 25,586.00 25586.0 INR ₹ 25,586.00

₹ 25,586.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-WWM DN150 is designed for measuring bulk cold-water flow and consumption in 150 mm pipelines. It is suitable for industries, utilities, commercial facilities, municipal networks and other large water-distribution systems.

The DN150 uses a reed-switch pulse output. Akvodrops specifies 100 L/pulse or 1000 L/pulse for AD-WWM sizes from DN80 through DN200.

Yes. Its pulse output can be connected to a compatible pulse counter, data logger or IoT communication device. Akvodrops lists cellular, Wi-Fi and LoRaWAN data collection as optional integrations, but these communication technologies are not built into the base mechanical water meter.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
