SCT036-600 600A/50mA Split-Core Current Sensor

https://www.aiotkart.com/web/image/product.template/18395/image_1920?unique=631154a
SCT036-600 is a split-core current transformer designed for non-invasive AC current monitoring with the Dragino CS01-LB LoRaWAN Current Sensor Converter. It provides a 600A/50mA current-transformer ratio, a Ø36mm conductor aperture, approximately ±0.5% intrinsic clamp accuracy and a 100cm connection cable. Its split-core construction allows installation around an existing conductor without disconnecting the wiring, making it suitable for electrical load monitoring, machine operating-status detection and power-consumption trend analysis. When connected to the CS01-LB, measured current data can be transmitted to an IoT platform over LoRaWAN for remote monitoring and current alarms.

₹ 2,400.00 2400.0 INR ₹ 2,400.00

₹ 2,400.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • Split-core current transformer for non-invasive installation
  • Rated specification: 600A / 50mA
  • 36 mm (φ36mm) aperture for large conductors
  • High measurement accuracy up to 1%

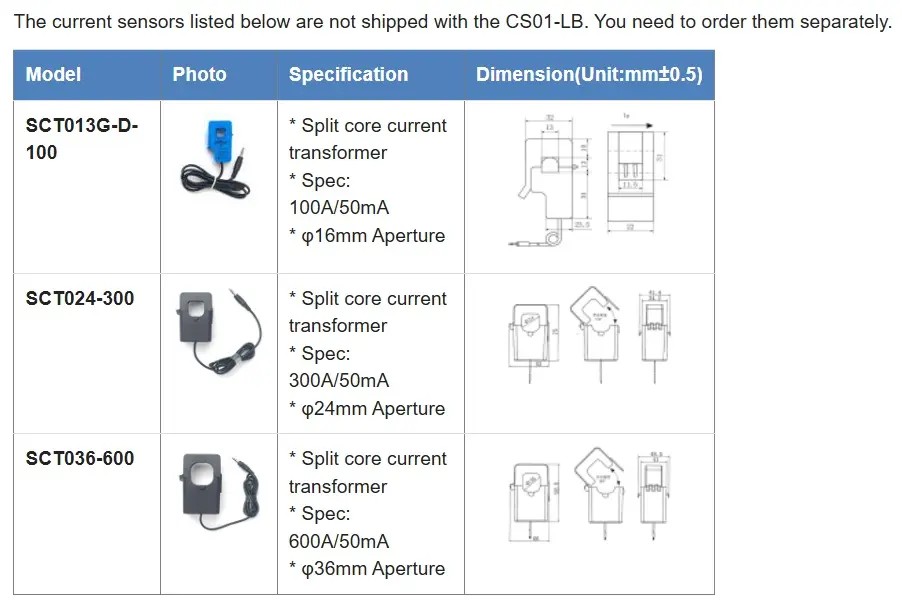

  • Compatible with Dragino CS01-LB LoRaWAN® Current Sensor
  • Safe clamp-on installation without disconnecting cables
  • Suitable for high-load industrial applications
  • Durable construction for electrical panel environments

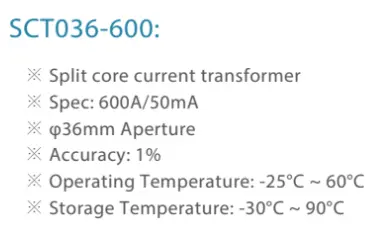

  • Model: SCT036-600
  • Brand: Dragino
  • Product Type: Split-Core Current Transformer
  • Rated Current: 600A
  • Output: 50mA
  • Aperture Size: 36mm (φ36mm)
  • Accuracy: ±1%
  • Operating Temperature: -25°C to 60°C
  • Storage Temperature: -30°C to 90°C
  • Installation Type: Clamp-on (Non-invasive)
  • Compatibility: Dragino CS01-LB LoRaWAN® Current Sensor

The Dragino SCT036-600 current sensor is ideal for:

  • Industrial automation and heavy machinery current monitoring
  • Commercial infrastructure and facility energy management
  • Water systems and high-capacity pump load monitoring
  • Cold chain warehouses and large refrigeration systems
  • Manufacturing plants with high current electrical loads
  • Utilities and distributed power monitoring systems
  • Infrastructure projects requiring retrofit CT installation
  • Campuses & institutions implementing smart energy management

You can purchase the genuine Dragino SCT036-600 from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and support for industrial and institutional projects.

Yes. When connected to the Dragino CS01-LB LoRaWAN® Current Sensor, the SCT036-600 enables long-range LPWAN-based monitoring of high-current industrial and commercial electrical systems across India.

Yes. Its 36mm split-core clamp-on design allows safe installation around large conductors without disconnecting the power supply, making it ideal for heavy industrial applications.

Documents

User Manual
Download

CS01-LB/LS Data Sheet

Download
