SCT024-300 300A/50mA Split-Core Current Sensor

https://www.aiotkart.com/web/image/product.template/18394/image_1920?unique=55d8b7b

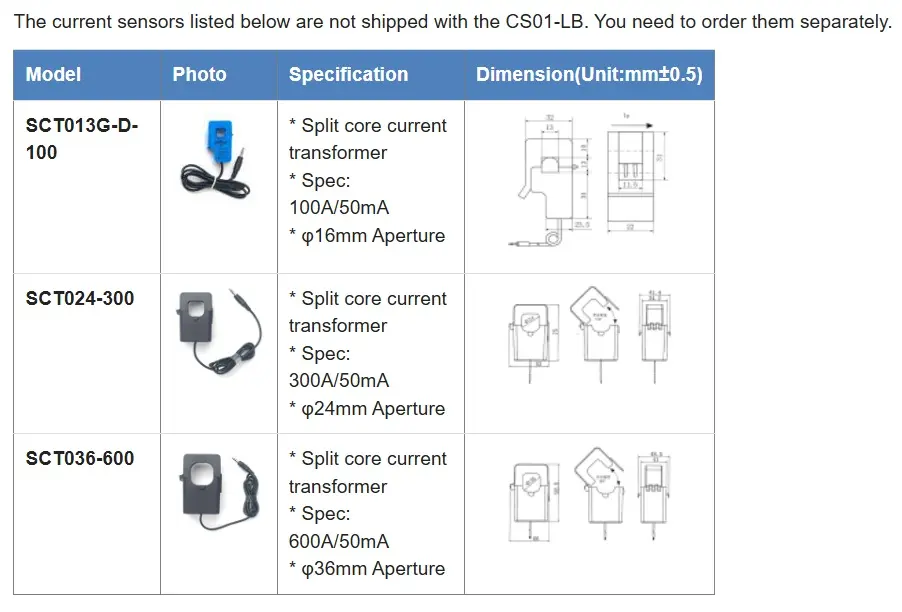

SCT024-300 is a split-core current transformer designed for non-invasive electrical current monitoring with the Dragino CS01-LB LoRaWAN Current Sensor Converter. It provides a 300A/50mA current-transformer ratio, a Ø24mm conductor aperture, approximately ±0.5% intrinsic sensor accuracy and a 100cm connection cable. Its split-core design allows installation around an existing conductor without disconnecting the wiring, making it suitable for machine operating-status monitoring, electrical load measurement and power-consumption trend analysis. When connected to the CS01-LB, measured current data can be transmitted to an IoT platform over LoRaWAN for remote monitoring and current alarms.

₹ 2,300.00 2300.0 INR ₹ 2,300.00

₹ 2,300.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Split-core current transformer for non-invasive installation
  • Rated specification: 300A / 50mA
  • 24 mm (φ24mm) aperture for larger conductors
  • High measurement accuracy up to 1%
  • Designed for Dragino CS01-LB LoRaWAN® Current Sensor
  • Safe clamp-on installation without wire disconnection
  • Durable design suitable for industrial panels
  • Ideal for high-load current monitoring applications

  • Model: SCT024-300
  • Brand: Dragino
  • Product Type: Split-Core Current Transformer
  • Rated Current: 300A
  • Output: 50mA
  • Aperture Size: 24mm (φ24mm)
  • Accuracy: ±1%
  • Operating Temperature: -25°C to 60°C
  • Storage Temperature: -30°C to 90°C
  • Installation Type: Clamp-on (Non-invasive)
  • Compatibility: Dragino CS01-LB LoRaWAN® Current Sensor

The Dragino SCT024-300 current transformer is suitable for:

  • Industrial automation and heavy machinery current monitoring
  • Commercial infrastructure energy management
  • Water systems and pump load monitoring
  • Cold chain warehouses and refrigeration power tracking
  • Manufacturing plants with high current loads
  • Utilities and distributed power systems
  • Infrastructure projects requiring retrofit CT installation
  • Campuses & institutions implementing smart energy monitoring

You can purchase the genuine Dragino SCT024-300 from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and institutional project support.

Yes. When connected to the Dragino CS01-LB LoRaWAN® Current Sensor, the SCT024-300 enables long-range LPWAN-based monitoring of high-current industrial and commercial electrical loads across India.

Yes. Its split-core clamp-on design and 24mm aperture allow installation around existing conductors without disconnecting the power supply, making it ideal for retrofit applications.

Documents

User Manual
Download

CS01-LB/LS Data Sheet

Download
