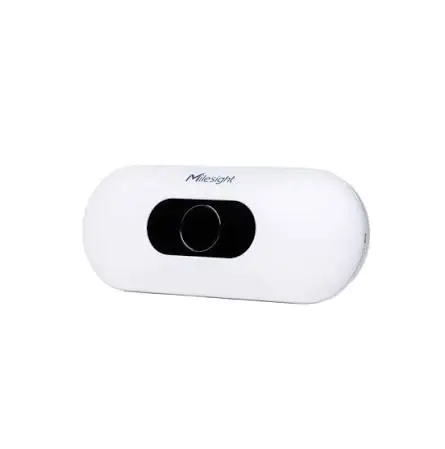

Milesight VS133-P AI ToF People Counting Sensor

https://www.aiotkart.com/web/image/product.template/18407/image_1920?unique=e4daf23
Milesight VS133-P is an AI ToF People Counting Sensor designed for highly accurate, privacy-focused footfall and occupancy monitoring. Combining second-generation Time-of-Flight (ToF) technology with AI algorithms, it can distinguish people from non-human objects and achieve counting accuracy of up to 99.8%.

The VS133-P supports bi-directional people counting, regional counting, dwell-time detection, group counting, staff detection, adult and child differentiation, shopping-cart analysis and heat maps. It transmits data through an Ethernet connection with PoE and supports integration protocols including HTTP, MQTT and BACnet/IP, making it suitable for retail stores, shopping malls, offices, transportation facilities and smart-building applications.

₹ 69,660.00 69660.0 INR ₹ 69,660.00

₹ 69,660.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Up to 99.8% people-counting accuracy
  • Second-generation Time-of-Flight (ToF) technology
  • Onboard AI algorithm for distinguishing people from non-human objects
  • Up to 4 bi-directional counting lines
  • Up to 4 regional detection areas
  • Regional people counting and dwell-time detection
  • Smart U-turn filtering to reduce duplicate counts
  • Adult and child differentiation
  • Staff detection
  • Group counting
  • Shopping-cart and cart fill-level detection
  • Motion heat map and dwell heat map
  • Multi-device stitching for up to 4 devices
  • Works in low-light and completely dark environments
  • Privacy-focused operation without identifiable image capture
  • Local storage and data retransmission support
  • Ethernet connectivity with PoE
  • Supports HTTP/HTTPS, MQTT/MQTTS and BACnet/IP
  • Web-based configuration through Ethernet
  • Supports Milesight DeviceHub and Milesight Development Platform
  • Brand: Milesight
  • Model: VS133-P
  • Product Type: AI ToF People Counting Sensor
  • Sensing Technology: 2nd Generation Time-of-Flight + AI
  • Counting Accuracy: Up to 99.8%
  • ToF Field of View: 98° Horizontal × 80° Vertical
  • ToF Light: 940nm invisible light
  • Distance Measuring Accuracy: ±3.5cm
  • Detection Range: 0.5–3.5m
  • Installation Height: Up to 3.5m
  • Bi-Directional Counting: Up to 4 counting lines
  • Regional Counting: Up to 4 detection areas
  • Dwell-Time Detection: Supported
  • Group Counting: Supported
  • Adult / Child Differentiation: Supported
  • Staff Detection: Supported
  • Shopping Cart Detection: Supported
  • Occlusion Detection: Supported
  • Heat Map: Motion Heat Map / Dwell Heat Map
  • Multi-Device Stitching: Up to 4 devices
  • Local Storage: Up to 1,000,000 data records
  • Data Export: CSV
  • Ethernet: 1 × RJ45 10/100 Mbps
  • Power: 802.3at PoE+
  • Network Protocols: HTTP(S), MQTT(S), NTP, 802.1x, SSH, LLDP, BACnet/IP
  • VPN: OpenVPN
  • Alarm I/O: 1 Input / 1 Output
  • RS485: 1 × RS485 — listed by Milesight as under development
  • Power Consumption: Typical 9.4W; Maximum 23.8W
  • Operating Temperature: -20°C to +50°C
  • Humidity: 0–95% RH, non-condensing
  • Ingress Protection: IP40

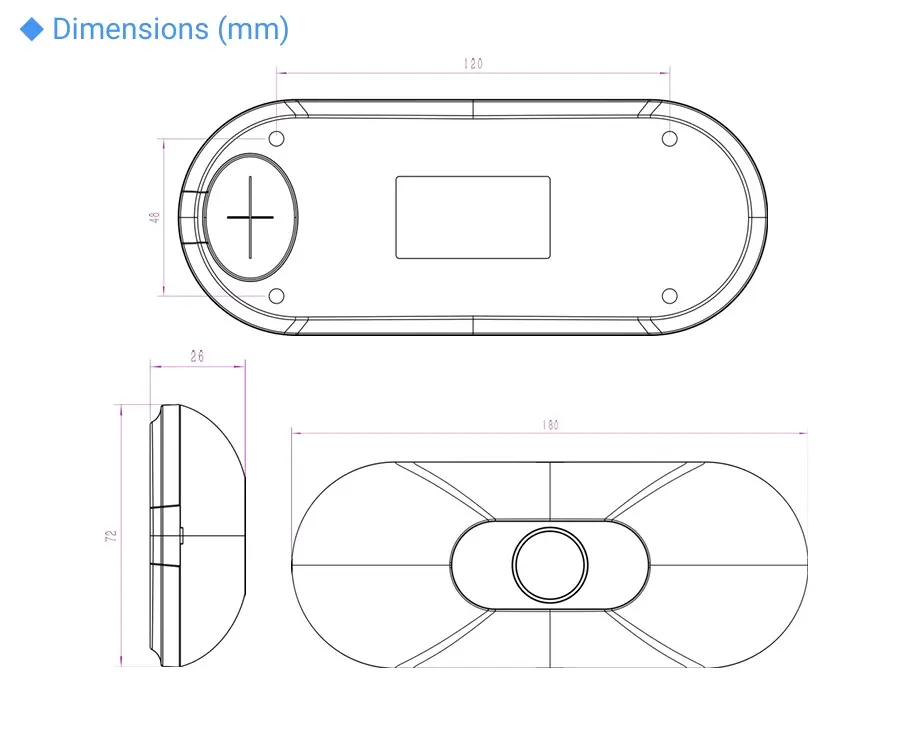

  • Dimensions: 180 × 26 × 72mm
  • Weight: 226g
  • Housing: PC + Aluminium Alloy
  • Installation: Ceiling, Extended Ceiling or Lintel Mounting
  • Compliance: CE, FCC, GDPR, RoHS
  • Retail stores and supermarkets
  • Shopping malls
  • Office buildings
  • Smart building occupancy monitoring
  • Visitor and footfall counting
  • Queue and waiting-area monitoring
  • Airports and transportation facilities
  • Subway and railway stations
  • Museums and public facilities
  • Libraries and educational facilities
  • Regional occupancy analysis
  • Customer traffic and dwell-time analysis
  • Store traffic heat mapping
  • Space-utilization monitoring
  • Entrance and corridor people counting

The Milesight VS133-P can achieve people-counting accuracy of up to 99.8% by combining second-generation ToF sensing with AI algorithms. The AI helps distinguish people from non-human objects even in complex traffic conditions.

No. The VS133-P uses ToF depth information rather than conventional identifiable image capture for people counting. Milesight positions the device as a privacy-focused and GDPR-compliant people-counting solution.

The VS133-P uses a 10/100 Mbps Ethernet connection with 802.3at PoE+ for power and data. It supports protocols including HTTP/HTTPS, MQTT/MQTTS and BACnet/IP, allowing integration with IoT, analytics and building-management applications.

Documents

vs133-p-datasheet-en.pdf

Download
