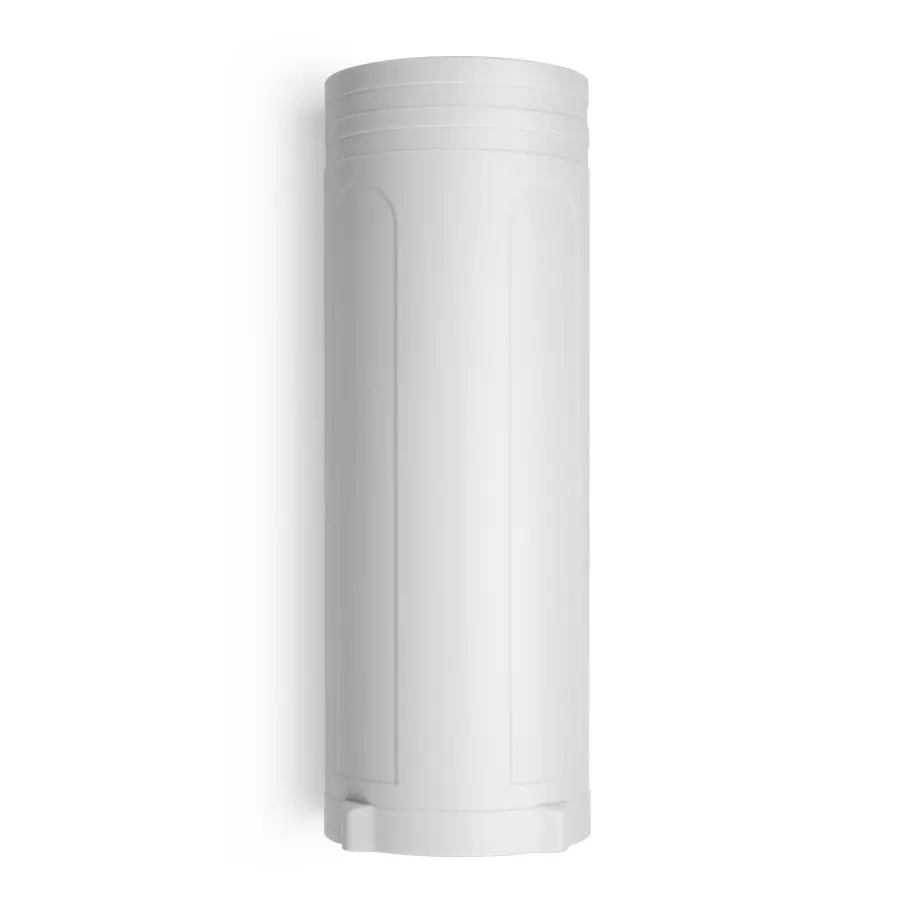

Dragino DLOS8N-EC25 Outdoor 4G LoRaWAN Gateway

https://www.aiotkart.com/web/image/product.template/17657/image_1920?unique=2cea39d

Dragino DLOS8N-EC25 is an outdoor 4G LoRaWAN® Gateway designed for reliable long-range IoT connectivity in industrial, smart-city, agriculture and infrastructure deployments. It uses an SX1302 LoRaWAN concentrator with two SX1250 transceivers and supports Ethernet, WiFi and EC25 cellular connectivity for flexible network backhaul. The gateway supports Semtech UDP Packet Forwarder, LoRaWAN Station, MQTTS, auto-provisioning and remote monitoring, while its open-source Embedded Linux system can be managed through Web GUI or SSH. With IP65 protection, IEEE 802.3af PoE, an IN865 frequency option and the EC25-E cellular variant supporting India, the DLOS8N-EC25 is well suited for outdoor LoRaWAN deployments requiring dependable remote connectivity.


₹ 42,570.00 42570.0 INR ₹ 42,570.00

₹ 42,570.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino DLOS8N-EC25 Outdoor LoRaWAN® Gateway
  • SX1302 + 2 × SX1250 LoRaWAN® concentrator
  • Multi-channel LoRaWAN® support
  • Supports Semtech UDP & LoRaWAN® Station
  • Direct communication with ABP LoRaWAN® nodes
  • Ethernet, WiFi, 3G & 4G connectivity
  • IEEE 802.3af PoE support
  • IP65 rated outdoor enclosure
  • Built-in GPS for timing & location
  • Lightning protection & industrial design
  • Auto-provisioning for mass deployment
  • Remote monitoring via Web GUI & SSH

LoRaWAN® Performance

  • Sensitivity: Up to -140 dBm
  • 49 LoRa demodulators + 1 (G)FSK demodulator emulation
  • 10 programmable parallel demodulation paths
  • 70 dB CW interferer rejection @ 1 MHz offset
  • Dynamic Data Rate (DDR) adaptation
  • Dual TX/RX front-end interfaces
  • Antenna diversity / dual-band operation
  • LoRa Concentrator: SX1302 + 2 × SX1250

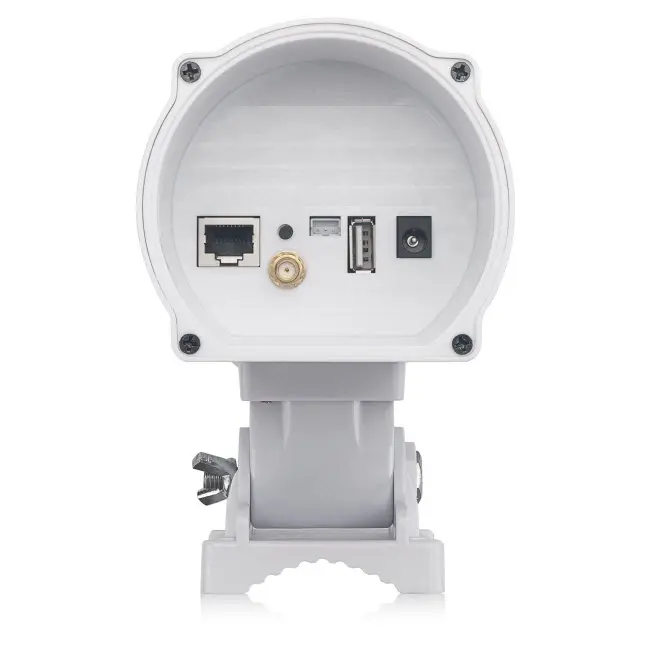

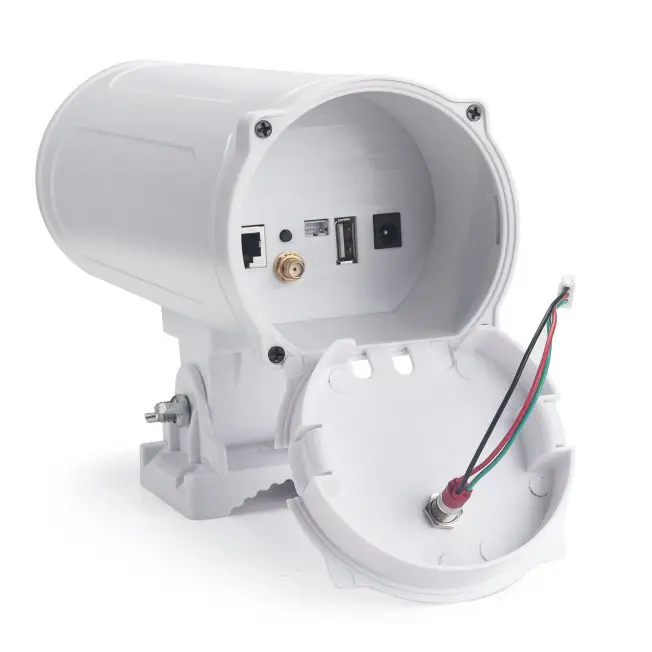

Interfaces

  • 1 × 10/100M RJ45 Ethernet Port
  • WiFi 802.11 b/g/n
  • USB 2.0 Host Port
  • Mini-PCIe Connector
  • LoRaWAN Wireless
  • External Fiber Glass Antenna

Power & Environmental

  • Power Input: 12–24V DC, 2A
  • IEEE 802.3af PoE (37–57V DC)
  • Power Consumption: 12V, 300–500mA
  • Operating Temperature: -20°C to 85°C
  • IP65 Outdoor Protection
  • Lightning Protection

Physical Specifications

  • Package Size: 490 × 120 × 190 mm
  • Net Weight: 1.7 kg
  • Volume Weight: 2.5 kg

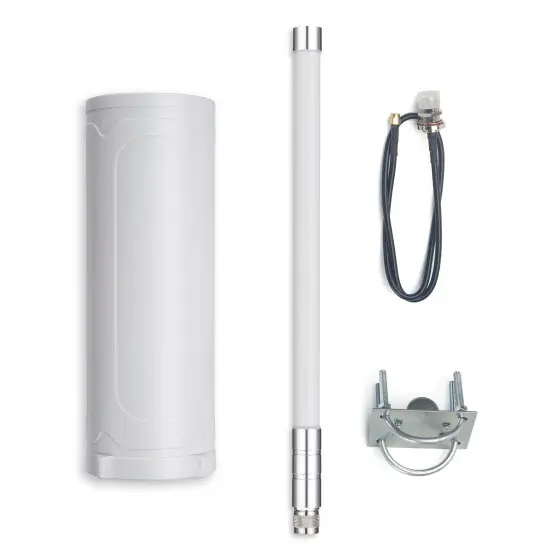

Package Includes

  • 1 × Dragino DLOS8N-EC25 Gateway
  • 1 × Fiber Glass Antenna
  • 1 × Power Adapter
  • Environmental packaging

The Dragino DLOS8N-EC25 Outdoor LoRaWAN® Gateway is suitable for large-scale outdoor Industrial IoT deployments in India, including:

  • Industrial automation and manufacturing zones
  • Commercial infrastructure and facility monitoring
  • Smart buildings and institutional campuses
  • Water management and utility networks
  • Cold chain logistics hubs
  • Smart metering infrastructure
  • Agriculture and irrigation systems
  • Smart city and public infrastructure projects
  • Logistics and supply chain monitoring

You can purchase the genuine Dragino DLOS8N-EC25 in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India shipping, bulk pricing, and technical support for Industrial IoT deployments.

Yes. With its SX1302 concentrator, IP65 enclosure, PoE support, and high sensitivity performance, the DLOS8N-EC25 is ideal for large outdoor LoRaWAN® networks across industrial zones, utilities, and smart city infrastructure.

Not necessarily. The DLOS8N-EC25 can directly communicate with ABP LoRaWAN® end nodes without a LoRaWAN® server, or it can integrate with public or private LoRaWAN® platforms using Semtech UDP or LoRaWAN® Station.
