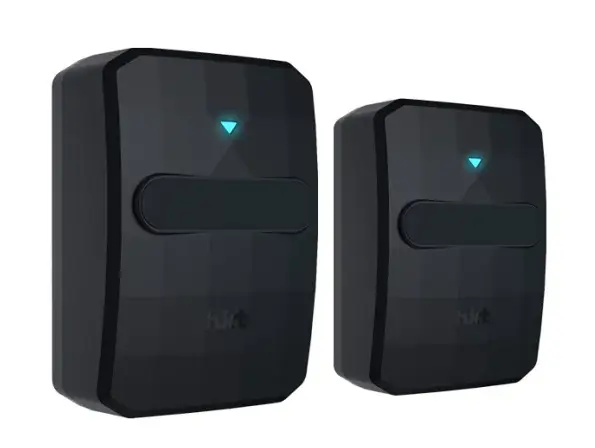

HKT PC-100 LoRaWAN Infrared People Counter

https://www.aiotkart.com/web/image/product.template/18405/image_1920?unique=79ad8f8

The HKT PC-100 is a battery-powered LoRaWAN® Infrared People Counter designed for remote footfall and visitor monitoring at entrances, corridors and passageways. It uses a transmitter and receiver with horizontal infrared sensing to count people moving through an entrance over a detection distance of up to 8 metres.

The PC-100 supports bi-directional people counting, long-range LoRaWAN communication and remote traffic monitoring through compatible IoT platforms. Its camera-free infrared technology makes it suitable for privacy-conscious applications such as retail stores, supermarkets, tourist attractions and other high-traffic locations.

₹ 9,360.00 9360.0 INR ₹ 9,360.00

₹ 9,360.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® infrared people counting
  • Horizontal infrared sensing technology
  • Bi-directional people counting
  • Up to 8m detection distance
  • Separate transmitter and receiver design
  • Battery-powered wireless operation
  • Long-range LoRaWAN communication
  • Supports private and public LoRaWAN networks
  • OTAA / ABP Class A operation
  • Anti-tamper alarm
  • Low-battery notification
  • Enhanced Noise Immunity (ENI)
  • Distortion indication
  • Remote people-count data monitoring
  • Server or serial-port configuration
  • Camera-free people counting
  • Suitable for indoor and outdoor applications
  • Easy installation using adhesive or screws
  • Brand: HKT
  • Model: PC-100
  • Product Type: LoRaWAN® Infrared People Counter
  • Sensing Technology: Horizontal Infrared
  • Counting Direction: Bi-Directional
  • Sensor Configuration: Transmitter + Receiver
  • Induction / Detection Distance: ≤8m
  • Wireless Protocol: Standard LoRaWAN®
  • LoRaWAN Mode: OTAA / ABP Class A
  • Transmit Power: 18.5 ±1dBm maximum
  • Receiver Sensitivity: -135 ±1dBm @ SF12
  • Configuration: Server or Serial Port
  • Reed Switch: 1 × Built-In Magnetic Reed Switch
  • LED Indicators: 4 × Red, Green, Blue and Orange
  • Software Functions: Anti-Tamper Alarm, Low-Battery Notification
  • Transmitter Battery: 1 × 4000mAh ER18505 Lithium Battery
  • Receiver Battery: 2 × 4000mAh ER18505 Lithium Batteries
  • Battery Life: More than 1 year at approximately 30 data uploads per day
  • Operating Temperature: -20°C to +60°C
  • Operating Humidity: ≤90% RH, Non-Condensing

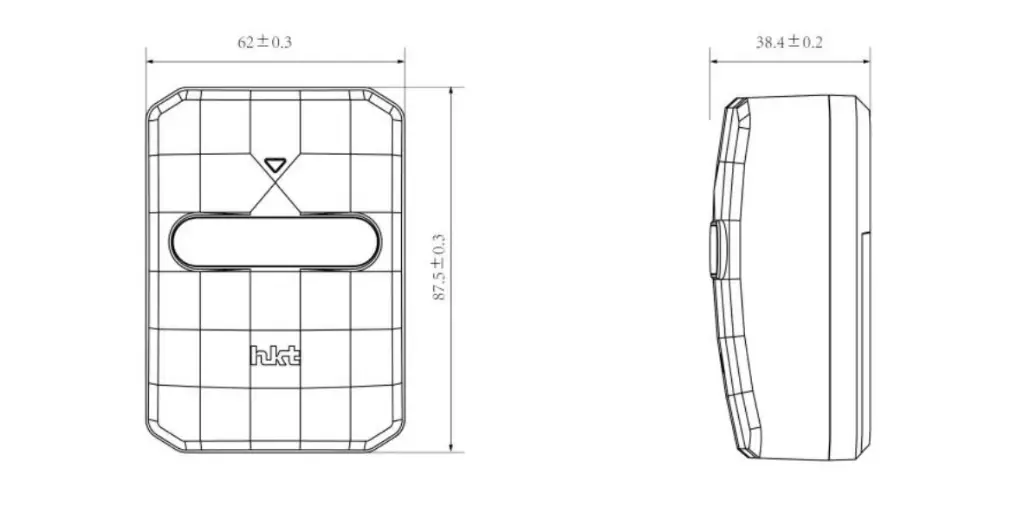

  • Transmitter Dimensions: 87.5 × 62 × 35mm
  • Receiver Dimensions: 87.5 × 62 × 35mm
  • Installation: 3M Adhesive or Screw Fixing
  • Recommended Installation Height: 0.8–1.3m
  • Recommended Height: Approximately 1.2m
  • Retail store footfall monitoring
  • Supermarket entrance people counting
  • Shopping-area visitor counting
  • Tourist attraction entrances
  • Museums and exhibition venues
  • Office entrance monitoring
  • Public-building entrances
  • Corridor and passage monitoring
  • Visitor traffic analysis
  • Smart building people counting
  • Remote pedestrian-flow monitoring
  • High-traffic entrance monitoring

The PC-100 uses a transmitter and receiver positioned opposite each other to create a horizontal infrared detection path. When a person crosses the infrared path, the system detects the movement and performs bi-directional people counting. The transmitter and receiver can be installed up to approximately 8 metres apart.

No. The PC-100 communicates using LoRaWAN, allowing people-count data to be transmitted over a compatible private or public LoRaWAN network without requiring Wi-Fi or direct 3G/4G connectivity at the sensor.

No. The HKT PC-100 uses horizontal infrared technology rather than camera-based image capture, making it suitable for applications where anonymous and privacy-conscious people counting is preferred.
