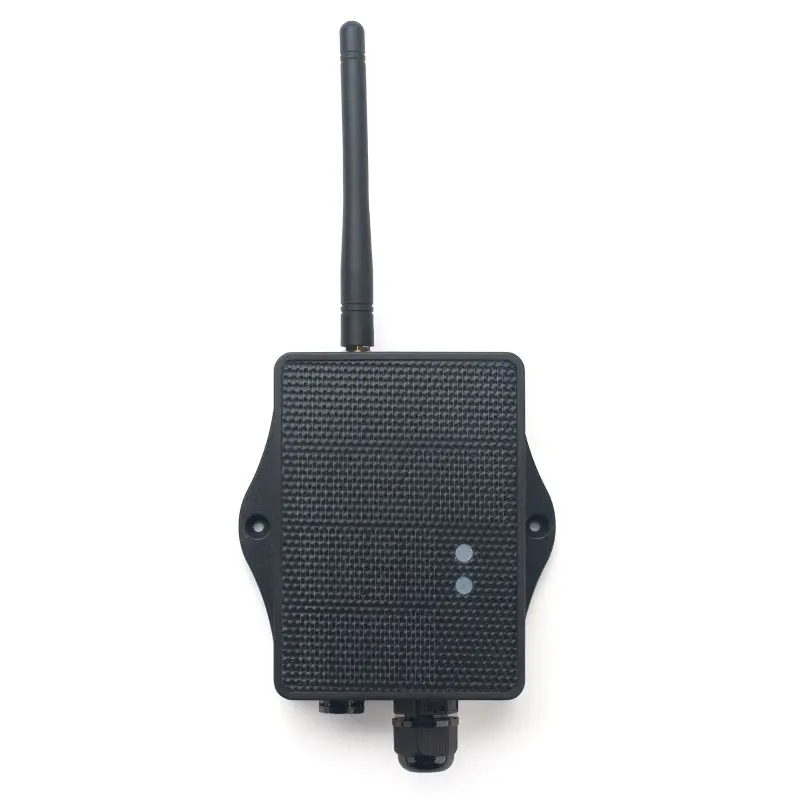

Dragino SDI-12-LS SDI-12 to LoRaWAN Converter

https://www.aiotkart.com/web/image/product.template/17764/image_1920?unique=3166358

Dragino SDI-12-LS is an SDI-12 to LoRaWAN® Converter designed to connect SDI-12 agriculture, weather and environmental sensors to long-range LoRaWAN networks. It supports LoRaWAN 1.0.3 Class A communication and provides controllable 5V and 12V outputs to power external SDI-12 sensors, enabling field data to be collected and transmitted wirelessly for remote monitoring. The solar-powered SDI-12-LS combines a solar panel with a 3000mAh rechargeable Li-ion battery and supports BLE configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IN865 frequency option available, it is well suited for smart agriculture, weather stations and environmental monitoring deployments in India.


₹ 7,412.00 7412.0 INR ₹ 7,412.00

₹ 7,412.00

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino SDI-12-LB/LS SDI-12 to LoRaWAN® Converter
  • LoRaWAN® 1.0.3 Class A compliant
  • Supports SDI-12 environmental sensors
  • Controllable 5V and 12V output for sensor power
  • Ultra-low power design for long-term deployment
  • 8500mAh Li-SOCI2 battery (LB version)
  • Solar panel + 3000mAh Li-ion battery (LS version)
  • Wireless BLE and LoRaWAN® remote configuration
  • OTA firmware upgrade support
  • Periodic uplink and configurable downlink
  • Battery level monitoring
  • Supports IN865 band

Microcontroller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in Battery)
  • Support Current Output: 5V 300mA, 12V 100mA
  • Operating Temperature: -40°C to 85°C

LoRaWAN® Performance

  • Frequency Band: 862 ~ 1020 MHz (Region dependent including IN865)
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Current Measurement

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Measurement

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery Specifications (LB Version)

  • Type: Li-SOCI2 (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode:
    • 125mA @ 20dBm
    • 82mA @ 14dBm

Physical Specifications

  • Device Size: 195 × 125 × 55 mm
  • Device Weight: 420g

Package Includes

  • Dragino SDI-12-LB or SDI-12-LS Converter

The Dragino SDI-12-LB/LS LoRaWAN® Converter is ideal for agricultural and environmental IoT deployments across India, including:

  • Smart agriculture monitoring
  • Weather station integration
  • Soil moisture and environmental sensing
  • Irrigation automation systems
  • Water resource monitoring
  • Cold chain monitoring in agri storage
  • Institutional agricultural research campuses
  • Utilities and environmental infrastructure projects

You can buy the genuine Dragino SDI-12-LB/LS in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India delivery, bulk pricing, and deployment assistance for agriculture and environmental IoT projects.

Yes. The device is designed to interface with SDI-12 protocol sensors and transmit data over LoRaWAN® networks, making it ideal for smart agriculture, irrigation systems, and environmental monitoring deployments.

The SDI-12-LB version uses an 8500mAh Li-SOCI2 battery for long-term standalone deployment, while the SDI-12-LS version includes a solar panel with a 3000mAh Li-ion battery for rechargeable field operation.

Documents

User Manual
 Download

SDI-12-LS_Datasheet

Download

SDI-12-LS_Firmware

Download
