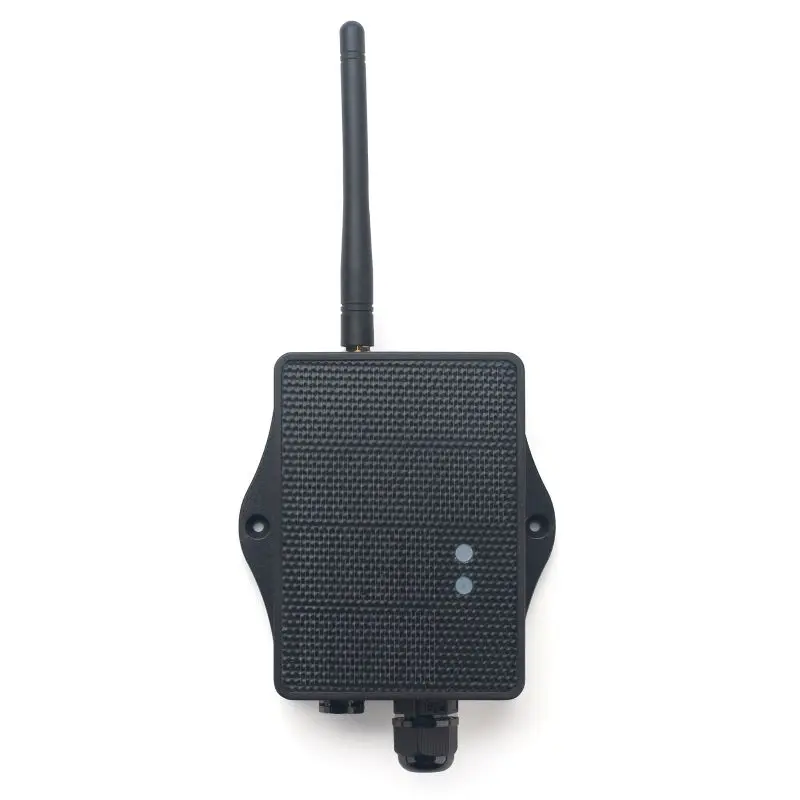

Dragino RS485W-LS-M12 Waterproof RS485/UART to LoRaWAN Converter

https://www.aiotkart.com/web/image/product.template/17758/image_1920?unique=781e025

Dragino RS485W-LS-M12 is a solar-powered waterproof RS485/UART to LoRaWAN® Converter designed to connect RS485, Modbus and UART sensors to long-range LoRaWAN networks for remote IoT monitoring. The RS485W-LS variant adds a controllable 12V output for powering compatible external sensors while retaining the standard RS485-LS communication and configuration functions. It supports multiple RS485 devices through configurable rules, Modbus protocol, 3.3V/5V UART sensors, interrupt uplinks, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. This M12 version uses a waterproof M12 cable entry and is powered by a solar panel with a 3000mAh rechargeable Li-ion battery. With LoRaWAN 1.0.3 Class A communication and IN865 frequency support, it is suitable for industrial, environmental and outdoor sensor-monitoring deployments in India.

₹ 7,740.00 7740.0 INR ₹ 7,740.00

₹ 7,740.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • RS485 / UART to LoRaWAN® Converter
  • Solar-powered with 3000mAh Li-ion battery
  • Rugged M12 industrial waterproof connector
  • IP67-rated enclosure for outdoor deployment
  • LoRaWAN® 1.0.3 Class A compliant
  • Supports IN865  band
  • Modbus protocol support
  • Flexible polling of multiple RS485 devices
  • Interrupt-triggered uplink capability
  • Controllable 2.6–3.6V battery output
  • +5V controllable output for external sensors
  • Ultra-low power consumption (5uA sleep mode)
  • Bluetooth v5.1 configuration
  • Wireless OTA firmware updates
  • AT command configuration
  • Periodic uplink & configurable downlink

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C

I/O Interfaces

  • 1 × RS485 Interface
  • 1 × UART Interface (3.3V / 5V)
  • 1 × Interrupt / Digital I/O
  • 1 × I2C Interface
  • 1 × One-Wire Interface
  • Battery controllable output (2.6–3.6V)
  • +5V controllable output

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands: IN865
  • Maximum RF Output: +22 dBm
  • RX Sensitivity: -139 dBm
  • High interference immunity

Battery (LS Version)

  • Integrated Solar Panel
  • 3000mAh Li-ion Rechargeable Battery
  • Designed for multi-year outdoor operation

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Device Size: 9.7 × 6.5 × 4.7 cm
  • Device Weight: 150g
  • Package Size: 14.0 × 8 × 5 cm
  • Package Weight: 180g

The Dragino RS485W-LS-M12 is ideal for:

  • Smart factory and industrial automation
  • Smart metering (water, energy, gas)
  • Agriculture automation & irrigation control
  • Smart buildings & facility management
  • Environmental monitoring systems
  • Logistics and supply chain tracking
  • Smart city infrastructure
  • Remote Modbus device integration

Yes, it features an IP67 enclosure and M12 industrial connector, making it ideal for harsh environments.

Yes, it supports Modbus protocol and flexible multi-device polling through user-defined rules.

Yes, the LS version includes an integrated solar panel with a 3000mAh Li-ion rechargeable battery for long-term field deployment.
