Dragino PS-LS-I100 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17744/image_1920?unique=a92b279

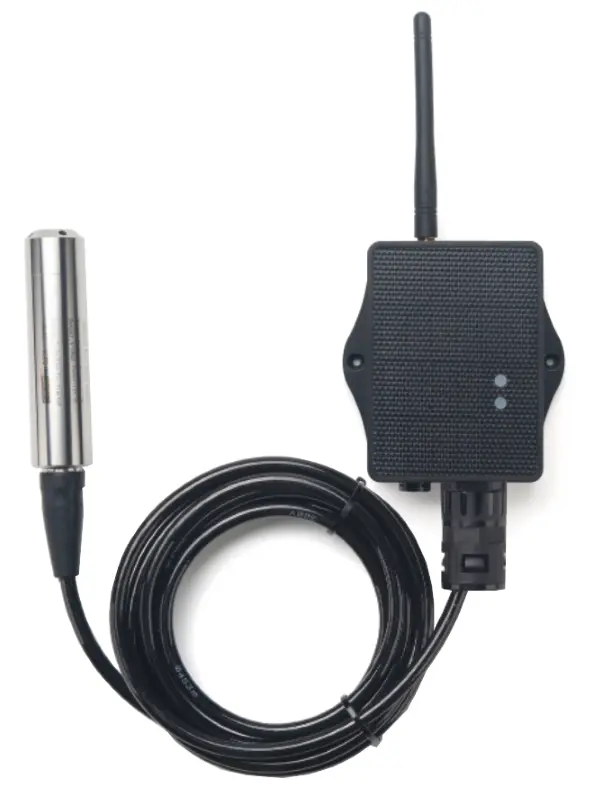

Dragino PS-LS-I100 is a solar-powered immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure monitoring in tanks, reservoirs, borewells and other water-management applications. The I100 variant uses an immersion pressure probe with a 100-meter cable, making it suitable for installations where the sensing point is located far below or away from the wireless transmitter. The PS-LS-I100 supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 frequency support, it is suitable for long-term outdoor pressure-monitoring deployments in India.

₹ 59,112.00 59112.0 INR ₹ 59,112.00

₹ 59,112.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino PS-LS-I100 LoRaWAN® Water / Liquid Pressure Sensor
  • Measures water, liquid, air, and gas pressure
  • LoRaWAN® 1.0.3 Class A compliant
  • Long-range LPWAN communication (IN865 supported for India)
  • Thread installation type and immersion type variants
  • Multiple pressure ranges available
  • Ultra-low power design for long-term deployment
  • BLE configuration via Bluetooth v5.1
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update support
  • Battery level monitoring
  • Solar panel + 3000mAh Li-ion battery (PS-LS version)
  • 8500mAh Li/SOCl2 battery option (PS-LB version)
  • Model: Dragino PS-LS-I100
  • Product Type: LoRaWAN® Water / Liquid Pressure Sensor
  • LoRaWAN® Version: 1.0.3 Class A
  • Frequency Bands: IN865
  • Microcontroller:
    • 48MHz ARM MCU
    • 256KB Flash
    • 64KB RAM
  • Measurement Capabilities:
    • Water pressure
    • Liquid level (pressure-based)
    • Air / gas pressure
  • Current Input Measuring:
    • Range: 0 ~ 20mA
    • Accuracy: 0.02mA
    • Resolution: 0.001mA
  • Voltage Input Measuring:
    • Range: 0 ~ 30V
    • Accuracy: 0.02V
    • Resolution: 0.001V
  • Power Supply Options:
    • 8500mAh Li/SOCl2 battery (PS-LB)
    • Solar panel + 3000mAh Li-ion battery (PS-LS)
  • Operating Temperature: -40°C to 85°C
  • Sleep Mode Consumption: 5uA @ 3.3V
  • Transmit Consumption: 125mA @ 20dBm

The Dragino PS-LS-I100 LoRaWAN® Pressure Sensor is suitable for wide deployment across India in:

  • Industrial automation and process monitoring
  • Water distribution and pipeline monitoring systems
  • Liquid storage tank level monitoring
  • Commercial infrastructure and building utilities
  • Cold chain and refrigeration systems
  • Manufacturing plants and production facilities
  • Municipal water utilities and infrastructure projects
  • Smart campuses and institutional buildings
  • Remote borewell and groundwater pressure monitoring

You can purchase the genuine Dragino PS-LS-I100 LoRaWAN® Water / Liquid Pressure Sensor from AIoTkart®, the Authorized Dragino Distributor in India. We offer PAN-India delivery and bulk support for commercial and industrial requirements.

Yes, the PS-LS-I100 supports the IN865 frequency band used for LoRaWAN® networks in India. It can be integrated with public or private LoRaWAN® gateways for long-range water and liquid pressure monitoring.

Yes, the PS-LS-I100 immersion type can be used for pressure-based liquid level monitoring in water tanks, borewells, industrial reservoirs, and storage systems.

Documents

User Manual
Download

PS-LS_Datasheet

Download

PS-LS_Firmware

Download
