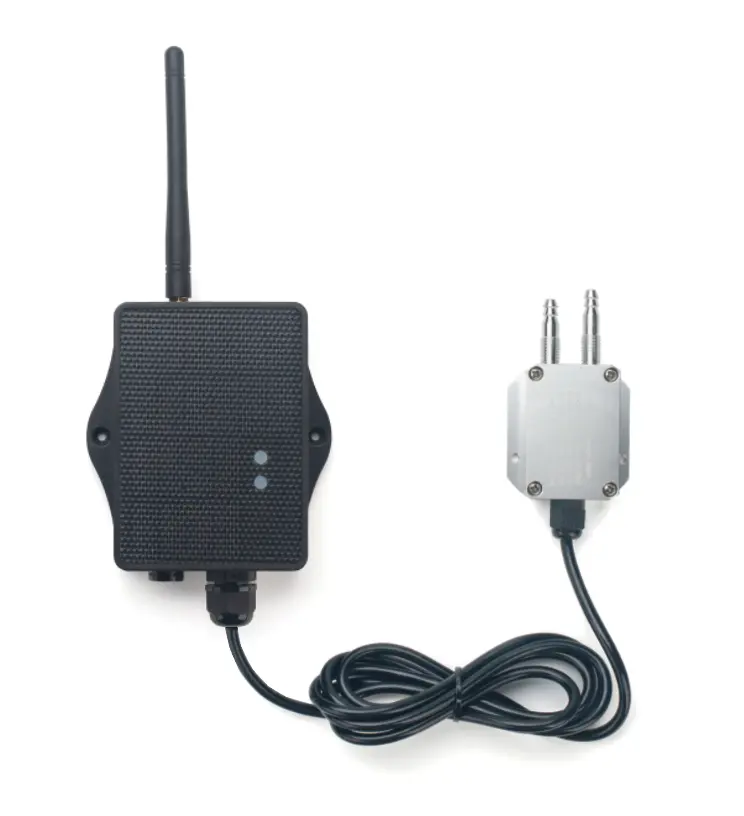

Dragino PS-LS-D04 LoRaWAN Differential Air Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17743/image_1920?unique=d4c006f

Dragino PS-LS-D04 is a solar-powered LoRaWAN® differential pressure sensor designed to measure the pressure difference between two air-pressure inputs in HVAC, filtration and industrial monitoring applications. The D04 variant provides a 0–1 kPa differential pressure measurement range, making it suitable for filter-clogging detection, indoor air control and other low-pressure monitoring requirements. The PS-LS-D04 supports LoRaWAN 1.0.3 Class A communication, periodic or alarm-based uplinks, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 support, it is suitable for long-term wireless differential-pressure monitoring deployments in India.

₹ 15,462.00 15462.0 INR ₹ 15,462.00

₹ 15,462.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino PS-LS-D04 LoRaWAN® Differential Air Pressure Sensor
  • Measures pressure difference between two input ports
  • LoRaWAN® 1.0.3 Class A compliant
  • Wide differential pressure range options (-100Pa to 100KPa)
  • Ultra-low power consumption design
  • Solar panel with 3000mAh Li-ion battery (PS-LS-D series)
  • 8500mAh Li/SOCl2 battery option (PS-LB-D series)
  • Bluetooth v5.1 support for configuration
  • Remote LoRaWAN® configuration & OTA firmware updates
  • Periodic uplink or alarm-triggered transmission
  • Battery level monitoring
  • Model: Dragino PS-LS-D04
  • Product Type: LoRaWAN® Differential Air Pressure Sensor
  • LoRaWAN® Version: 1.0.3 Class A
  • Frequency Bands: IN865
  • Microcontroller:
    • 48MHz ARM MCU
    • 256KB Flash
    • 64KB RAM
  • Differential Pressure Range:
    • Configurable from -100Pa to 100KPa
  • Current Input Measuring:
    • Range: 0 ~ 20mA
    • Accuracy: 0.02mA
    • Resolution: 0.001mA
  • Voltage Input Measuring:
    • Range: 0 ~ 30V
    • Accuracy: 0.02V
    • Resolution: 0.001V
  • Battery (PS-LS-D):
    • Solar panel + 3000mAh Li-ion battery
  • Battery (PS-LB-D):
    • 8500mAh Li/SOCl2 battery
    • Self-discharge: <1% per year @ 25°C
  • Operating Temperature: -40°C to 85°C
  • Sleep Mode Consumption: 5uA @ 3.3V
  • Transmit Consumption: 125mA @ 20dBm

The Dragino PS-LS-D04 Differential Pressure Sensor is suitable for multiple industrial and commercial applications across India:

  • Industrial automation systems for pressure monitoring
  • Commercial HVAC and air handling units
  • Indoor air control systems
  • Filter clogging detection in ventilation systems
  • Water treatment and pumping systems
  • Cold chain facilities and environmental control rooms
  • Manufacturing plants and process industries
  • Utilities and smart infrastructure projects
  • Campuses, hospitals, and institutional buildings

You can purchase the genuine Dragino PS-LS-D04 LoRaWAN® Differential Air Pressure Sensor from AIoTkart®, the Authorized Dragino Distributor in India. We provide PAN-India shipping and bulk supply support for commercial and industrial projects.

Yes, the PS-LS-D04 supports the IN865 frequency band used for LoRaWAN® deployments in India. It can connect to public or private LoRaWAN® gateways for long-range industrial monitoring applications.

The sensor is ideal for HVAC systems, filter clog detection, valve pressure monitoring, water systems, manufacturing plants, utilities, and institutional infrastructure where differential air pressure monitoring is critical.

Documents

User Manual
Download

PS-LS-D_Datasheet

Download

PS-LS_Firmware

Download
