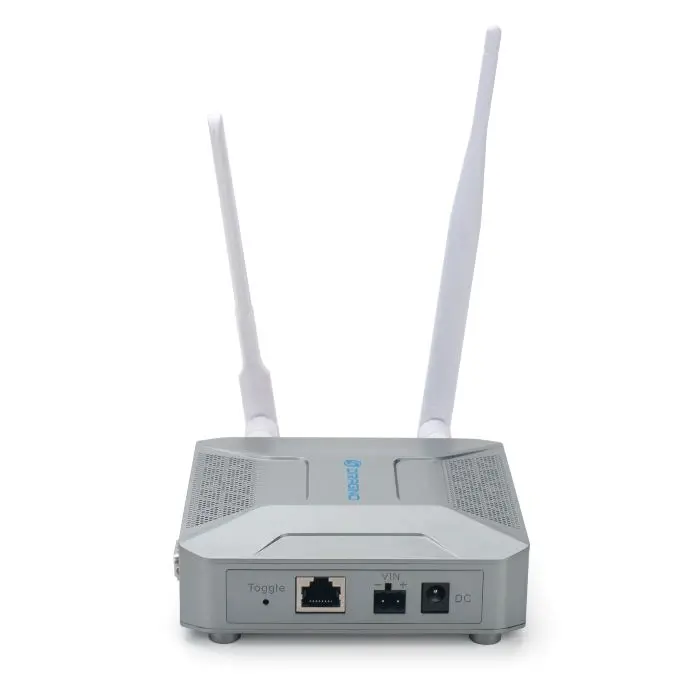

Dragino MS48-LR-EC25 LoRaWAN to Modbus Gateway

https://www.aiotkart.com/web/image/product.template/17722/image_1920?unique=d3d24a0

Dragino MS48-LR-EC25 is a LoRaWAN® to Modbus Gateway designed to integrate LoRaWAN sensor networks with Modbus RTU and Modbus TCP systems used in industrial automation and PLC applications. It includes a built-in ChirpStack LoRaWAN network server and Node-RED application server, allowing LoRaWAN device data to be decoded, mapped to Modbus registers and accessed directly by PLCs or other Modbus systems. The gateway runs an open-source Debian platform and supports Ethernet, WiFi, RS485, RS232 and optional EC25 cellular connectivity for flexible deployment. With remote management, auto-provisioning and an IN865 frequency option available, the MS48-LR-EC25 is well suited for industrial IoT and LoRaWAN-to-Modbus integration projects in India.


₹ 33,755.00 33755.0 INR ₹ 33,755.00

₹ 33,755.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • Industrial LoRaWAN® to Modbus Gateway
  • Built-in LoRaWAN® Network Server (ChirpStack)
  • Integrated IoT Application Server with Node-RED
  • Multi-channel LoRaWAN® wireless support
  • 10 programmable parallel demodulation paths
  • Ethernet, WiFi & 4G LTE connectivity
  • RS485 and RS232 interface for PLC integration
  • Open-source Debian operating system
  • Remote management via Web GUI & SSH
  • Auto-provisioning for batch deployment
  • Customizable LoRaWAN® regional frequency bands
  • Supports Semtech UDP, Basic Station & MQTT bridge

Hardware System

  • CPU: Quad-core Cortex-A7 1.2GHz
  • RAM: 512MB
  • Storage: 4GB eMMC

Network Interfaces

  • 1 × 10/100M RJ45 Ethernet Port
  • WiFi 802.11 b/g/n
  • 4G LTE Module (Quectel EC25)
  • Standard SIM Slot
  • 2 × 4G Antennas

Industrial Interfaces

  • 1 × RS485
  • 1 × RS232
  • 1 × USB 2.0 Host
  • 1 × Mini-PCIe Connector

LoRaWAN® Performance

  • Sensitivity up to -140 dBm (SX1250 front-end)
  • 49 LoRa demodulators + 1 (G)FSK demodulator emulation
  • 10 programmable parallel demodulation paths
  • Dynamic Data Rate (DDR) adaptation
  • Dual TX/RX radio front-end
  • Antenna diversity / dual-band operation
  • Operates with negative SNR (CCR up to 9dB)

Cellular

  • LTE Cat-4 support
  • Up to 150 Mbps downlink / 50 Mbps uplink
  • LTE, UMTS/HSPA+, GSM/GPRS/EDGE support
  • MIMO technology for link reliability

Operating Conditions

  • Operating Temperature: -20°C to 70°C
  • Storage Temperature: -20°C to 70°C
  • Power Input: 12V DC, 2A

The Dragino MS48-LR-EC25 LoRaWAN® Gateway is suitable for large-scale Industrial IoT and commercial automation deployments across India, including:

  • Industrial automation and PLC integration
  • Manufacturing plants and process industries
  • Commercial infrastructure monitoring
  • Smart buildings and campuses
  • Water monitoring and utility systems
  • Cold chain monitoring networks
  • Smart metering deployments
  • Agriculture and agri-automation
  • Logistics and supply chain visibility
  • Institutional infrastructure and smart city projects

You can buy the genuine Dragino MS48-LR-EC25 LoRaWAN® Gateway in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India shipping, bulk pricing, and technical deployment support.

Yes. The MS48-LR-EC25 is designed specifically to bridge LoRaWAN® devices with PLC systems using RS485 or RS232 Modbus interfaces, making it ideal for industrial automation and factory deployments in India.

Yes, the gateway supports 4G LTE module (Quectel EC25), enabling deployment in remote industrial sites, utilities, water systems, and infrastructure projects without wired internet access.

Documents

User Manual
 Download

MS48-LR_Datasheet

Download
