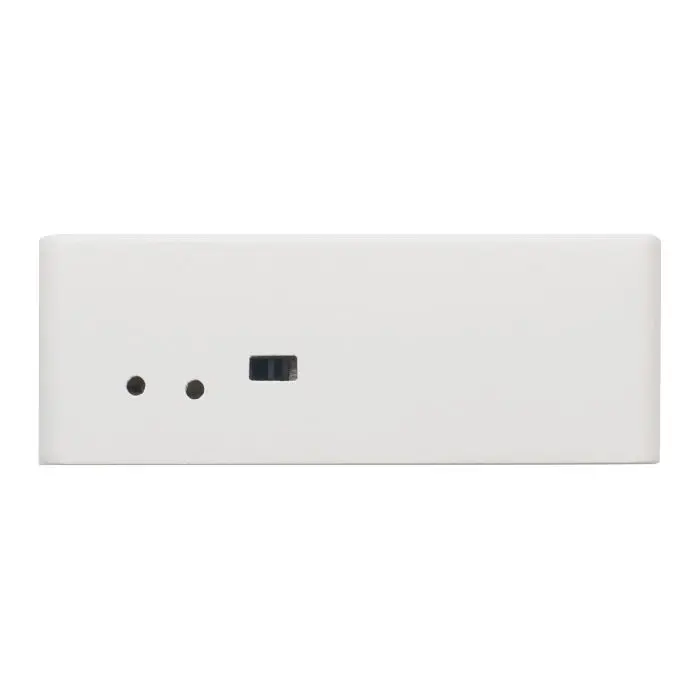

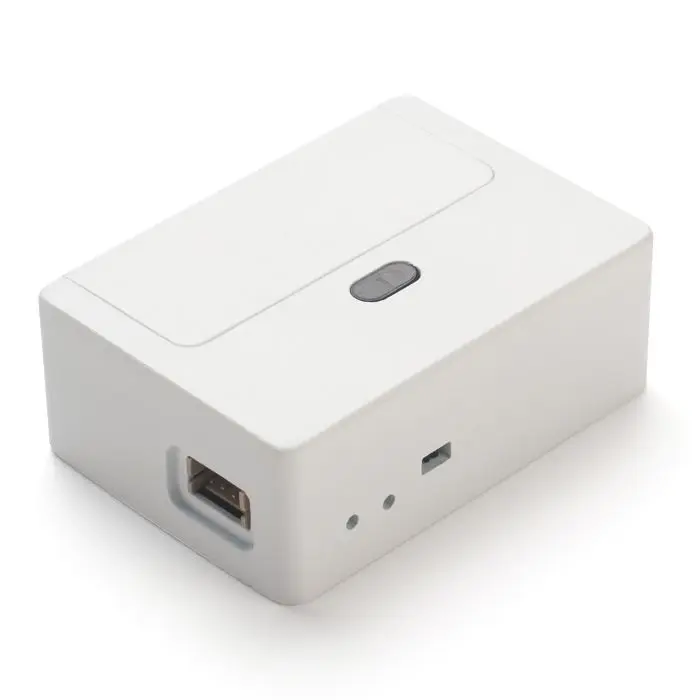

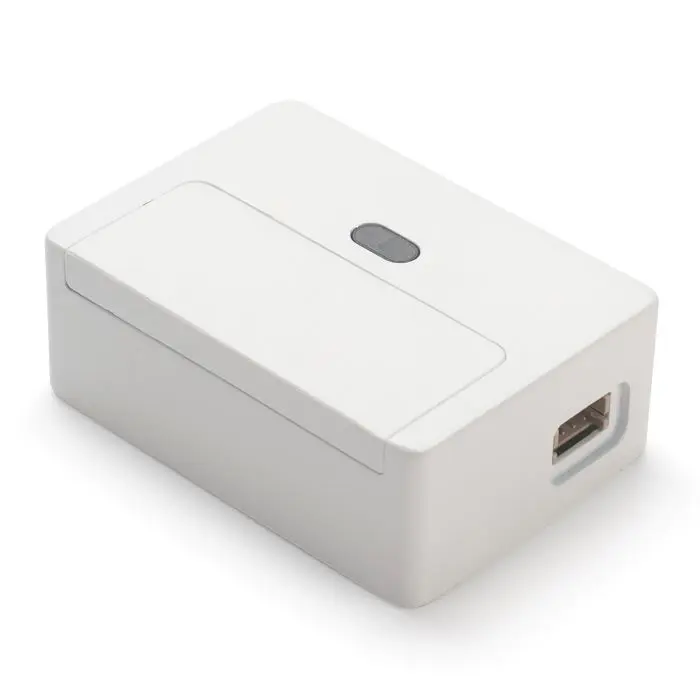

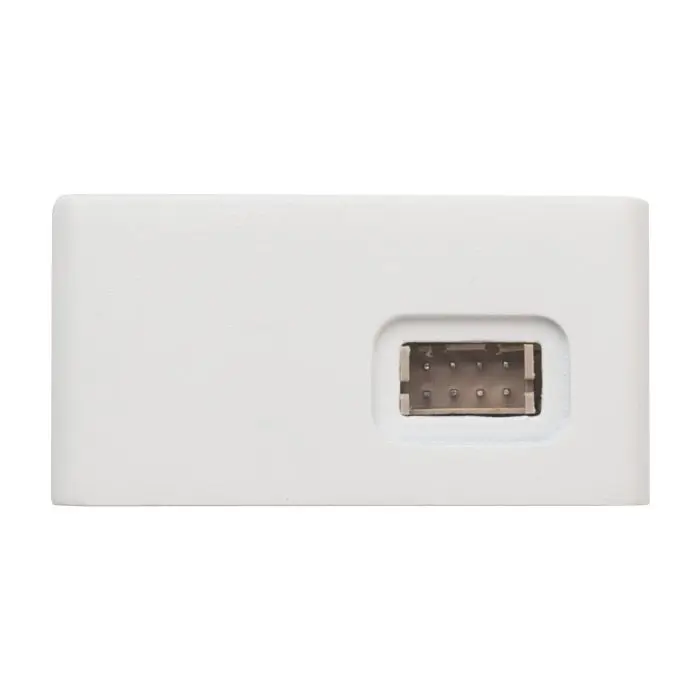

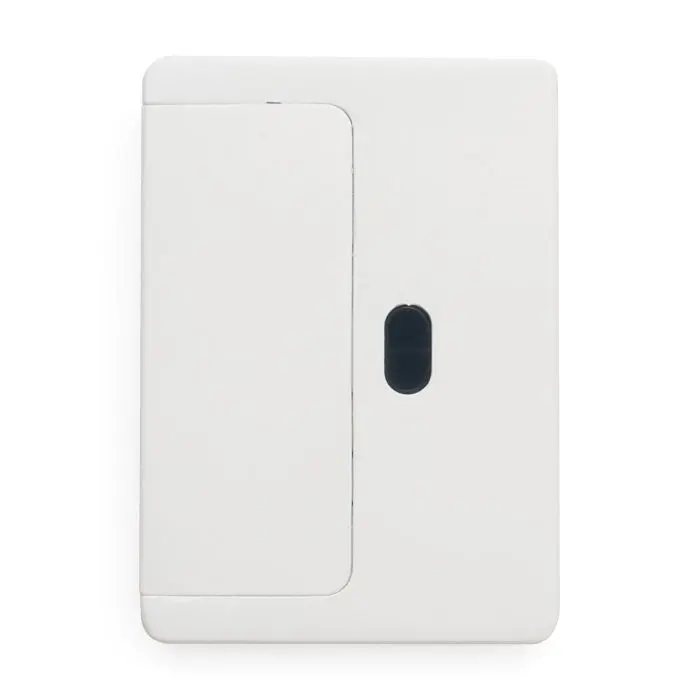

Dragino DS20L LoRaWAN LiDAR Distance Sensor

https://www.aiotkart.com/web/image/product.template/17676/image_1920?unique=4d8076d

Dragino DS20L is a LoRaWAN® LiDAR Distance Sensor designed for remote distance detection, object monitoring, counting and alarm applications. It uses LiDAR sensing technology to measure distances from 3 cm to 200 cm and transmits the measurement data to an IoT platform through LoRaWAN. The DS20L supports LoRaWAN v1.0.3 Class A communication and can operate in periodic or continuous detection modes, with dedicated alarm and counting functions for automation and monitoring applications. It includes a built-in 2400mAh non-rechargeable battery for long-term operation and can also be powered from an external source for continuous measurement. With an IN865 frequency option available, the DS20L is suitable for smart buildings, industrial automation, occupancy/object detection and smart-city IoT deployments in India.


₹ 5,040.00 5040.0 INR ₹ 5,040.00

₹ 5,040.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LiDAR ToF distance measurement (3cm to 200cm)
  • LoRaWAN® v1.0.3 Class A compliant
  • Compatible with IN865 and global frequency bands
  • Built-in 2400mAh battery for long-term use
  • Supports external power supply option
  • Periodic or continuous detection modes
  • Distance alarm & counting mode
  • Remote configuration via LoRaWAN® downlink
  • AT command configuration
  • Firmware upgrade via program port or LoRa protocol
  • High interference immunity with low power consumption

LiDAR Sensor Specifications

  • Measurement Range: 3cm ~ 200cm @ 90% reflectivity
  • Accuracy:
    • ±2cm (3cm ~ 100cm)
    • ±5% (100cm ~ 200cm)
  • Field of View (FoV): ±9° (Total 18°)
  • Light Source: VCSEL
  • Operating Temperature: -40°C to +80°C
  • Operating Humidity: 0 ~ 99.9% RH (No condensation)
  • Storage Temperature: -10°C to +45°C

LoRa Specifications

  • LoRaWAN® v1.0.3 Class A
  • Long-range spread spectrum communication
  • High interference immunity
  • Compatible with standard LoRaWAN® gateways

Power

  • Built-in 2400mAh non-rechargeable battery
  • Optional external power input
  • Designed for multi-year operation (depending on reporting interval)

The Dragino DS20L is suitable for:

  • Smart parking occupancy detection
  • Tank level and bin level monitoring
  • Industrial object counting systems
  • Building automation and smart infrastructure
  • Warehouse space utilization monitoring
  • Smart city infrastructure monitoring
  • Logistics and storage management

The DS20L measures distances from 3cm to 200cm using LiDAR ToF technology.

Yes, it supports distance alarm and counting modes, making it suitable for parking occupancy and vehicle detection applications.

Yes, the DS20L is compatible with LoRaWAN® gateways supporting IN865 frequency band in India.

Documents

User Manual
 Download

DS20L_Datasheet

Download

DS20L_Firmware

Download
