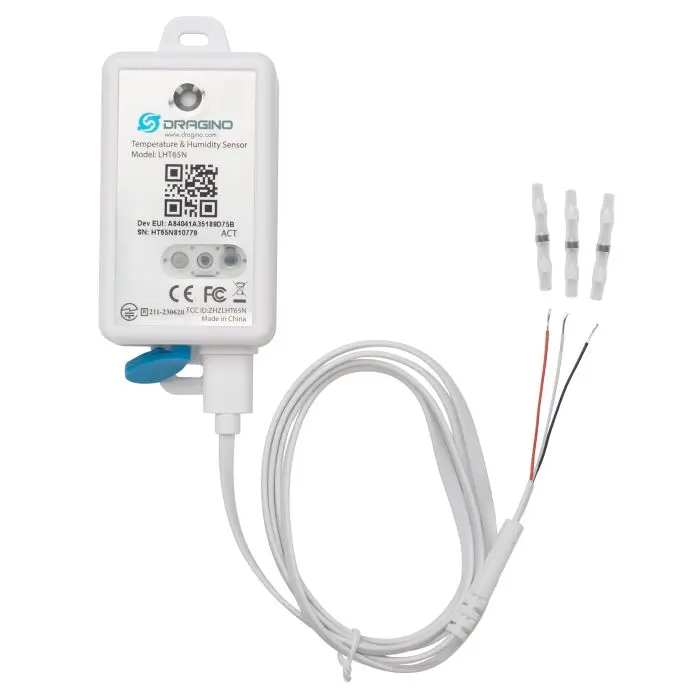

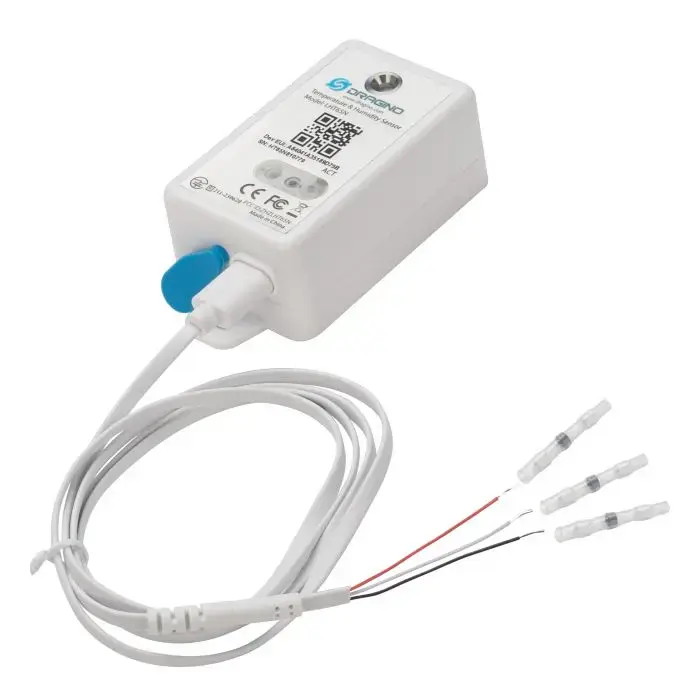

Dragino LHT65N-DC LoRaWAN Dry Contact Sensor

https://www.aiotkart.com/web/image/product.template/17694/image_1920?unique=ace5ebc

Dragino LHT65N-DC is a LoRaWAN® dry contact sensor designed for remote open/close monitoring, pulse counting and environmental sensing in IoT applications. It provides a 3-wire external dry-contact interface while also integrating built-in temperature and humidity sensors, allowing contact status and environmental conditions to be monitored through a single LoRaWAN device. The LHT65N-DC supports LoRaWAN v1.0.3 Class A communication, configurable open alarms, datalog storage and remote parameter configuration through LoRaWAN downlinks. Powered by a built-in 2400mAh non-rechargeable battery and available with an IN865 frequency option, it is suitable for warehouses, garages, building automation, equipment status monitoring and other wireless monitoring deployments in India.

₹ 4,400.00 4400.0 INR ₹ 4,400.00

₹ 4,400.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Detects dry contact open/close status
  • Pulse counting support
  • Built-in temperature and humidity sensor
  • 3-wire external interface (VCC / GND / INT)
  • Open alarm notification feature
  • Datalog function for no-network coverage
  • Remote configuration via LoRaWAN® downlink
  • AT command configuration support
  • Firmware upgradeable via program port
  • Tri-color LED status indicator
  • Built-in 2400mAh battery (up to 10 years*)
  • Compatible with standard LoRaWAN® gateways

LoRaWAN®

  • Protocol: LoRaWAN® Class A
  • Frequency Bands: IN865

Built-in Temperature Sensor

  • Resolution: 0.01 °C
  • Accuracy: ±0.3 °C (typical)
  • Long-Term Drift: < 0.02 °C/year
  • Operating Range: -40 °C to 80 °C

Built-in Humidity Sensor

  • Resolution: 0.04 %RH
  • Accuracy: ±3 %RH (typical)
  • Long-Term Drift: < 0.25 %RH/year
  • Operating Range: 0 ~ 96 %RH

External Interface

  • 3-Wire: VCC / GND / INT
  • 1 Meter External Cable

Power

  • 2400mAh Non-chargeable Battery
  • Designed for up to 10 years operation*

Mechanical

  • Device Size: 9.5 x 4 x 2.8 cm
  • Device Weight: 105 g
  • Package Size: 14.5 x 8 x 5 cm
  • Package Weight: 170 g

Package Includes

  • 1 x LHT65N-DC LoRaWAN® Dry Contact Sensor

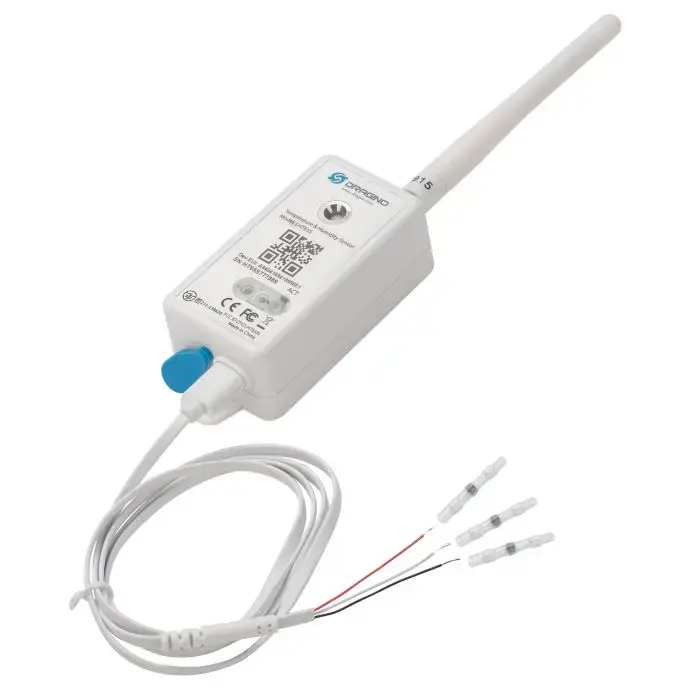

  • 1 x External LoRa Antenna (for LHT65S-DC variant)

The Dragino LHT65N-DC LoRaWAN® Dry Contact Sensor is suitable for:

  • Industrial automation and equipment monitoring
  • Commercial infrastructure and facility management
  • Water system pump and valve status monitoring
  • Cold chain storage door monitoring
  • Manufacturing process monitoring
  • Utility panels and electrical cabinets
  • Smart infrastructure and building automation
  • Campuses, warehouses, supermarkets, garages, and cellars

You can purchase the genuine Dragino LHT65N-DC LoRaWAN® Dry Contact Sensor from AIoTkart®, the authorized Dragino distributor in India offering nationwide delivery and project support.

Yes, the LHT65N-DC supports LoRaWAN® v1.0.3 Class A protocol and is compatible with standard LoRaWAN® gateways used for industrial and commercial IoT deployments in India.

The LHT65N-DC includes a built-in 2400mAh battery designed for up to 10 years of operation, depending on uplink frequency and configuration settings.

Documents

User Manual
Download

LHT65N-DC_Datasheet

Download

LHT65N-DC_Firmware

Download
