Dragino LDS40-LB LoRaWAN LiDAR ToF Distance Sensor

Price:

₹ 27,000.00
  2. Shop
  3. Dragino LDS40-LB LoRaWAN LiDAR ToF Distance Sensor
Dragino LDS12-LS Solar LoRaWAN LiDAR ToF Distance Sensor
Dragino LDS12-LS Solar LoRaWAN LiDAR ToF Distance Sensor
₹ 16,200.00
₹ 16,200.00
Dragino LDS40-LS Solar LoRaWAN LiDAR ToF Distance Sensor
Dragino LDS40-LS Solar LoRaWAN LiDAR ToF Distance Sensor
₹ 27,600.00
₹ 27,600.00

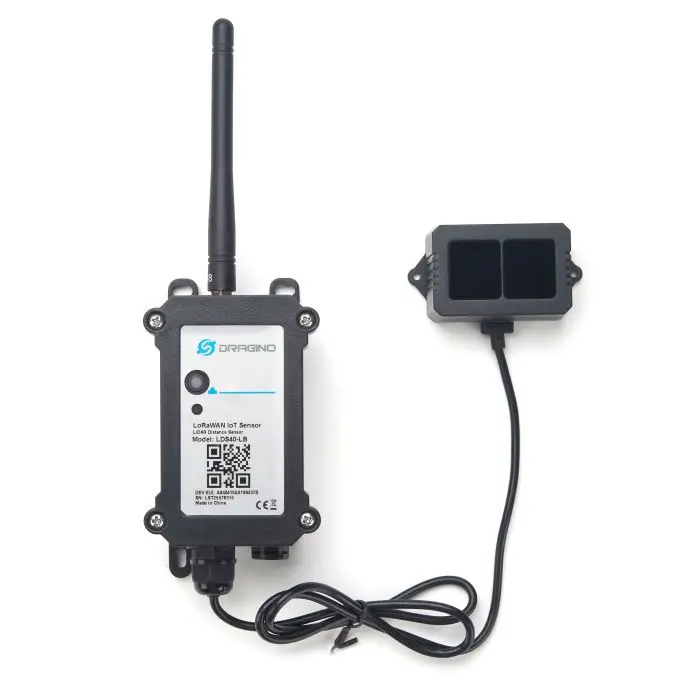

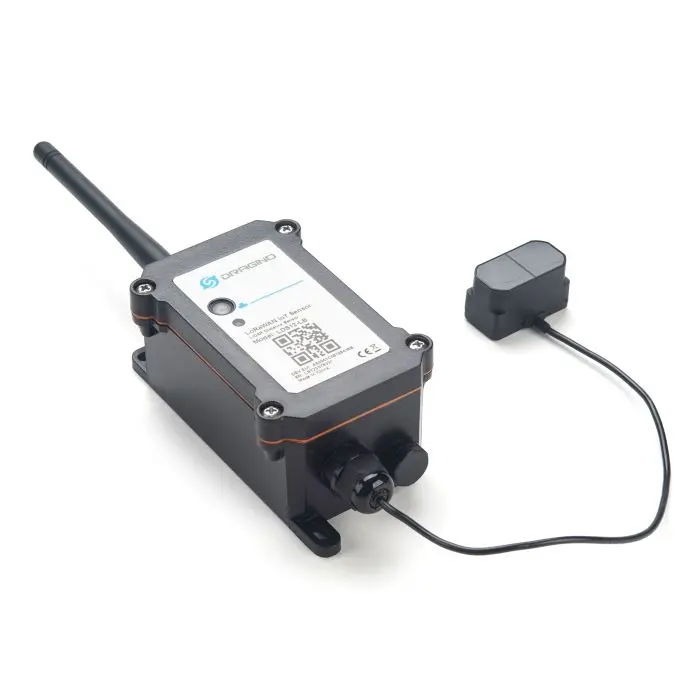

Dragino LDS40-LB LoRaWAN LiDAR ToF Distance Sensor

https://www.aiotkart.com/web/image/product.template/17687/image_1920?unique=09f9a0d

Dragino LDS40-LB is a LoRaWAN® LiDAR ToF distance sensor designed for long-range distance measurement, object detection and remote monitoring applications. It uses laser-based Time-of-Flight sensing to measure distances from 0.1 m up to 40 m at 90% reflectivity, with a narrow 3° field of view and 1 cm distance resolution for focused detection. The LDS40-LB supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP65-rated probe, 8500mAh Li-SOCl2 battery and IN865 frequency option, it is suitable for parking management, object proximity detection, smart waste monitoring, sewer applications, industrial automation and infrastructure monitoring deployments in India.

₹ 27,000.00 27000.0 INR ₹ 27,000.00

₹ 27,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Long-range LiDAR ToF laser distance measurement
  • Measurement range: 0.1m to 40m @ 90% reflectivity
  • Up to 13.5m @ 10% reflectivity
  • Distance resolution: 1cm
  • Narrow 3° field of view (FOV)
  • Ambient light immunity up to 100klux
  • VCSEL laser light source (850nm)
  • Ultra-low power consumption
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade support
  • AT command configuration
  • Battery level monitoring
  • IP65 industrial enclosure
  • 8500mAh Li-SOCl₂ battery (LDS40-LB variant)
  • Pre-loaded LoRaWAN® keys for quick activation
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature (Device): -40°C to +85°C
  • Operating Temperature (Probe): -20°C to +60°C
  • Storage Temperature: -30°C to +80°C
  • Enclosure Rating: IP65
  • Enclosure Material: ABS + PC
  • Dimensions: 150 × 120 × 55 mm
  • Weight: 220 g
  • Wire Length: 75 cm

LiDAR Probe Specifications

  • Technology: LiDAR ToF with VCSEL
  • Measurement Distance:
    • 0.1m – 40m @ 90% reflectivity
    • 0.1m – 13.5m @ 10% reflectivity
  • Distance Resolution: 1 cm
  • Ambient Light Immunity: 100klux
  • Light Source: VCSEL
  • Central Wavelength: 850nm
  • Field of View: 3°

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications

Battery (LDS40-LB):

  • Type: Li/SOCl₂ (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption:

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino LDS40-LB LoRaWAN® LiDAR Distance Sensor is widely used in India for:

  • Industrial automation and large-area monitoring
  • Commercial infrastructure and smart building systems
  • Water systems and sewer monitoring
  • Cold chain warehouses and logistics hubs
  • Manufacturing plants and robotics navigation
  • Utilities and smart city infrastructure
  • Long-range parking management systems
  • Intelligent waste management systems
  • Campuses, transport depots, and institutional facilities

You can purchase the Dragino LDS40-LB LoRaWAN® LiDAR ToF Distance Detection Sensor directly from AIoTkart®, an Authorized Dragino Distributor in India offering genuine products with nationwide delivery and bulk pricing support.

Yes, the LDS40-LB supports the IN865 frequency band and can measure distances up to 40 meters, making it ideal for long-range industrial and infrastructure LoRaWAN® deployments in India.

The Dragino LDS40-LB can measure up to 40 meters at 90% reflectivity and up to 13.5 meters at 10% reflectivity, making it suitable for extended-range outdoor monitoring applications.

Documents

User Manual
Download

LDS40-LB_Datasheet

Download

LDS40-LB_Firmware

Download
