Dragino LDS12-LS Solar LoRaWAN LiDAR ToF Distance Sensor

Price:

₹ 16,200.00
Dragino LDS12-LS Solar LoRaWAN LiDAR ToF Distance Sensor
  2. Shop
  3. Dragino LDS12-LS Solar LoRaWAN LiDAR ToF Distance Sensor
Dragino LDS12-LB LoRaWAN LiDAR ToF Distance Sensor
Dragino LDS12-LB LoRaWAN LiDAR ToF Distance Sensor
₹ 15,600.00
₹ 15,600.00
Dragino LDS40-LB LoRaWAN LiDAR ToF Distance Sensor
Dragino LDS40-LB LoRaWAN LiDAR ToF Distance Sensor
₹ 27,000.00
₹ 27,000.00

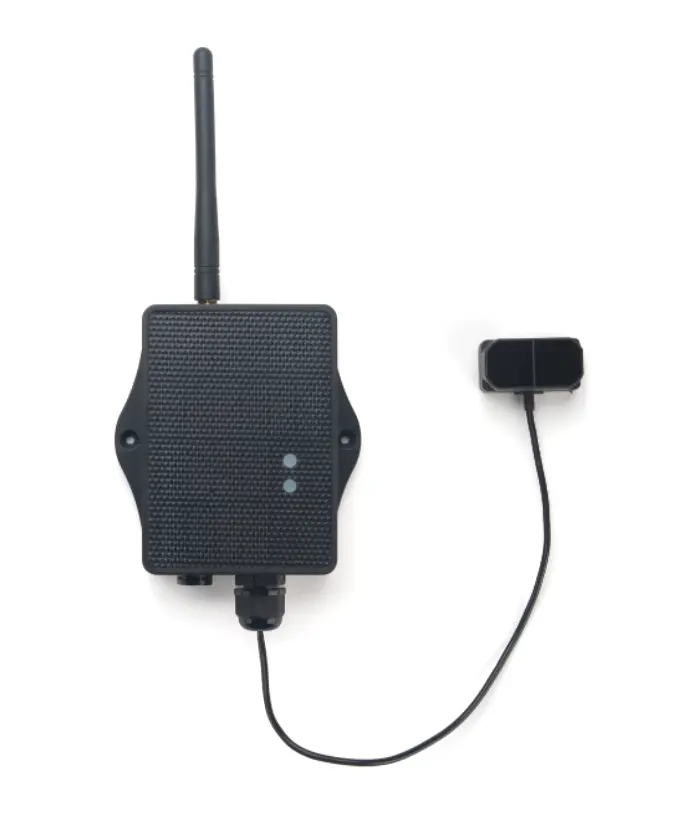

Dragino LDS12-LS Solar LoRaWAN LiDAR ToF Distance Sensor

https://www.aiotkart.com/web/image/product.template/17686/image_1920?unique=c240467

Dragino LDS12-LS is a solar-powered LoRaWAN® LiDAR ToF distance sensor designed for long-range object detection, distance measurement and remote monitoring applications. It uses laser-based Time-of-Flight sensing to measure distances from 0.1 m to 12 m, with accuracy of ±5 cm from 0.1–5 m and ±1% from 5–12 m, along with a narrow 3.6° field of view for focused detection. The LDS12-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and featuring an IP65-rated probe, it is suitable for parking systems, object presence detection, smart waste management, sewer monitoring, industrial automation and infrastructure monitoring deployments in India, with IN865 frequency support available.

₹ 16,200.00 16200.0 INR ₹ 16,200.00

₹ 16,200.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • LiDAR ToF (Time-of-Flight) laser distance sensing
  • Measurement range: 0.1m to 12m
  • Accuracy: ±5cm (0.1–5m), ±1% (5–12m)
  • Distance resolution: 1cm
  • Narrow 3.6° field of view (FOV)
  • Ambient light immunity up to 70klux
  • Ultra-low power consumption
  • Solar panel + 3000mAh Li-ion battery (LDS12-LS)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade support
  • AT command parameter configuration
  • Battery level monitoring
  • IP65 industrial enclosure
  • Pre-loaded LoRaWAN® keys for quick commissioning
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature (Device): -40°C to +85°C
  • Operating Temperature (Probe): -20°C to +60°C
  • Storage Temperature: -20°C to +75°C
  • Enclosure Rating: IP65
  • Enclosure Material: ABS + PC
  • Dimensions: 150 × 120 × 55 mm
  • Weight: 220 g
  • Wire Length: 25 cm

LiDAR Probe Specifications

  • Technology: Laser Induction (ToF)
  • Measurement Distance:
    • 0.1m – 12m @ 90% reflectivity
    • 0.1m – 4m @ 10% reflectivity
  • Accuracy:
    • ±5cm @ 0.1–5m
    • ±1% @ 5–12m
  • Distance Resolution: 1 cm
  • Ambient Light Immunity: 70klux
  • Light Source: LED
  • Central Wavelength: 850nm
  • Field of View: 3.6°

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications

Power System (LDS12-LS):

  • Solar Panel Integrated
  • 3000mAh Li-ion rechargeable battery
  • Designed for long-term outdoor deployment

Power Consumption:

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino LDS12-LS LoRaWAN® LiDAR Distance Sensor is ideal for India-based deployments including:

  • Industrial automation and process monitoring
  • Commercial infrastructure and smart buildings
  • Water systems and sewer monitoring
  • Cold chain storage and warehouse monitoring
  • Manufacturing plants and robotics navigation
  • Utility and smart city infrastructure
  • Parking management systems
  • Intelligent waste management solutions
  • Campuses, logistics parks, and institutional facilities

You can purchase the Dragino LDS12-LS LoRaWAN® LiDAR ToF Distance Detection Sensor directly from AIoTkart®, an Authorized Dragino Distributor in India offering genuine products and nationwide delivery.

Yes, the LDS12-LS supports the IN865 frequency band and works seamlessly with LoRaWAN® networks deployed across India for industrial, commercial, and smart city IoT projects.

The LDS12-LS includes an integrated solar panel with a 3000mAh Li-ion rechargeable battery, making it suitable for long-term outdoor deployments with minimal maintenance, while the LB version uses a non-rechargeable 8500mAh battery.
