Dragino DDS04-LS Solar 4-Channel LoRaWAN Ultrasonic Distance Sensor

https://www.aiotkart.com/web/image/product.template/17650/image_1920?unique=77cc241

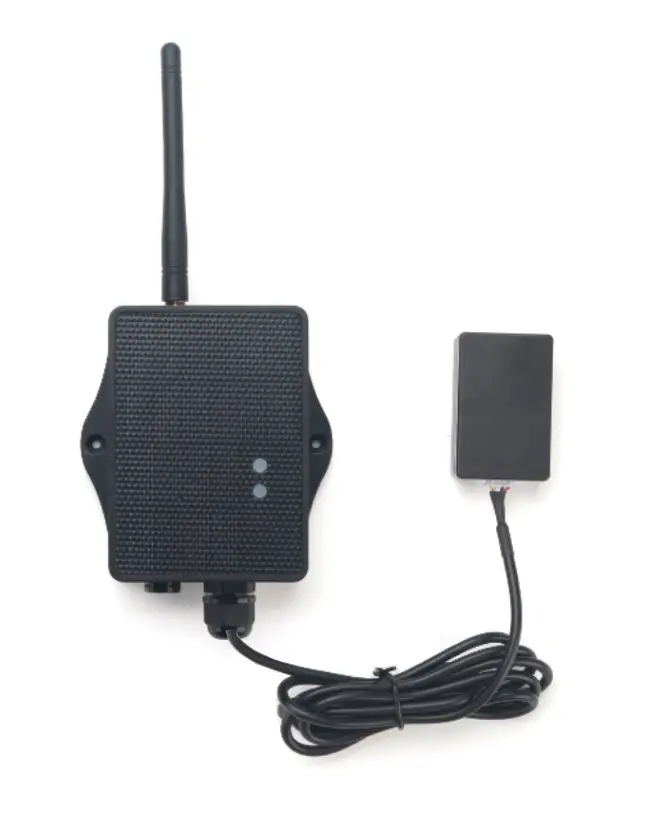

Dragino DDS04-LS is a solar-powered LoRaWAN® 4-channel distance detection sensor designed to connect up to four compatible ultrasonic probes for remote distance and level monitoring. It can measure multiple points simultaneously and transmit the collected distance data to a LoRaWAN IoT platform, making it suitable for applications such as liquid-level monitoring, parking management, object detection, smart waste bins, sewer monitoring and industrial automation. The DDS04-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP66 enclosure, solar panel, 3000mAh rechargeable Li-ion battery and IN865 frequency support, it is suitable for long-term outdoor IoT monitoring deployments in India.

₹ 9,100.00 9100.0 INR ₹ 9,100.00

₹ 9,100.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports up to 4 external ultrasonic distance sensors (not included)
  • Multi-channel distance detection via single LoRaWAN® node
  • Ultra-low power consumption
  • Integrated solar panel + 3000mAh Li-ion battery (DDS04-LS)
  • IP66 waterproof enclosure for outdoor deployment
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Downlink support for parameter changes
  • Monitor battery level
  • Pre-loaded LoRaWAN® keys for easy activation
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Enclosure Rating: IP66
  • Designed for long-term outdoor use

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (DDS04-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino DDS04-LS 4-Channel LoRaWAN® Distance Sensor is ideal for:

  • Multi-tank water level monitoring
  • Bottom water level monitoring
  • Sewer monitoring systems
  • Parking management systems
  • Smart waste bin monitoring (multiple bins)
  • Horizontal distance measurement
  • Object proximity and presence detection
  • Industrial automation and process control
  • Smart city infrastructure projects

No. The DDS04-LS includes only the LoRaWAN® controller unit. Ultrasonic sensors must be purchased separately.

The DDS04-LS supports up to four ultrasonic distance sensors for simultaneous multi-point monitoring.

The DDS04-LB uses an 8500mAh Li-SOCl₂ battery, while the DDS04-LS includes a solar panel with a 3000mAh rechargeable Li-ion battery for long-term outdoor operation.
