Dragino D23-LS Solar Three-Probe LoRaWAN Temperature Sensor

Price:

₹ 8,900.00
Dragino D23-LS Solar Three-Probe LoRaWAN Temperature Sensor
  2. Shop
  3. Dragino D23-LS Solar Three-Probe LoRaWAN Temperature Sensor
Dragino DR-PH01 Water pH Sensor
Dragino DR-PH01 Water pH Sensor
₹ 23,000.00
₹ 23,000.00
Dragino DDS04-LS Solar 4-Channel LoRaWAN Ultrasonic Distance Sensor
Dragino DDS04-LS Solar 4-Channel LoRaWAN Ultrasonic Distance Sensor
₹ 9,100.00
₹ 9,100.00

Dragino D23-LS Solar Three-Probe LoRaWAN Temperature Sensor

https://www.aiotkart.com/web/image/product.template/17648/image_1920?unique=5d35ae8

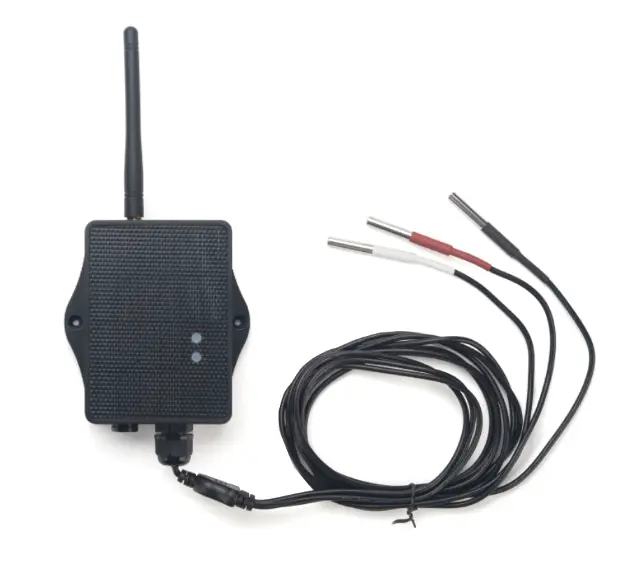

Dragino D23-LS is a solar-powered LoRaWAN® waterproof outdoor temperature sensor designed for multi-point temperature monitoring in industrial, cold-chain, environmental and equipment-monitoring applications. It features three external DS18B20 temperature probes, each capable of measuring from -55°C to 125°C with ±0.5°C typical accuracy. The D23-LS supports LoRaWAN 1.0.3 Class A communication, configurable temperature alarms, datalog functionality, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP66 enclosure, solar panel, 3000mAh rechargeable Li-ion battery and IN865 frequency support, it is suitable for long-term outdoor and remote temperature-monitoring deployments in India.

₹ 8,900.00 8900.0 INR ₹ 8,900.00

₹ 8,900.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 3 × DS18B20 temperature probes
  • Wide temperature range: -55°C to +125°C
  • ±0.5°C accuracy (max ±2.0°C)
  • Solar panel + 3000mAh Li-ion rechargeable battery (D23-LS)
  • IP66 waterproof enclosure for outdoor use
  • Ultra-low power consumption
  • Temperature alarm notifications
  • Datalog feature (no data loss during outage)
  • Bluetooth v5.1 configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Supports IN865 band

Common DC Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

Temperature Sensor

  • Sensor Type: Dallas DS18B20
  • Quantity: 3 Probes
  • Measurement Range: -55°C to +125°C
  • Accuracy: ±0.5°C (max ±2.0°C)

LoRa Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Supported Bands: IN865
  • Max +22 dBm RF Output
  • RX Sensitivity: up to -139 dBm
  • High interference immunity

Battery (D23-LS Model)

  • Solar panel powered
  • 3000mAh Li-ion rechargeable battery

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode:
    • 125mA @ 20dBm
    • 82mA @ 14dBm

Mechanical

  • IP66 waterproof enclosure
  • Device Size: 120 × 55 × 200 mm
  • Device Weight: 372g

Package Includes

  • 1 × D23-LS LoRaWAN® Waterproof Outdoor Temperature Sensor (3 Probes)

The Dragino D23-LS is ideal for:

  • Cold storage and warehouse monitoring
  • Industrial process monitoring
  • Water tank and pipeline temperature tracking
  • Agriculture and irrigation systems
  • Solar plant equipment monitoring
  • HVAC and facility management
  • Outdoor environmental monitoring
  • Smart city and infrastructure projects

You can purchase the Dragino D23-LS from AIoTkart® with nationwide delivery and bulk industrial supply support.

Yes. The D23-LS features an IP66 waterproof enclosure and solar power system, making it ideal for long-term outdoor deployments.

The D23-LS includes three DS18B20 temperature probes, allowing multi-point temperature monitoring from a single device.

Documents

User Manual
Download

D23-LS_Datasheet

Download

D23-LS_Firmware

Download
