Akvodrops AD-MJWM DN25 Multi-Jet Brass Water Meter with Pulse Output

Price:

₹ 6,124.00
Akvodrops AD-MJWM DN25 Multi-Jet Brass Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-MJWM DN25 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN20 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN20 Multi-Jet Brass Water Meter with Pulse Output
₹ 3,816.00
₹ 3,816.00
Akvodrops AD-MJWM DN32 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN32 Multi-Jet Brass Water Meter with Pulse Output
₹ 6,726.00
₹ 6,726.00

Akvodrops AD-MJWM DN25 Multi-Jet Brass Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17980/image_1920?unique=e2c1d70

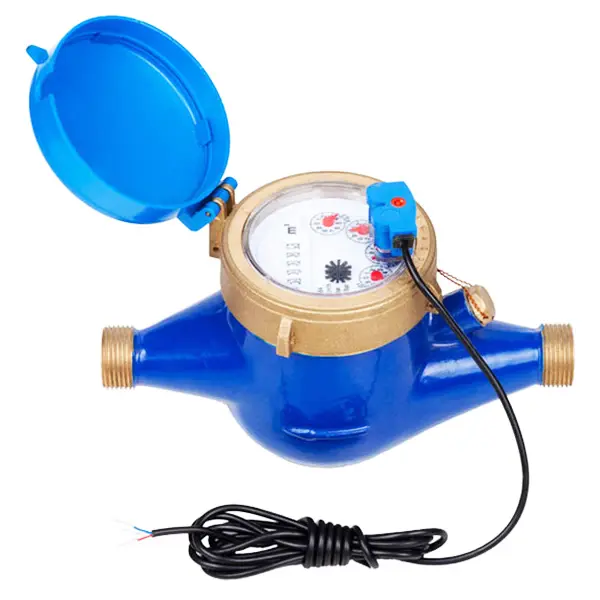

The Akvodrops AD-MJWM DN25 is a Multi-Jet mechanical water meter with pulse output designed for accurate cold-water consumption measurement in DN25 / 25 mm pipelines. It combines a brass body, extra-dry analog dial, magnetic transmission and built-in strainer to provide reliable mechanical water metering with high sensitivity and low pressure loss. The AD-MJWM family is designed for sizes from DN15 to DN50 and is suitable for residential, commercial, industrial and water-supply monitoring applications.

The integrated reed-switch pulse output allows water-consumption data to be connected to compatible pulse counters, data loggers, BMS systems or external IoT communication devices. Akvodrops specifies typical pulse values of 10 L/pulse and 100 L/pulse depending on meter size and configuration; therefore, the exact pulse constant supplied with this DN25 SKU should be confirmed before publishing a fixed value.

₹ 6,124.00 6124.0 INR ₹ 6,124.00

₹ 6,124.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks
The AD-MJWM DN25 is a Multi-Jet mechanical water meter designed for measuring water consumption in 25 mm pipelines. Its brass construction, mechanical register and pulse output make it suitable for building sub-metering, industrial monitoring, agriculture and water-supply applications.

Yes. The AD-MJWM includes a reed-switch pulse output that can be connected to compatible counters, data loggers or monitoring systems. Akvodrops lists typical pulse values of 10 L/P and 100 L/P depending on meter size and configuration.

Yes. Its pulse output can be connected to an external pulse-input IoT device, data logger or BMS interface for remote water-consumption monitoring. The AD-MJWM itself remains a mechanical pulse-output water meter; LoRaWAN, Wi-Fi or cellular connectivity should only be advertised when corresponding external communication hardware is included.

Documents

Akvodrops WATER METER (AD-WWM).pdf

Download
