Akvodrops AD-MJWM DN20 Multi-Jet Brass Water Meter with Pulse Output

Price:

₹ 3,816.00
Akvodrops AD-MJWM DN20 Multi-Jet Brass Water Meter with Pulse Output
  2. Shop
  3. Akvodrops AD-MJWM DN20 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN15 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN15 Multi-Jet Brass Water Meter with Pulse Output
₹ 3,228.00
₹ 3,228.00
Akvodrops AD-MJWM DN25 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN25 Multi-Jet Brass Water Meter with Pulse Output
₹ 6,124.00
₹ 6,124.00

Akvodrops AD-MJWM DN20 Multi-Jet Brass Water Meter with Pulse Output

https://www.aiotkart.com/web/image/product.template/17979/image_1920?unique=e48c093

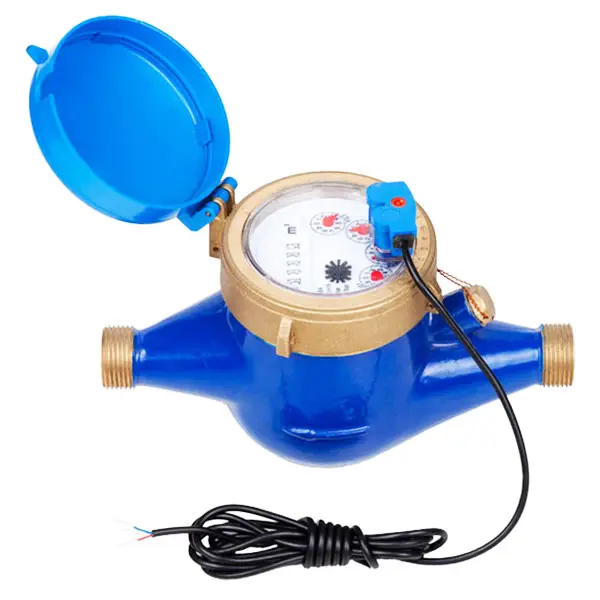

The Akvodrops AD-MJWM DN20 is a Multi-Jet mechanical water meter with pulse output designed for accurate water-consumption measurement in DN20 / 20 mm cold-water pipelines. It combines a brass body, extra-dry dial analog display, magnetic transmission and built-in strainer to provide reliable mechanical metering with high sensitivity and low pressure loss. Akvodrops specifies the AD-MJWM family for sizes from DN15 to DN50.

The integrated reed-switch pulse output enables the DN20 meter to interface with compatible pulse counters, data loggers and IoT monitoring devices for remote water-consumption tracking. Akvodrops lists typical pulse values of 10 L/pulse and 100 L/pulse depending on meter size and configuration, so the exact pulse value supplied with this DN20 SKU should be confirmed before publishing a fixed value.


₹ 3,816.00 3816.0 INR ₹ 3,816.00

₹ 3,816.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.
  • Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.
  • Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.
  • Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.
  • Sizes: DN15 to DN600 mm
  • Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)
  • Water Temperature Range: 0.1°C to 50°C
  • Pulse Outputs: 10/100/1000 L per pulse (depending on size)
  • Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.
  • Commercial and residential complexes
  • Industrial water supply systems
  • Municipal water distribution networks

The AD-MJWM DN20 is a Multi-Jet mechanical meter designed to measure cold-water consumption in 20 mm pipelines. Its compact mechanical design and pulse output make it suitable for individual water lines, sub-metering, buildings, industrial applications and water-supply monitoring.

Yes. The AD-MJWM includes a reed-switch pulse output that can be connected to compatible counters, loggers or monitoring devices. Akvodrops lists typical values of 10 L/P and 100 L/P, depending on meter size and configuration.

Yes. The meter's pulse output can be connected to a compatible pulse-reading or IoT communication device for remote water-consumption monitoring. The AD-MJWM itself remains a mechanical pulse-output water meter; LoRaWAN, cellular or Wi-Fi connectivity should only be stated when the corresponding external communication device is included.
