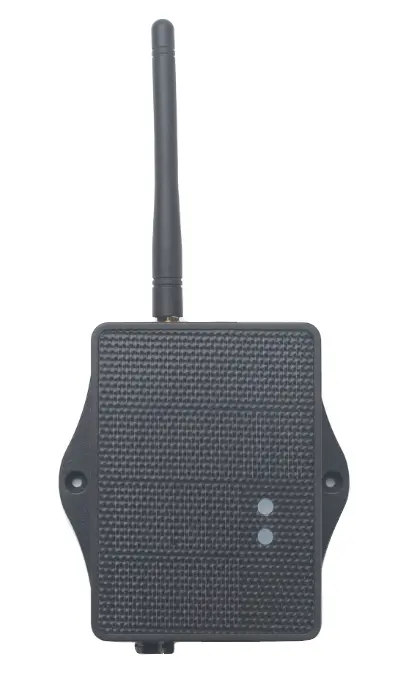

Dragino TS01-LS Solar LoRaWAN Tilting Sensor

https://www.aiotkart.com/web/image/product.template/17786/image_1920?unique=8db4d35

Dragino TS01-LS is a solar-powered LoRaWAN® tilting sensor designed for remote pitch and roll angle monitoring of trees, buildings, large-scale equipment and infrastructure. It measures tilt orientation and transmits angle data to an IoT platform over LoRaWAN, while supporting configurable angle alarms and datalog functionality for continuous monitoring. The TS01-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 frequency support, it is suitable for long-term structural, equipment and outdoor tilt-monitoring deployments in India.

₹ 9,400.00 9400.0 INR ₹ 9,400.00

₹ 9,400.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports IN865 band
  • Solar panel with 3000mAh Li-ion rechargeable battery
  • Measures pitch and roll angle
  • Accuracy up to ±0.3°
  • Angle alarm support
  • Datalog feature for local storage
  • Ultra-low power consumption (5uA sleep mode)
  • BLE v5.1 for remote configuration
  • Wireless OTA firmware updates
  • Periodic uplink and configurable downlink
  • Battery level monitoring

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C

Angle Measurement

  • Measures Pitch and Roll
  • Accuracy: ±0.3°

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz (HF), 410 ~ 528 MHz (LF)
  • Supports IN865
  • Maximum RF Output: +22 dBm
  • RX Sensitivity: -139 dBm
  • High interference immunity

Battery & Power (TS01-LS)

  • Solar Panel Integrated
  • 3000mAh Li-ion Rechargeable Battery
  • Designed for long-term outdoor operation

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm

The Dragino TS01-LS LoRaWAN® Tilting Sensor is suitable for:

  • Industrial automation and equipment tilt monitoring
  • Commercial infrastructure structural monitoring
  • Water systems and dam safety monitoring
  • Cold chain equipment alignment monitoring
  • Manufacturing machinery tilt detection
  • Smart utilities and power infrastructure monitoring
  • Bridges, towers, poles, and large structure safety
  • Campuses and institutional infrastructure projects
  • Environmental and tree tilt detection

You can purchase the genuine Dragino TS01-LS LoRaWAN® Tilting Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India shipping and bulk supply support.

Yes, the TS01-LS includes a built-in solar panel with 3000mAh Li-ion battery, making it ideal for remote and off-grid LoRaWAN® deployments using IN865 frequency band in India.

The TS01-LS is solar-powered with a rechargeable Li-ion battery, while the TS01-LB operates on an 8500mAh Li/SOCl2 battery designed for long-term standalone use.
