Dragino TrackerD-LS LoRaWAN Asset Tracker

Price:

₹ 6,700.00
  2. Shop
  3. Dragino TrackerD-LS LoRaWAN Asset Tracker
Dragino WL03A-LS Solar LoRaWAN Rope-Type Water Leak Controller (With 1m Water Leak Cable)
Dragino WL03A-LS Solar LoRaWAN Rope-Type Water Leak Controller (With 1m Water Leak Cable)
₹ 9,200.00
₹ 9,200.00
Dragino T68DL LoRaWAN Temperature Sensor
Dragino T68DL LoRaWAN Temperature Sensor
₹ 3,040.00
₹ 3,040.00

Dragino TrackerD-LS LoRaWAN Asset Tracker

https://www.aiotkart.com/web/image/product.template/17787/image_1920?unique=9d41a07

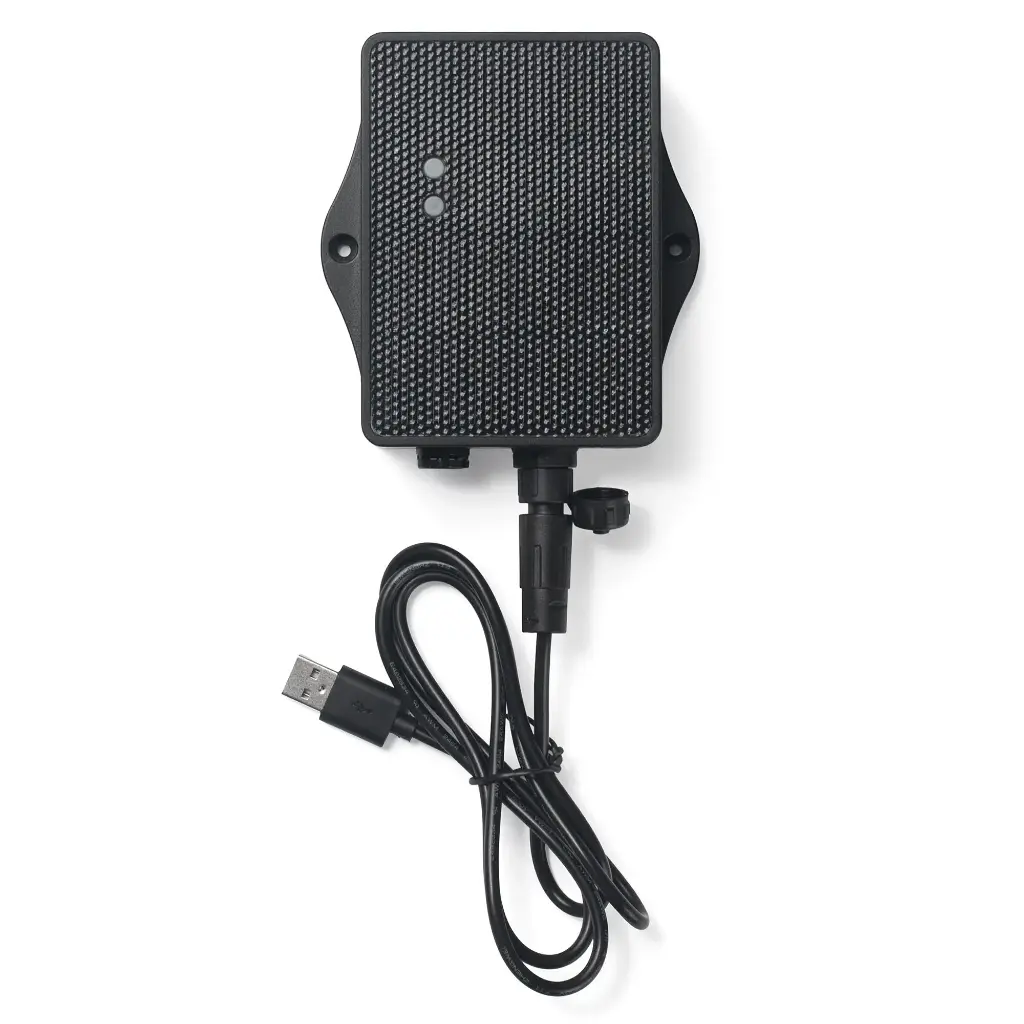

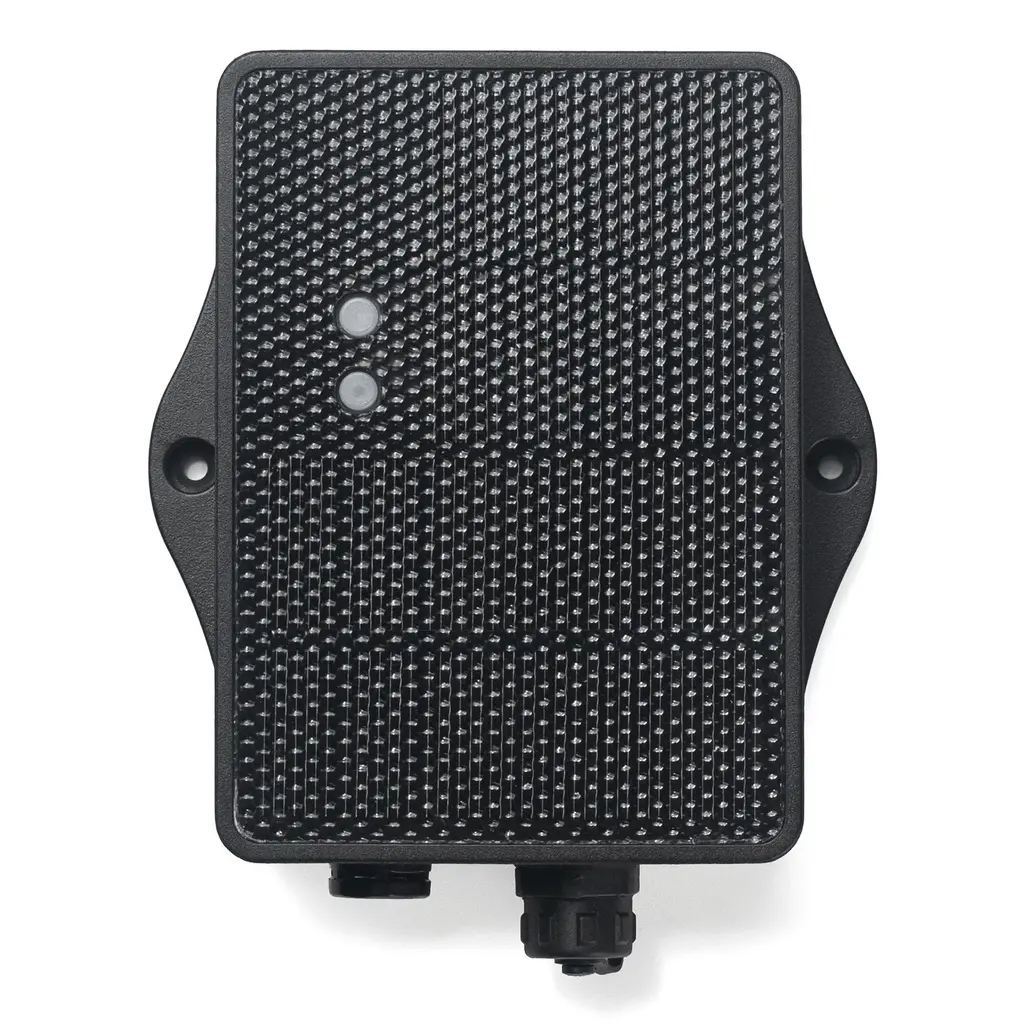

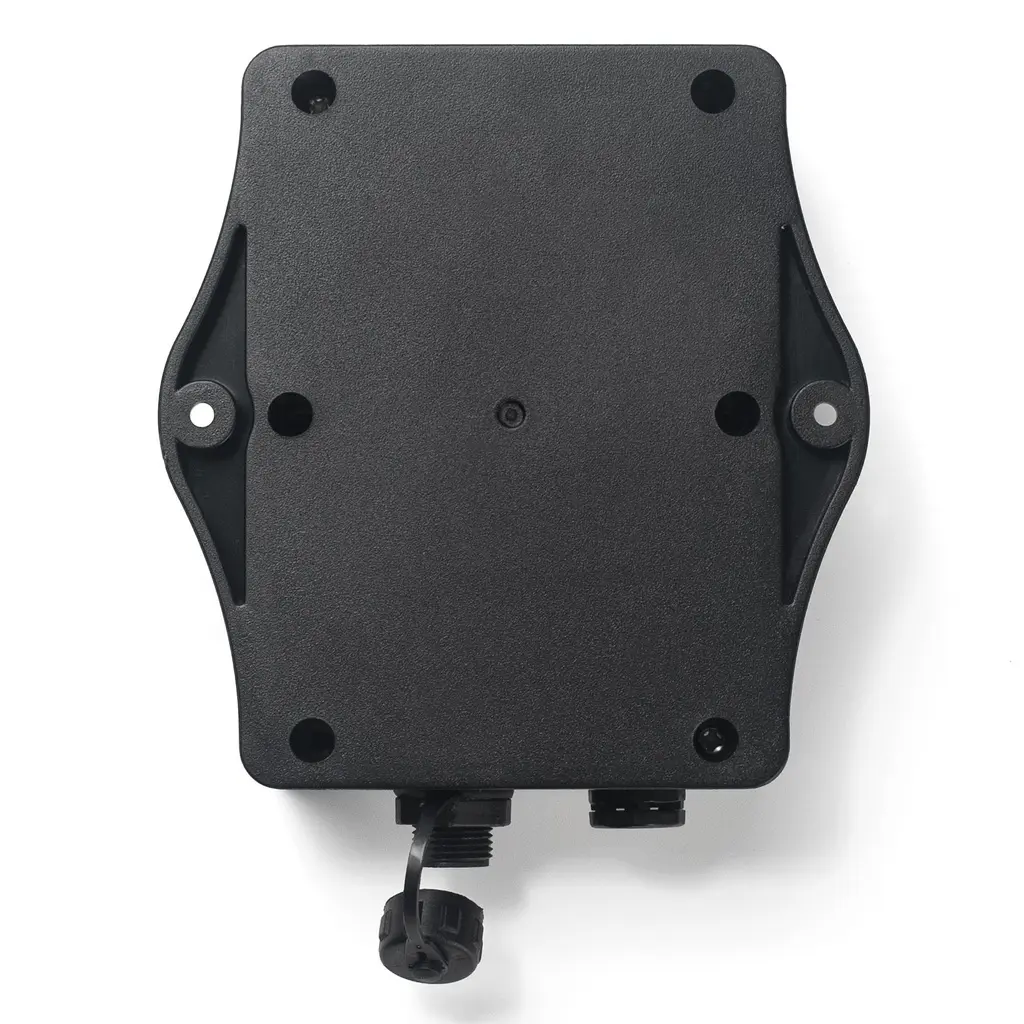

Dragino TrackerD-LS is a solar-powered LoRaWAN® asset tracker designed for remote GPS tracking of assets in logistics, supply-chain and outdoor IoT applications. It supports regular and real-time GPS tracking and includes a built-in 3-axis accelerometer for motion detection, allowing the tracker to report more frequently when movement is detected while reducing power consumption when stationary. The TrackerD-LS also provides datalog functionality to store location data when LoRaWAN coverage is unavailable and transmit the stored records once network connectivity is restored. Built around an ESP32 PICO D4 and SX1276/78 LoRa wireless chipset, it supports LoRaWAN 1.0.3 Class A, power monitoring and Arduino IDE customization. With an IP65 enclosure, solar panel, 3000mAh rechargeable Li-ion battery and IN865 frequency option, it is suitable for long-term asset tracking deployments in India.

₹ 6,700.00 6700.0 INR ₹ 6,700.00

₹ 6,700.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • ESP32 PICO D4 microcontroller
  • SX1276/78 LoRa wireless chip
  • Solar-powered with 3000mAh Li-ion battery
  • Regular and real-time GPS tracking
  • Motion detection with adaptive reporting
  • Offline data logging when LoRaWAN® is unavailable
  • Arduino IDE compatible (open-source platform)
  • Built-in 3-axis accelerometer
  • Power monitoring capability
  • USB charging circuit
  • Designed for long-term outdoor asset tracking

Microcontroller

  • MCU: ESP32 PICO D4
  • Integrated SPI Flash: 4 MB
  • RAM: 448 KB
  • EEPROM: 520 KB
  • Clock Speed: 32 MHz

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max Link Budget: 168 dB
  • RF Output: +20 dBm (100 mW) / +14 dBm PA
  • RX Sensitivity: Down to -148 dBm
  • Modulation: FSK, GFSK, MSK, GMSK, LoRa, OOK
  • Packet Engine: Up to 256 bytes with CRC
  • Protocol: LoRaWAN® 1.0.3

Power & Battery

  • Battery: 3000mAh Li-ion rechargeable
  • Built-in Solar Panel
  • Supply Voltage: 2.5V ~ 3.6V
  • Sleep Mode: 60 µA
  • LoRa Transmit Mode: 125mA @ 20dBm / 44mA @ 14dBm
  • Tracking Mode: Max 38mA

Environmental

  • Operating Temperature: -40°C to 60°C

The Dragino TrackerD-LS LoRaWAN® Tracker is ideal for:

  • Logistics and supply chain management
  • Fleet tracking
  • Container and cargo monitoring
  • Agricultural equipment tracking
  • Utility and infrastructure asset monitoring
  • Construction equipment tracking
  • Remote industrial asset management

TrackerD-LS uses LoRaWAN® for long-range, low-power communication and includes solar charging with a 3000mAh battery, making it suitable for multi-year outdoor deployments.

Yes. It stores GPS data locally when there is no network and uploads the stored data once LoRaWAN® connectivity is restored.

Yes. It is open-source and Arduino IDE compatible, allowing developers to customize firmware for specific IoT tracking applications.

Documents

User Manual
Download

TrackerD-LS_Datasheet

Download
