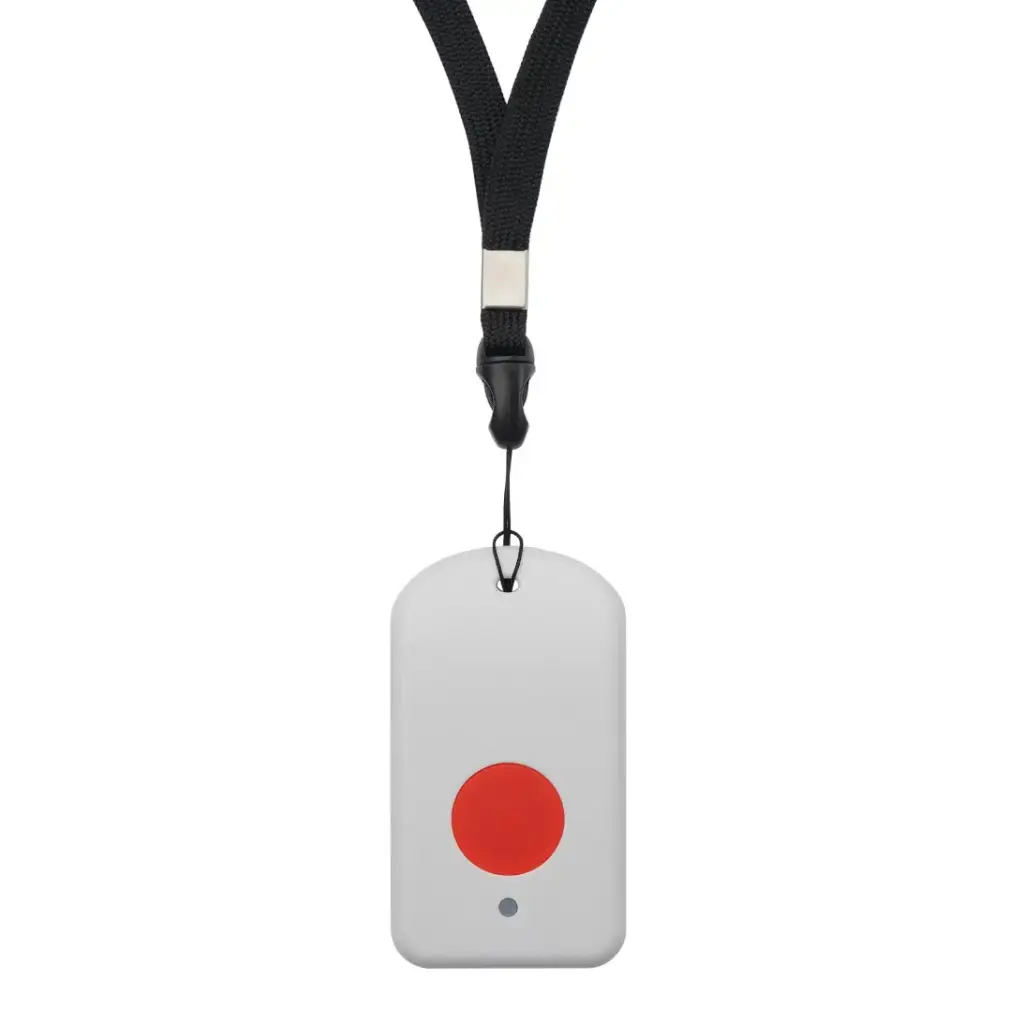

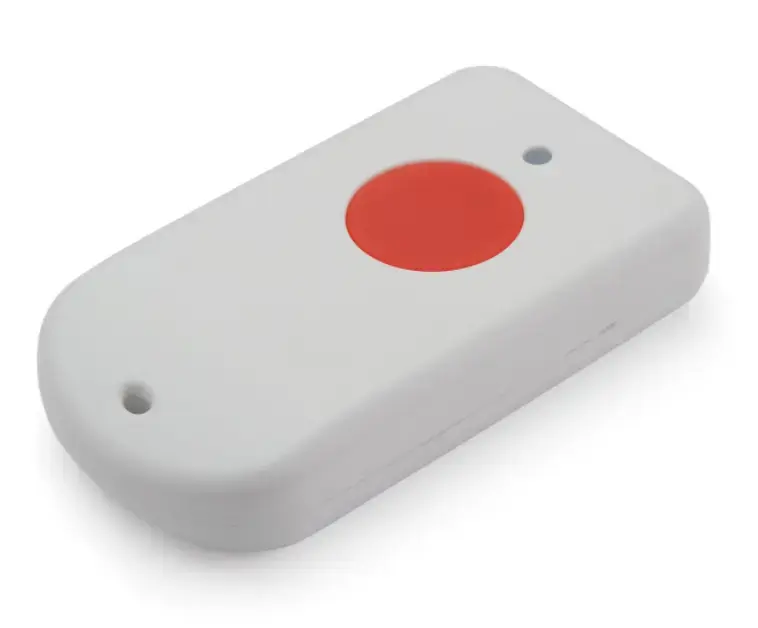

Dragino TrackerD LoRaWAN GPS BLE Tracker

https://www.aiotkart.com/web/image/product.template/17788/image_1920?unique=eeca4bb

Dragino TrackerD is an open-source LoRaWAN® GPS, BLE and WiFi tracker designed for asset tracking, logistics, personnel monitoring and IoT location applications. It combines regular and real-time GPS tracking with Bluetooth and WiFi positioning, while a built-in LIS3DH 3-axis accelerometer enables motion detection and movement monitoring. The TrackerD also includes temperature and humidity sensing, datalog functionality, power monitoring and a configurable alarm button for broader tracking scenarios. Built around the ESP32 PICO D4 and SX1276/78 LoRa chipset, it supports LoRaWAN 1.0.3 Class A communication and uses a rechargeable 1000mAh Li-ion battery. With an IN865 frequency option available, it is suitable for LoRaWAN tracking deployments in India.

₹ 6,100.00 6100.0 INR ₹ 6,100.00

₹ 6,100.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • ESP32 PICO D4 microcontroller
  • SX1276/78 LoRa wireless chip
  • Open-source hardware and software
  • Arduino IDE compatible for customization
  • GPS, WiFi, and BLE tracking
  • Built-in 3-axis accelerometer (LIS3DH)
  • Temperature and humidity sensor (GXHT3X)
  • Motion sensing capability
  • Power monitoring and charging via USB
  • 1000mAh Li-ion rechargeable battery
  • Tri-color LED and alarm button
  • Datalog support
  • Worldwide unique OTAA keys

Microcontroller

  • MCU: ESP32 PICO D4
  • Bluetooth: v4.2 BR/EDR and BLE
  • WiFi: 802.11 b/g/n (up to 150 Mbps)
  • Integrated SPI Flash: 4 MB
  • RAM: 448 KB
  • EEPROM: 520 KB
  • Clock Speed: 32 MHz

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max Link Budget: 168 dB
  • RF Output: +20 dBm / +14 dBm PA
  • RX Sensitivity: Down to -148 dBm
  • Modulation: FSK, GFSK, MSK, GMSK, LoRa, OOK
  • Packet Engine: Up to 256 bytes with CRC
  • Protocol: LoRaWAN® 1.0.3

Power & Battery

  • Battery: 1000mAh Li-ion rechargeable
  • Supply Voltage: 5V via USB or internal battery
  • Sleep Mode: 200µA
  • LoRa Transmit Mode: 125mA @ 20dBm / 44mA @ 14dBm
  • Tracking Mode: Max 38mA
  • Operating Temperature: -40°C to 60°C

Dimensions & Weight

  • Device Size: 10 x 8.5 x 4 cm
  • Weight: 111 g

Package Includes

  • 1 x TrackerD LoRaWAN® GPS/BLE Tracker
  • 1 x USB recharge & program cable

The Dragino TrackerD LoRaWAN® Tracker is suitable for:

  • Logistics and supply chain management
  • Fleet and asset tracking
  • Industrial equipment monitoring
  • Cold chain shipment tracking
  • Utility and infrastructure asset monitoring
  • Manufacturing material movement tracking
  • Campus and institutional asset management
  • Human tracking in industrial and commercial environments

You can purchase the genuine Dragino TrackerD LoRaWAN® Tracker from AIoTkart®, an Authorized Dragino Distributor in India offering secure ordering and nationwide delivery.

Yes, TrackerD supports LoRaWAN® 1.0.3 Class A protocol and operates in the 862–1020 MHz band, making it suitable for LoRaWAN® deployments across India with compatible gateways.

Yes, TrackerD is open-source and Arduino IDE compatible, allowing developers to customize firmware for specific tracking and Industrial IoT applications.

Documents

User Manual
 Download

TrackerD_Datasheet

Download

TrackerD_Firmware

Download
