Dragino TC01-LB LoRaWAN Thermocouple Converter (Exclude Thermocouple Sensor)

Price:

₹ 6,900.00
  2. Shop
  3. Dragino TC01-LB LoRaWAN Thermocouple Converter (Exclude Thermocouple Sensor)
Dragino PS-LS-TG4-C LoRaWAN Air & Water Pressure Sensor
Dragino PS-LS-TG4-C LoRaWAN Air & Water Pressure Sensor
₹ 13,915.00
₹ 13,915.00
Dragino WL03A-LB LoRaWAN Rope-Type Water Leak Sensor (With 1m Water Leak Cable)
Dragino WL03A-LB LoRaWAN Rope-Type Water Leak Sensor (With 1m Water Leak Cable)
₹ 8,400.00
₹ 8,400.00

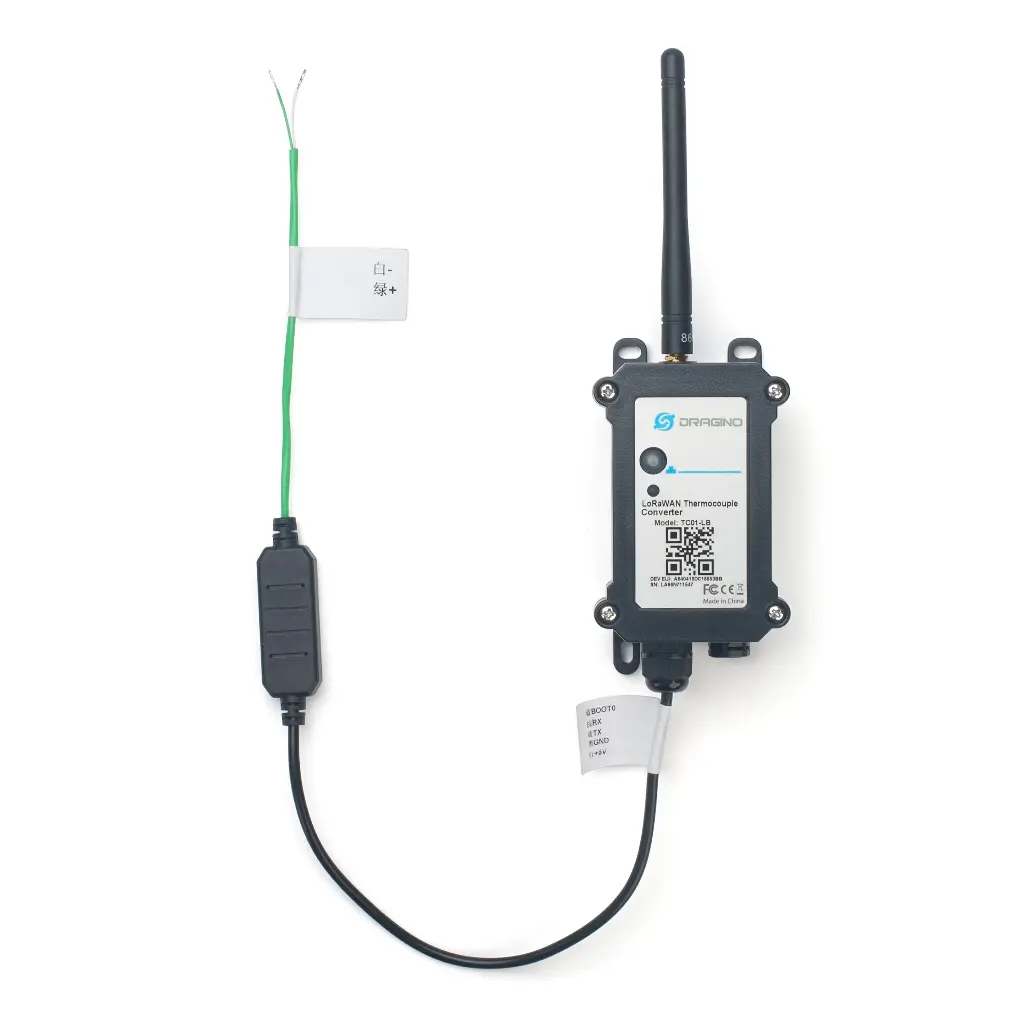

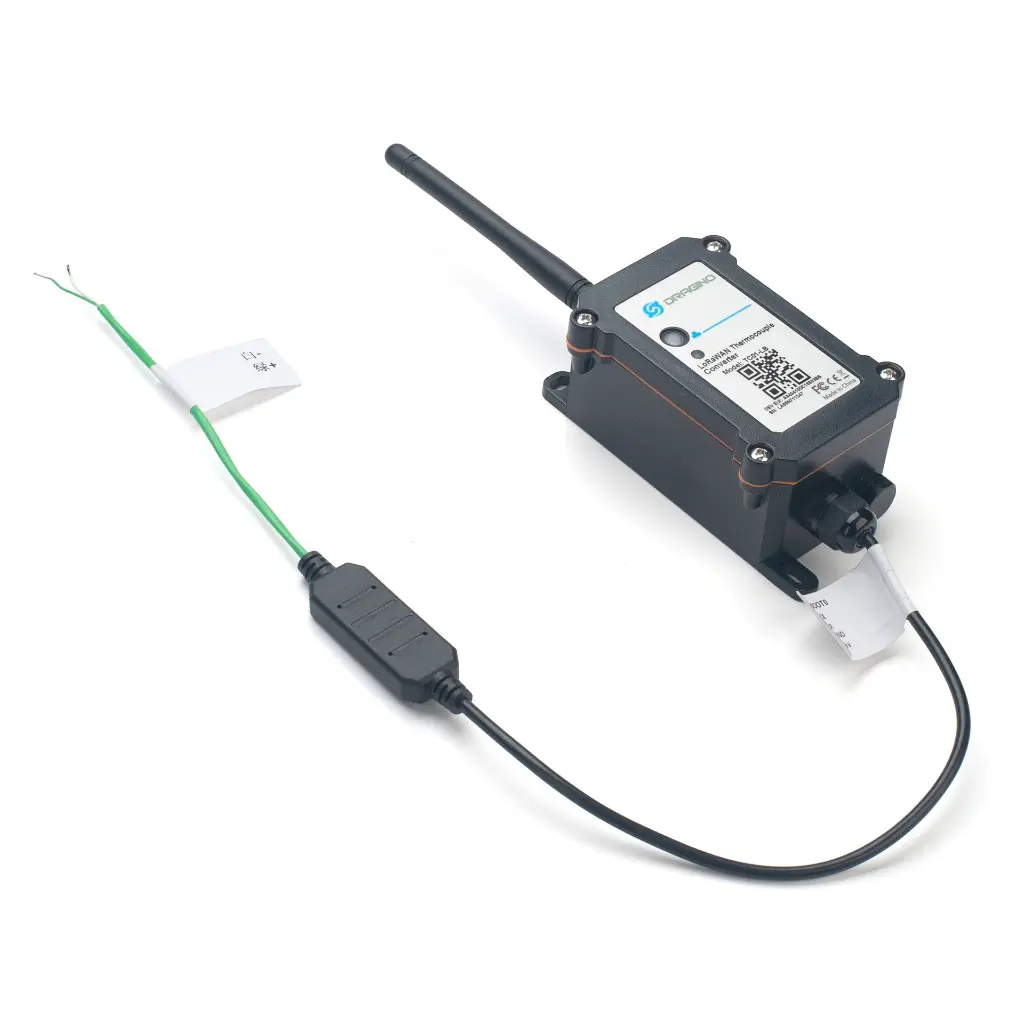

Dragino TC01-LB LoRaWAN Thermocouple Converter (Exclude Thermocouple Sensor)

https://www.aiotkart.com/web/image/product.template/17783/image_1920?unique=f3dadcf

Dragino TC01-LB is a LoRaWAN® thermocouple converter designed for wireless industrial temperature monitoring using compatible third-party thermocouple probes. It provides two open wires for connecting K, J, N, R, S, T, E or B-type thermocouples, allowing the converter to be adapted to different temperature-monitoring requirements. The TC01-LB supports LoRaWAN 1.0.3 Class A communication, configurable temperature alarms, datalog functionality, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term industrial temperature monitoring deployments in India.

₹ 6,900.00 6900.0 INR ₹ 6,900.00

₹ 6,900.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports K, J, N, R, S, T, E, B type thermocouples (TC01-LB)
  • 2-wire interface for third-party thermocouple connection
  • Long-range LoRa communication
  • Temperature alarm function
  • Datalog feature for offline data storage
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Ultra-low power consumption
  • 8500mAh Li/SOCl2 industrial battery
  • Periodic uplink and configurable downlink

Common Electrical Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

Thermocouple Support (TC01-LB)

  • 2-wire input for external thermocouple
  • Compatible with K, J, N, R, S, T, E, B types
  • Thermocouple sensor not included

LoRa Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands: IN865
  • Max +22 dBm RF output
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Battery Specifications

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

The Dragino TC01-LB LoRaWAN® Thermocouple Converter is ideal for:

  • Industrial automation and process temperature monitoring
  • Commercial infrastructure HVAC systems
  • Water systems and heat exchange monitoring
  • Cold chain temperature validation systems
  • Manufacturing plants and industrial heating equipment
  • Utilities and remote asset temperature tracking
  • Infrastructure and smart facility monitoring
  • Campuses, laboratories, and institutional research environments

You can purchase the genuine Dragino TC01-LB LoRaWAN® Thermocouple Converter from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide delivery and project support.

Yes, the TC01-LB supports LoRaWAN® 1.0.3 Class A protocol and is compatible with standard LoRaWAN® gateways operating in India, including IN865 band deployments.

No, the TC01-LB model excludes the thermocouple sensor. It provides a 2-wire interface for connecting compatible third-party thermocouples based on your industrial temperature measurement requirements.
