Dragino SW3L-LB-020 LoRaWAN Outdoor Water Flow Sensor

https://www.aiotkart.com/web/image/product.template/17777/image_1920?unique=f8cdda3

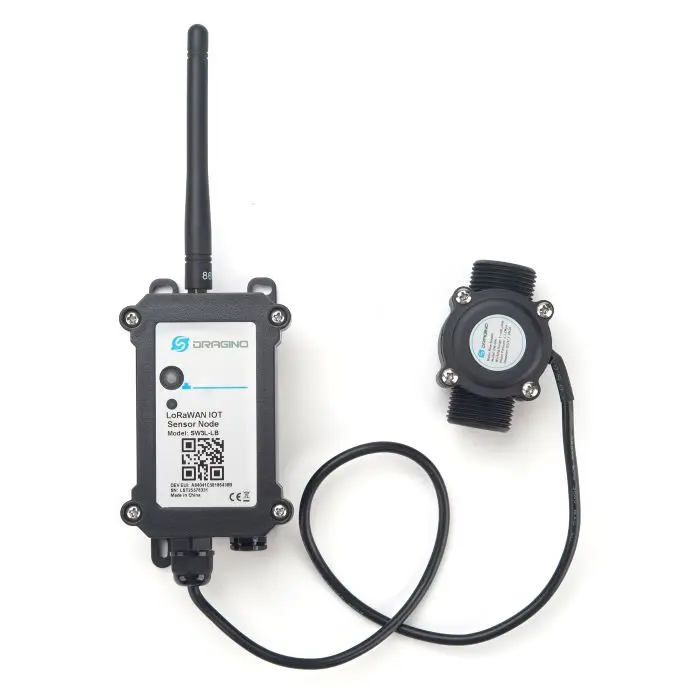

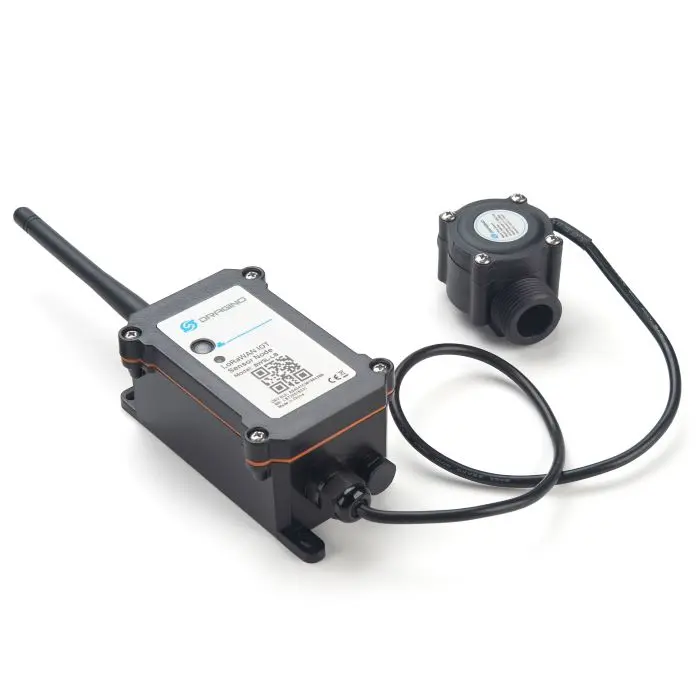

Dragino SW3L-LB-020 is a battery-powered LoRaWAN® outdoor water flow sensor designed for remote water-consumption and flow monitoring in buildings, utilities, irrigation and IoT water-management applications. The 020 variant uses the DW-020 flow sensor with a G2" / DN50 connection, a working flow range of 10–300 L/min and a pulse constant of 12 pulses per litre. The SW3L-LB can upload accumulated water-flow volume and monitor continuous-flow conditions to help identify abnormal water usage or leakage. It supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 support, it is suitable for long-term indoor and outdoor water-flow monitoring deployments in India.

₹ 8,800.00 8800.0 INR ₹ 8,800.00

₹ 8,800.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Accurate water flow volume measurement
  • Periodic uplink (default 20 minutes)
  • Water flow status detection with alarm alerts
  • Ultra-long range LoRa communication
  • Weatherproof enclosure for indoor & outdoor use
  • BLE 5.1 configuration support
  • Wireless OTA firmware update
  • Datalog feature support
  • Remote configuration via LoRaWAN® downlink
  • Available in battery (SW3L-LB) and solar version (SW3L-LS)
  • Pre-loaded unique LoRaWAN® keys for quick deployment

Electrical Characteristics

  • Supply Voltage: Built-in Battery 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

LoRaWAN® Specifications

  • Protocol: LoRaWAN® v1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High blocking immunity

Battery (SW3L-LB)

  • Type: Li/SOCl2 (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Solar Version (SW3L-LS)

  • Solar Panel + 3000mAh Li-ion battery

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Physical Details

  • Package Size: 14.5 × 10 × 5 cm
  • Weight: 290 g

The Dragino SW3L-LB-020 LoRaWAN® Flow Sensor is suitable for:

  • Industrial automation water monitoring systems
  • Commercial building water usage tracking
  • Smart water systems and utilities management
  • Cold chain facilities requiring water monitoring
  • Manufacturing plants and processing units
  • Infrastructure and public utility projects
  • Campuses & institutional facilities
  • Toilet flow monitoring and leakage detection
  • Waste water monitoring and control systems

You can purchase the Dragino SW3L-LB-020 LoRaWAN® Flow Sensor directly from AIoTkart®, the Authorized Dragino Distributor in India, offering genuine products with nationwide shipping and institutional support.

Yes, this LoRaWAN® flow sensor supports multiple frequency bands including IN865, making it fully compatible with LoRaWAN® deployments across India for industrial and commercial IoT applications.

The SW3L-LB-020 is powered by an 8500mAh Li/SOCl2 battery and is designed for long-term use up to 5 years, depending on transmission interval and environmental conditions.
