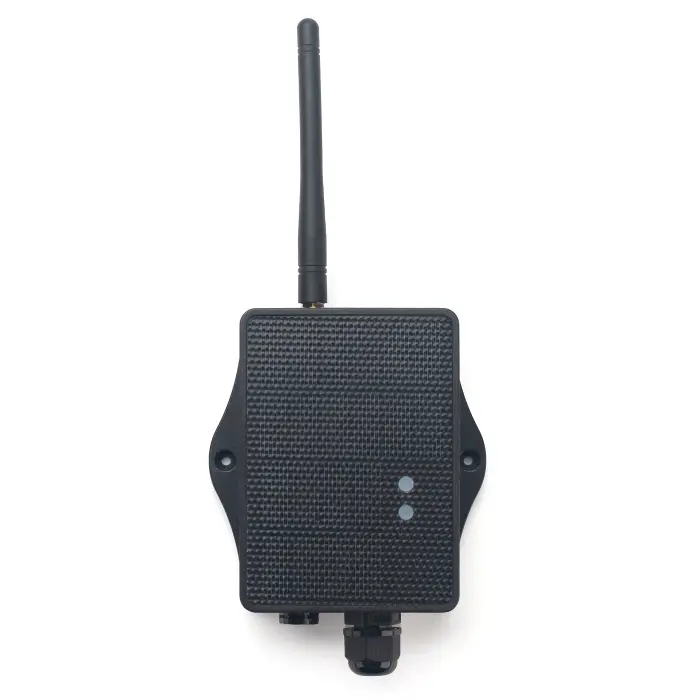

Dragino PS-LS-NA LoRaWAN Analog Sensor Interface (Without Sensor)

Price:

₹ 7,300.00
Dragino PS-LS-NA LoRaWAN Analog Sensor Interface (Without Sensor)
  2. Shop
  3. Dragino PS-LS-NA LoRaWAN Analog Sensor Interface (Without Sensor)
Dragino PS-LB-T20-E LoRaWAN Air & Water Pressure Sensor
Dragino PS-LB-T20-E LoRaWAN Air & Water Pressure Sensor
₹ 14,695.00
₹ 14,695.00
Dragino LPS8N Indoor LoRaWAN Gateway
Dragino LPS8N Indoor LoRaWAN Gateway
₹ 17,630.00
₹ 17,630.00

Dragino PS-LS-NA LoRaWAN Analog Sensor Interface (Without Sensor)

https://www.aiotkart.com/web/image/product.template/17750/image_1920?unique=790fff6

Dragino PS-LS-NA is a solar-powered LoRaWAN® analog sensor interface designed to connect conventional industrial analog sensors to long-range IoT networks. It provides one 0–20mA current input and one 0–30V voltage input, together with controllable 5V and 12V outputs for powering compatible external sensors. The PS-LS-NA supports LoRaWAN 1.0.3 Class A communication, periodic data uplinks, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 frequency support, it is suitable for remote pressure, level, flow and other industrial analog sensor monitoring applications in India.

₹ 7,300.00 7300.0 INR ₹ 7,300.00

₹ 7,300.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 1 × 0~20mA analog current input
  • 1 × 0~30V analog voltage input
  • 5V and 12V output to power external sensors
  • Converts analog signals to LoRaWAN® data
  • Ultra-low power consumption design
  • Solar panel + 3000mAh Li-ion battery
  • Monitor battery level remotely
  • BLE v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Periodic uplink with configurable interval
  • Band support IN865 (India)

Micro Controller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Power Supply

  • Supply Voltage: 2.5V ~ 3.6V
  • Power Option: Solar panel + 3000mAh Li-ion battery (PS-LS-NA)
  • Operating Temperature: -40°C to 85°C

Analog Input Specifications

Current Input (DC):

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input:

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

LoRa Specifications

  • Frequency Range (Band 1 HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity
  • Supported Bands: IN865

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm
  • 82mA @ 14dBm

Package Includes

  • 1 × PS-LS-NA LoRaWAN® Analog Sensor

The Dragino PS-LS-NA LoRaWAN® Analog Sensor is suitable for:

  • Industrial automation and process monitoring
  • Commercial infrastructure equipment monitoring
  • Water system pressure and level measurement
  • Cold chain environmental transmitters
  • Manufacturing process signal monitoring
  • Utility SCADA analog signal integration
  • Infrastructure monitoring projects
  • Campuses and institutional facilities

It enables seamless integration of 4–20mA and 0–30V industrial transmitters into LoRaWAN®-based Industrial IoT networks across India.

You can purchase the Dragino PS-LS-NA LoRaWAN® Analog Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide shipping and industrial deployment support.

Yes, the PS-LS-NA supports one 0–20mA input and one 0–30V input, allowing integration of standard industrial transmitters such as pressure, level, and flow sensors into LoRaWAN® networks.

Yes, with solar power support, long-term operation design, and IN865 band compatibility, the PS-LS-NA is ideal for outdoor Industrial LoRaWAN® projects across India.
