Dragino PS-LS-I50 LoRaWAN Water & Liquid Pressure Sensor

Price:

₹ 36,889.00
Dragino PS-LS-I50 LoRaWAN Water & Liquid Pressure Sensor
  2. Shop
  3. Dragino PS-LS-I50 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LB-I300 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LB-I300 LoRaWAN Water & Liquid Pressure Sensor
₹ 176,534.00
₹ 176,534.00
Dragino PS-LS-I150 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LS-I150 LoRaWAN Water & Liquid Pressure Sensor
₹ 89,467.00
₹ 89,467.00

Dragino PS-LS-I50 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17749/image_1920?unique=d9eceab

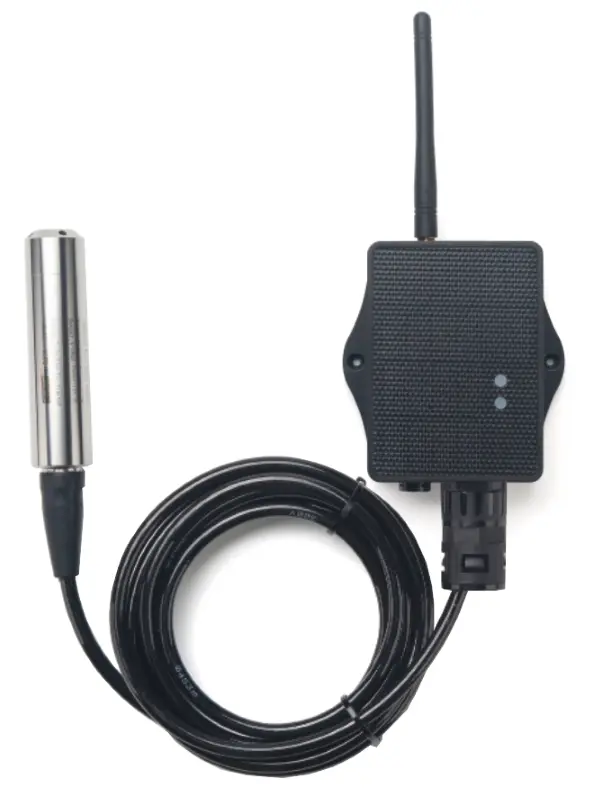

Dragino PS-LS-I50 is a solar-powered immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure and level monitoring in tanks, reservoirs, borewells and water-management systems. The I50 variant uses a 50-meter immersion probe configuration with a corresponding 0–50m water-detection range. The immersion probe features IP68 protection and 316 stainless-steel construction for submerged installations. The PS-LS-I50 supports LoRaWAN 1.0.3 Class A communication, Bluetooth configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 frequency support, it is suitable for long-term outdoor water-pressure and level-monitoring deployments in India.

₹ 36,889.00 36889.0 INR ₹ 36,889.00

₹ 36,889.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Solar powered with 3000mAh Li-ion battery
  • Designed for water, liquid, air & gas pressure monitoring
  • Thread installation type & immersion type options
  • Multiple pressure range variants available
  • Ultra-long range LoRa communication
  • High interference immunity
  • Supports IN865  band
  • Bluetooth v5.1 configuration
  • Wireless OTA firmware update
  • Periodic uplink with configurable downlink
  • Battery level monitoring

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • IN865 supported for India
  • Max RF Output: +22 dBm
  • RX Sensitivity: down to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Power System

  • Solar panel with 3000mAh Li-ion battery
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm
  • Designed for long-term outdoor deployment

The Dragino PS-LS-I50 LoRaWAN® Pressure Sensor is suitable for:

  • Industrial automation systems
  • Commercial infrastructure monitoring
  • Water tank and reservoir monitoring
  • Borewell and groundwater pressure systems
  • Cold chain liquid pressure control
  • Manufacturing process industries
  • Utilities and municipal water supply networks
  • Smart infrastructure and city projects
  • Campuses and institutional facilities

You can purchase the genuine Dragino PS-LS-I50 LoRaWAN® Water / Liquid Pressure Sensor from AIoTkart®, the authorized Dragino distributor in India with PAN-India delivery and institutional support.

Yes, the PS-LS-I50 includes a solar panel with a 3000mAh Li-ion battery and supports IN865 band, making it ideal for outdoor LoRaWAN® deployments across India for water and liquid pressure monitoring.

The PS-LS-I50 can measure water, liquid, air, and gas pressure with different pressure range options depending on application requirements.
