Dragino PS-LS-I200 LoRaWAN Water & Liquid Pressure Sensor

Price:

₹ 113,912.00
Dragino PS-LS-I200 LoRaWAN Water & Liquid Pressure Sensor
  2. Shop
  3. Dragino PS-LS-I200 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LS-I150 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LS-I150 LoRaWAN Water & Liquid Pressure Sensor
₹ 89,467.00
₹ 89,467.00
Dragino PS-LS-I250 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LS-I250 LoRaWAN Water & Liquid Pressure Sensor
₹ 150,934.00
₹ 150,934.00

Dragino PS-LS-I200 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17746/image_1920?unique=2f192fa

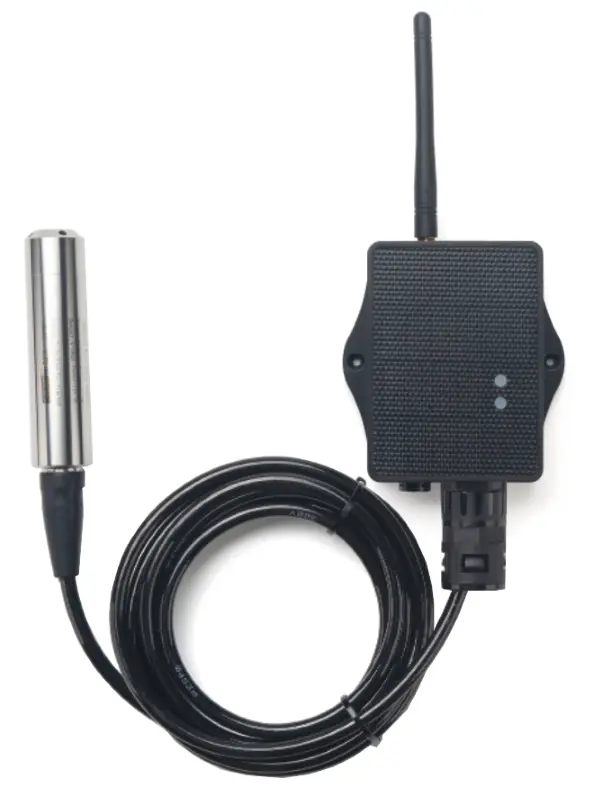

Dragino PS-LS-I200 is a solar-powered immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure and level monitoring in reservoirs, borewells, tanks and other water-management applications. The I200 variant uses a 200-meter immersion probe cable, allowing the LoRaWAN transmitter to be installed far from the submerged sensing point. The PS-LS-I200 supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration, periodic uplinks and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 support, it is suitable for long-term outdoor pressure and liquid-level monitoring deployments in India

₹ 113,912.00 113912.0 INR ₹ 113,912.00

₹ 113,912.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Solar panel + 3000mAh Li-ion battery (PS-LS variant)
  • Ultra-low power consumption design
  • Measures air, gas, water pressure & liquid levels
  • Thread installation type or immersion type options
  • Multiple pressure range variants available
  • Supports IN865  band
  • Bluetooth v5.1 for local configuration
  • Remote LoRaWAN® configuration support
  • Wireless OTA firmware upgrade
  • Periodic uplink transmission
  • Downlink for remote parameter configuration
  • Battery level monitoring

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Electrical Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • IN865 supported for India deployments
  • Maximum RF Output: +22 dBm
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Power System (PS-LS Variant)

  • Solar panel + 3000mAh Li-ion battery
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
  • Designed for up to 5 years long-term deployment (depending on configuration)

The Dragino PS-LS-I200 LoRaWAN® Pressure Sensor is ideal for:

  • Municipal water supply monitoring
  • Smart water tank & reservoir systems
  • Borewell and groundwater monitoring
  • Industrial process pressure monitoring
  • Liquid storage tank monitoring
  • Oil & gas auxiliary pressure systems
  • Smart city infrastructure projects
  • Campus and facility management systems
  • Utilities and EPC-based IoT deployments

You can purchase the genuine Dragino PS-LS-I200 from AIoTkart®, the authorized Dragino distributor in India, offering nationwide delivery and institutional supply support.

Yes. The PS-LS-I200 features a solar-powered design with a Li-ion battery and supports the IN865 band, making it ideal for outdoor LoRaWAN®-based water and liquid pressure monitoring applications.

The PS-LS-I200 is available in thread installation type and immersion type variants, allowing flexibility based on the application requirement.
